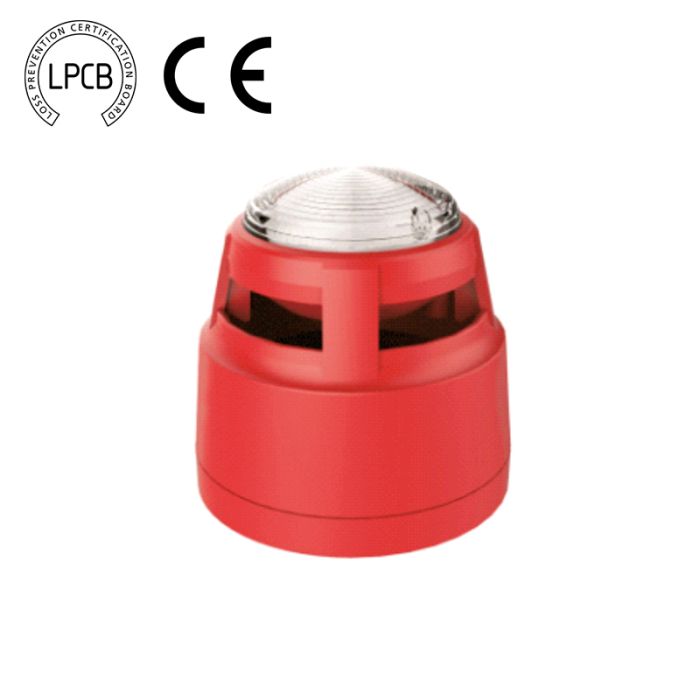

Asenware Addressable Fire Alarm Strobe Sounder
- LPCB Approved
- Meet both EN54-3 and EN54-23.
- Designed with an upper cover and a lower cover and installed on an independent base, it can be installed, debugged and maintained conveniently.
- Suitable for wall and ceiling mount application.
- Providing 16 tones.
- Highly efficient LED technology
Brand : ASENWARE
Model : AW-D306
Country of Origin: UK
AW-D306 Addressable Sounder Beacon can give audible and visual alarms after being connected to a DC24V power supply and a bus loop. It can be used with a bus-type fire alarm control panel. After receiving a start command given by the fire alarm control panel following an accident, the Sounder Beacon will begin to work. At this moment, the Sounder Beacon will give a dazzling visual alarm signal and a harsh audible alarm signal ,to remind the persons on the scene of the accident , the fact that a fire has occurred on the site ,quickly and necessity to take related evacuation measures, thus preventing the fire accident from becoming a major one.
The Sounder Beacon may be used to give audible alarms and visual alarms at the scenes of accidents.It is applicable to places like high-rise residential buildings, public places, hotels, amusement buildings, factories, shopping centers, hospitals, schools, office buildings and stock exchanges, and particularly to the places with a low visibility or the possibility of generation of smoke
Technical Specifications:
|
Loop input |
DC24V(18-28V),≤1mA(monitoring status),≤3mA(alarm status) |
|
Power input |
DC24V(20-28V),≤4mA(monitoring status),≤130mA(alarm status) |
|
Power consumption |
≤3.2W@DC24V |
|
EN54-23 Coverage |
C-3-8/W-2.4-6(coverage volume see the following figures) |
|
Flash Color and |
White, 0.5Hz |
|
Light Output |
Meets EN54-23 |
|
Sound Level |
See the following table”Sound Level Data” |
|
Ingress Protection |
IP21C |
|
Operating Temperature |
-10℃ ~ +50℃ |
|
Relative Humidity |
≤95%, non condensing |
|
Material of Lens/Body |
Flame retardant PC/ABS |
|
Dimension |
ф100mm×100.5mm( with the base) |
|
Mounting Hole Spacing |
45mm ~ 70mm |
|
Weight |
About 270g (with the base) |
|
Loop input |
DC24V(18-28V),≤1mA(monitoring status),≤3mA(alarm status) |
|
Certificate |
CE, LPCB |
