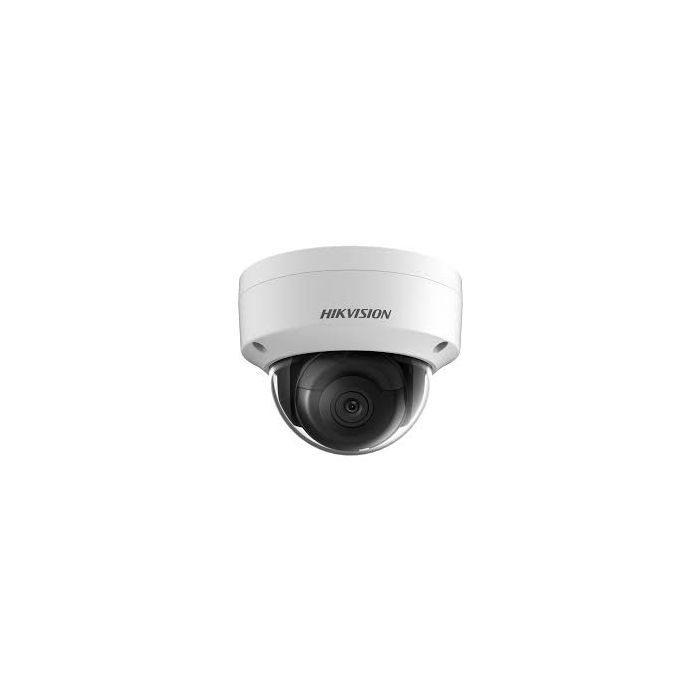

Hikvision DS-2CD2143G0-I 4MP Outdoor IP Dome Camera with Night Vision & 2.8mm Lens
GCTL sales
- Make: Hikvision
- Model code: DS-2CD2143G0-I
- Chip Inch Size: 1/3 inch
- Colour Type: Colour / Monochrome
- Resolution TVL: 4MP TVL resolution
- IP67
- Built-in micro SD/SDHC/SDXC card slot, up to128 GB
- 3-Axis adjustment
- Three streams
- 120dB WDR
- 2 Behavior analyses, and face detection
- Best CCTV Camera price in Bangladesh
- Call for Discount / Price Match policy
- Installation with expert Technician
Buy Hikvision DS-2CD2143G0-I 4MP IR IP Network Dome Camera Best price in Bangladesh- GCTL
Best price of Hikvision DS-2CD2143G0-I 4.0MP IR IP Network Dome Camera in Bangladesh .IP Dome security cameras won't cost much, it will range price from BDT 7,5000 to BDT 8,500.00 . There are some consumer-level IP cameras for Factory , Railway Station & Airport security, and most of them come at rather affordable price, We believe security matters a lot and it should be easy for everyone. That's why we select our products professional, Monitor an outdoor area with the white DS-2CD2143G0-I 4MP Network Dome Camera from Hikvision. This unit uses a 1/3" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. IR LEDs provide up to 100' of night vision. The camera's 4mm fixed lens delivers an 83° horizontal field of view. An onboard memory card slot.Offers more details over expansive areas. used in places such as customs, airport, school and hospital for inspection and quarantine.
Key Features
- 2688 x 1520 Resolution at 30 fps
- IR LEDs for Night Vision up to 100'
- 2.8mm Fixed Lens
- 103° Horizontal Field of View
The white DS-2CD2143G0-I 4MP Outdoor Network Dome Camera from Hikvision uses a 1/3" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. IR LEDs provide up to 100' of night vision. The camera's 2.8mm fixed lens delivers a 103° horizontal field of view. An onboard memory card slot accepts microSD/SDHC/SDXC cards
Specification
|
Camera |
|
|
Model |
DS-2CD2143G0-I |
|
Image Sensor |
1/3" Progressive Scan CMOS |
|
Min. Illumination |
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
|
Shutter Speed |
1/3 s to 1/100,000 s |
|
Slow Shutter |
Yes |
|
Day & Night |
IR Cut Filter |
|
Digital Noise Reduction |
3D DNR |
|
WDR |
120dB |
|
3-Axis Adjustment |
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
|
Lens |
|
|
Focal length |
2.8/4/6/8 mm |
|
Aperture |
F1.6 |
|
Focus |
Fixed |
|
FOV |
2.8 mm, horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123° 4 mm, horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99° 6 mm, horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58°8 mm, horizontal FOV: 39°, vertical FOV: 22°, diagonal FOV: 45° |
|
Lens Mount |
M12 |
|
IR |
|
|
IR Range |
Up to 30 m |
|
Wavelength |
850nm |
|
Compression Standard |
|
|
Video Compression |
Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
|
H.264 Type |
Main Profile/High Profile |
|
H.264+ |
Main stream supports |
|
H.265 Type |
Main Profile |
|
H.265+ |
Main stream supports |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
Audio Compression (-S) |
G722.1/G.711/G726/MP2L2/PCM/MP3 |
|
Audio Bit Rate (-S) |
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3) |
|
Smart Feature-set |
|
|
Smart Event |
Line crossing detection, intrusion detection, face detection |
|
Basic Event |
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
|
Linkage Method |
Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output (-S), Email |
|
Region of Interest |
1 fixed region for main stream and sub-stream |
|
Image |
|
|
Max. Resolution |
2688 × 1520 |
|
Main Stream |
50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) |
|
Sub-Stream |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
|
Third Stream |
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
|
Image Enhancement |
BLC/3D DNR/HLC |
|
Image Setting |
Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser |
|
Target Cropping |
No |
|
Day/Night Switch |
Day/Night/Auto/Schedule/Triggered by Alarm In (-S) |
|
Network |
|
|
Network Storage |
Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
|
Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
|
General Function |
Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening |
|
API |
ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
|
Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 |
|
Simultaneous Live View |
Up to 6 channels |
|
User/Host |
Up to 32 users 3 levels: Administrator, Operator and User |
|
Client |
iVMS-4200, Hik-Connect, Hik-Central |
|
Web Browser |
Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+ |
|
Interface |
|
|
Audio (-S) |
1 input (line in/mic in), 1 output (line out), terminal block, mono sound |
|
Communication Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
|
Alarm (-S) |
1 input, 1 output (max. 12 VDC, 30 mA), terminal block |
|
Video Output |
No |
|
On-board storage |
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
|
SVC |
H.264 and H.265 encoding |
|
Reset Button |
Yes |
|
Audio (-S) |
|
|
Environment Noise Filtering |
Yes |
|
Audio Sampling Rate |
8kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
|
Environment Noise Filtering |
Yes |
|
General |
|
|
Operating Conditions |
-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
|
Web Client Language |
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
|
Power Supply |
12 VDC ± 25%, Φ 5.5 mm coaxial power plug PoE (802.3af, class 3) |
|
Power Consumption and Current |
12 VDC, 0.5 A, max. 6 W PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W |
|
Protection Level |
IP67, IK10 |
|
Material |
Camera body: metal, bubble: plastic |
|
Dimensions |
Camera: Φ 111 × 82.4 mm (Φ 4.4" × 3.2") Package: 134 × 134 × 108 mm (5.3" × 5.3" × 4.3") |
|
Weight |
Camera: Approx. 610 g (1.3 lb.) With Package: Approx. 820 g (1.8 lb.) |
What do megapixels mean to your CCTV system
EasyIP 2.0plus
The model belongs to a new series, EasyIP 2.0plus, that can be placed somewhere between Easy IP 2.0 a Easy IP 3.0. The cameras of the series support modern compression methods (H.265+/H.265/H.264+/H.264), has housings like the EasyIP 3.0 series, including EXIR IR illuminators. The models with fixed or variable focal length use 1/2.8" or 1/3" image sensors with 2 MP or 4 MP resolution. The integrated image analysis functions (VCA) including face recognition, intrusion and line crossing detection, allow for applications in advanced video surveillance projects.
H.265+/H.265 video compression
