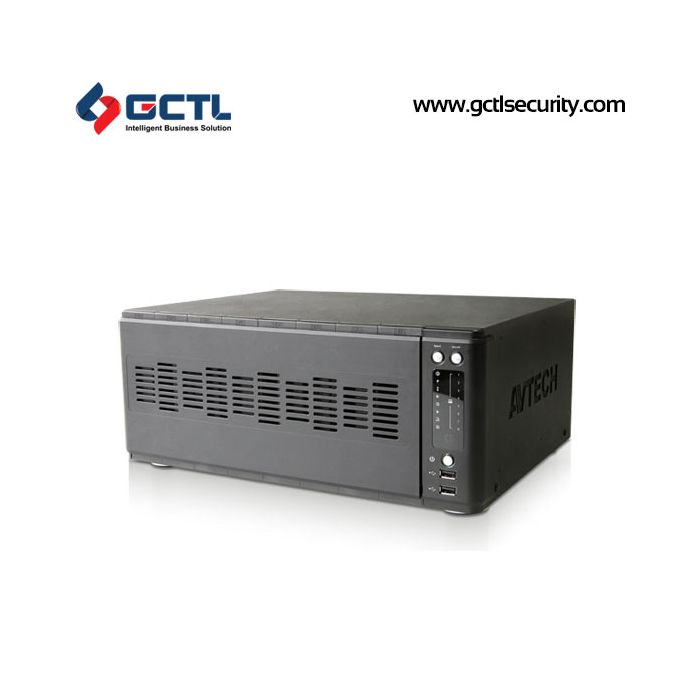

AVTECH DGD8132 8-BAY PENTABRID 32CH XVR
• AVTECH DGD8132 8-BAY PENTABRID 32CH XVR
• Brand: AVTECH
• Model: DGD8132
• Type: 32 Channel XVR
• Compression: H.265
• HDD: 8 SATA 10TB Each
• Online: Eagle eye / CMS
• Video Signal: TVI / CVI / 960 HD
• Best XVR Price in Bangladesh
• Call for Discount / Price Match policy
AVTECH DGD8132 8-BAY PENTABRID 32CH XVR
HD Compression Technology. The recording capability is significantly enhanced in addition to bandwidth for performance and efficiency compared to systems employing compression formats, saving . It allows you to personalize a collection of activities that will be run automatically after the specified event occurs. There are. Free P2P Cloud EaZy Networking. Cloud EaZy Networking accessible to connect this device to the web in 3 steps with our mobile app that is free, EagleEyes. The"Buddy" feature to share the device access permission to other men and women. Device login / out notifications reported. Push Video & Push Status - Active Event Notification using EagleEyes App. When an alarm apparatus is linked to the camera, which supports an external alarm device, push Video to send instant notifications to get an alert event. Push Status to send instant notifications such as HDD data elimination or loss.
FEATURES:
- 8-bay Storage Capacity
- Alarm Scenario Customization
- Pentabrid Video Input
- Event Pop-up / Preview
- Free P2P Cloud EaZy Networking
- Spot Monitor
- Push Video & Push Status
- Active Event Notification with Eagle Eyes App
SPECIFICATIONS:
|
Video |
||
|
Video System |
NTSC / PAL (auto detection) |
|
|
Video Compression Format |
H.265 |
|
|
Video Signal |
32 channels (TVI / CVI / Analog HD / 960H) within which IP channels are up to 2 channels. | |
|
Video Input |
32 channels (Composite video signal 1 Vp-p 75Ω BNC) |
|
|
Video Input Interface |
Analog Mode |
Composite video signal 1 Vp-p 75Ω BNC |
|
IP Mode |
Ethernet, 10/100 Base-T |
|
|
Video Output |
BNC |
YES (Spot Monitor supported) |
|
VGA |
YES (1080P display / Spot Monitor supported) |
|
|
HDMI |
HDMI-1 (4K2K display) / HDMI-2 (1080P display / Spot Monitor supported) | |
|
Video Resolution |
Analog Mode |
1080P / 720P / QHD / 960H / Frame / Field / CIF |
|
IP Mode |
1920 x 1080 / 1280 x 720 / 640 x 480 / 320 x 240 |
|
|
Record & Backup |
||
|
Max. Recording Rate |
Analog Mode IP Mode (2channels)
|
Up to 384 IPS @ 1920 x 1080 Up to 60 IPS @ 1920 x 1080 (2 channels) |
|
Recording Mode |
|
Manual / Timer / Motion / Alarm / Remote |
|
Playback Channel |
|
16CH |
|
Quick Search |
|
Time / Motion / Alarm search mode |
|
Backup Device |
|
USB 3.0 drive / Network |
|
Regular Backup |
|
YES (USB hard drive or FTP) |
|
Audio |
||
|
Audio Input |
16 |
|
|
Audio Output |
2 (Mono) |
|
|
External I/O |
||
|
RS485 |
YES |
|
|
Alarm Input |
8 |
|
|
Alarm Output |
1 |
|
|
Alarm Scenario |
YES |
|
|
General |
||
|
Hard Disk Storage |
14TB SATA HDD x 3 |
|
|
SATA Interface |
YES |
|
|
eSATA Interface |
YES |
|
|
Image Quality Setting |
SUPER BEST / BEST / HIGH / NORMAL |
|
|
USB Mouse Control |
YES |
|
|
Motion Detection Area |
16 × 12 grids per channel |
|
|
Motion Detection Sensitivity |
3 adjustable parameters for accurate detection |
|
|
Event Notification |
Push Video / Push Status / FTP / E-Mail |
|
|
Event Pop-up & Preview |
YES |
|
|
Scenario Setup |
YES |
|
|
Picture Zoom |
2X digital zoom |
|
|
PTZ Control |
YES |
|
|
Key Lock (Password Protection) |
YES |
|
|
User Level |
4 user levels for different access privilege |
|
|
Video Loss Detection |
YES |
|
|
Camera Title |
Supports up to 25 letters |
|
|
Video Adjustable |
Hue / Saturation / Contrast / Brightness |
|
|
Date Display Format |
YY/MM/DD, DD/MM/YY & MM/DD/YY |
|
|
Daylight Saving |
YES |
|
|
Power Source |
19V/4.7A |
|
|
Operating Temperature |
10ºC ~ 40ºC (50ºF ~104ºF) |
|
|
Operating Humidity |
10% ~ 85% |
|
|
Dimensions(mm)** |
358 x 267 x 152 |
|
|
Net Weight (kg) |
5.9 |
|
|
Network |
||
|
Ethernet |
10/100 Base-T. Supports remote control and live view via Ethernet |
|
|
Network |
Protocol TCP/IP, PPPOE, DHCP and DDNS |
|
|
Remote Surveillance from PC |
||
|
Compatible Operating System |
Windows & MAC |
|
|
Compatible Program |
Windows Edge, Microsoft Internet Explorer, Google Chrome, Mozilla Firefox & Safari |
|
|
|
CMS Lite: 32CH central management software for Windows OS |
|
|
Max. online users |
36 |
|
|
Web Transmitting Compression Format |
H.265 |
|
|
Remote Live Display |
9CH (Selectable) |
|
|
Network Live Audio |
YES |
|
|
Remote Event Download & Playback |
YES |
|
|
Mobile Surveillance |
||
|
App |
EagleEyes |
|
|
Compatible Devices |
iOS & Android devices |
|
|
Push Video |
YES (16 channel) |
|
|
Push Status |
YES |
|
|
Others |
||
|
EaZy Networking |
YES |
|
|
Alarm Scenario Setup |
YES (4 channels in analog mode) |
|
|
Spot Monitor Support |
9CH (Selectable) |
|
|
DCCS Support |
YES |
|
|
AVTECH Free DDNS service |
YES |
|
|
Privacy Mask |
YES |
|
|
Multiplex Operation |
Live display / record / playback / backup / network operations |
|
|
System Recovery System |
auto recovery after power failure |
|
|
Optional Peripherals |
HDMI Matrix (HDM02) / USB Joystick (AVX102) |
|
|
Certification |
CE |
|
