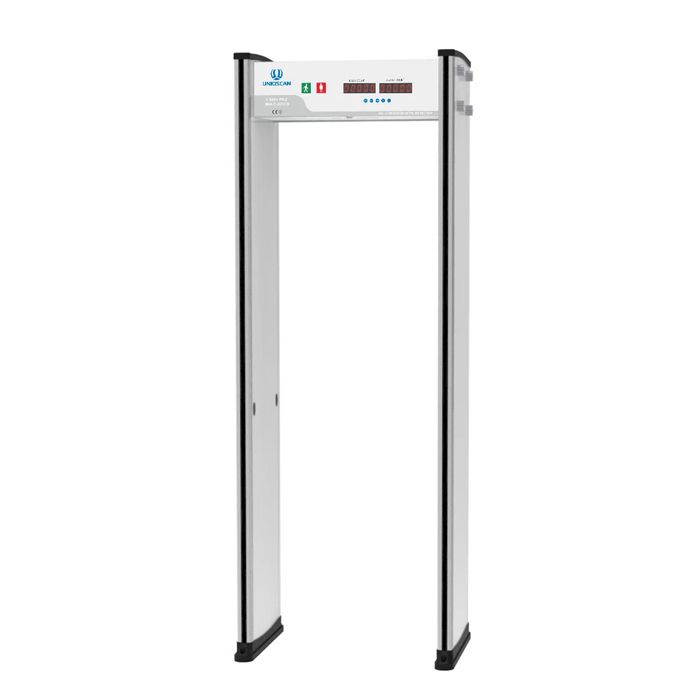

UNIQSCAN UB500-Pro 12 Zone Walk Through Metal Detector
UNIQSCAN UB500-Pro 12 Zone Walk Through Metal Detector
Brand: UNIQSCAN
Model: UB500-Pro
Country of Origin: China
Feature Highlights:
Zone Count: 12 Zones
Specialty: 4 hours Battery Backup
Usage: Security Check
Certification: CE/ROHS/ISO9001
Type: MULTIZONE
Detector: Common Metal
UNIQSCAN UB500-Pro 12 Zone Walk Through Metal Detector
Elevate your safety standards with the UniqScan UB500-Pro Walk Through Metal Detector. This professional-grade walk through metal detector is the go-to choice for institutions such as airports, schools, and event spaces globally, thanks to its proven effectiveness and steadfast reliability. The UB500-Pro Walk Through Metal Detector comes with an innovative 6-zone detection system, enabling precise identification of concealed metal objects, large or small. The double-sided LED display enhances usability and efficiency, particularly in settings with high footfall. What sets the UB500-Pro apart in the realm of walk through metal detectors is its variable sensitivity settings, offering adaptability for a wide range of security requirements. The sleek design and simple assembly process allow it to be a seamless addition to any location, regardless of space constraints. Meeting all significant safety standards, including EMC, ROHS, and ISO, the UB500-Pro Walk Through Metal Detector delivers consistent performance and peace of mind. Opt for the UniqScan UB500-Pro for a walk through metal detector that combines accuracy, functionality and user-friendliness.
Buy Archway Gate Walk Through Metal Detector in Bangladesh from GCTL, the leading importer and supplier. Ensure maximum security with advanced multi-zone detection, high sensitivity and user-friendly operation. Get the best price, fast delivery and full warranty for your security solutions.
Technical Parameters:
| Zone Count | 12 Zone |
| Vertical Dimension | 2200 x800 x 580mm |
| Vertical Dimension of Passage | 2010 x 700 x 500mm |
| Net Weight | 70KG |
| Gross Weight | 82KG |
| Operating voltage | AC85V~264V/50Hz |
| Power Dissipation | ≦10W low power consumption |
| Operating frequency | 5.9K-8.6KHz (adjustable) |
| Working Environment Temperatute | -20oC ~ 45oC |
| Maximum Sensitivity | >100 Levels |
| Zone's Sensitivity | 0-999, 1000 levels (adjustable) |
| Weatherproofing | IP65 |
| Infrared passing speed | 60/min |
| Visual Displays | Pass count & Alarm count (5 Digit LED Display) |
| Multi-Unit Synchronization | Manual |
- Easy assembly: designed with only 2 pieces of cables and 8 screws, simply-to-follow instructions
- Alarm strength indicator on the control panel; Password protection, only the authorized person can operate.
- Sound & LED alarm: Both Side LED indicator
- 12 zones, Sensitivity adjustable: Each zone has 100 sensitivity level
- Program Self-diagnostic when power on,
- no need initial or periodic calibration;
- Modularization design, easy for maintenance and replacement
- Using high-density fireproof material;
- Program Self-diagnostic when power on, no need initial or periodic calibration
- Harmless to the human body: is harmless
- with heart pacemakers, pregnant women, magnetic floppy, recording tapes, etc.
We own all of the intellectual property rights (IPR) to its core technologies and have an experienced engineering team. Our excellent technical development capacity supports us are able to have continuously new production lines. The Uniqscan metal detector is a leader in global safe drilling and handheld metal detection products and training. From the Olympics to international airports around the world, Uniqscan has reliable experience, expertise, and reliable products to make your facilities or events safer.
