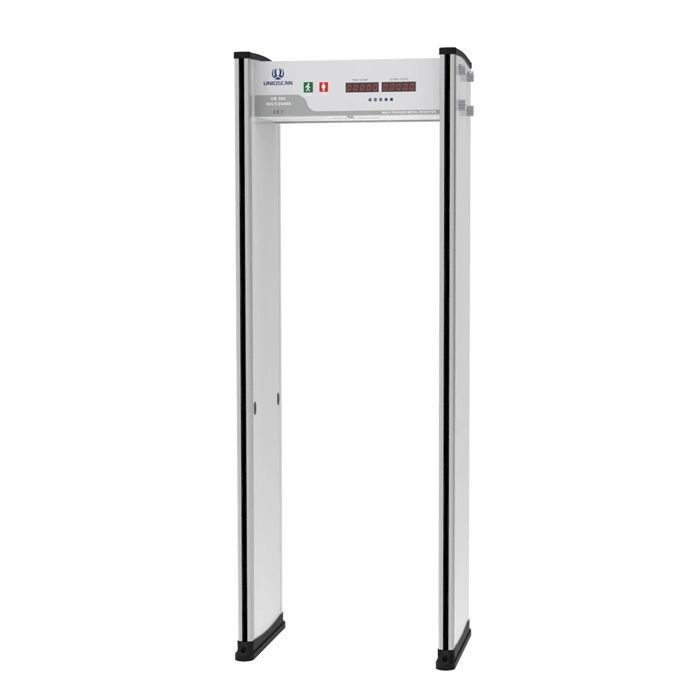

UNIQSCAN UB500 6 Zone Walk Through Metal Detector
UNIQSCAN UB500 6 Zone Walk Through Metal Detector
Brand: UNIQSCAN
Model: UB500
Country of Origin: China
Feature Highlights:
Zone Count: 6 Zones
Specialty: 4 hours Battery Backup
Usage: Security Check
Certification: CE/ROHS/ISO9001
Type: MULTIZONE
Detector: Common Metal
UNIQSCAN UB500 6 Zone Walk Through Metal Detector
UniqScan UB500 walkthrough metal detector is a highly versatile metal detection case door, with 18 zone and adjustable sensitivity making it widely used in airports, stations, shopping malls, and other security inspection places. this product. The detection structure uses an electromagnetic field to detect the metal objects in the body. It consists of a host, a high-frequency signal generator, a signal receiver, and an infrared sensor. It uses sound and light to alarm indicate that the metal objects in the body exceed a certain amount. It is used for security inspection. It can speed up the detection efficiency during the project.
Buy Archway Gate Walk Through Metal Detector in Bangladesh from GCTL, the leading importer and supplier. Ensure maximum security with advanced multi-zone detection, high sensitivity and user-friendly operation. Get the best price, fast delivery and full warranty for your security solutions.
Technical Parameters:
| Zone Count | 6 Zone |
| Vertical Dimension | 2200 x800 x 580mm |
| Vertical Dimension of Passage | 2010 x 700 x 500mm |
| Net Weight | 70KG |
| Gross Weight | 82KG |
| Operating voltage | AC85V~264V/50Hz |
| Power Dissipation | ≦10W low power consumption |
| Operating frequency | 5.9K-8.6KHz (adjustable) |
| Working Environment Temperatute | -20oC ~ 45oC |
| Maximum Sensitivity | >100 Levels |
| Zone's Sensitivity | 0-999, 1000 levels (adjustable) |
| Weatherproofing | IP65 |
| Infrared passing speed | 60/min |
| Visual Displays | Pass count & Alarm count (5 Digit LED Display) |
| Multi-Unit Synchronization | Manual |
The UB-500’s Access Control Panel is designed for use by authorized personnel with specific, multi-level security with password protection, only the authorized person can operate； Panel display function digital display, counting the number of passing and the number of alarms.
- Easy assembly: designed with only 2 pieces of cables and 8 screws, simply-to-follow instructions
- Alarm strength indicator on the control panel; Password protection, only the authorized person can operate.
- Sound & LED alarm: Both Side LED indicator
- 6 zones, Sensitivity adjustable: Each zone has 100 sensitivity level
- 18 zones, Sensitivity adjustable: Each zone has 100 sensitivity level
- Program Self-diagnostic when power on,
- no need initial or periodic calibration;
- Modularization design, easy for maintenance and replacement
- Using high-density fireproof material;
- Program Self-diagnostic when power on, no need initial or periodic calibration
- Harmless to the human body: is harmless
- with heart pacemakers, pregnant women, magnetic floppy, recording tapes, etc.
We own all of the intellectual property rights (IPR) to its core technologies and have an experienced engineering team. Our excellent technical development capacity supports us are able to have continuously new production lines. The Uniqscan metal detector is a leader in global safe drilling and handheld metal detection products and training. From the Olympics to international airports around the world, Uniqscan has reliable experience, expertise, and reliable products to make your facilities or events safer.
