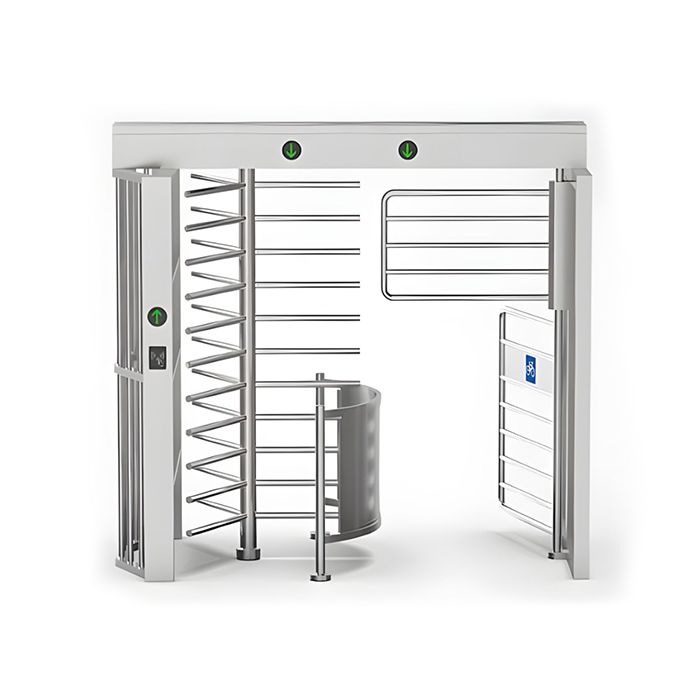

VARITO VFHT-DS409 Full Height Turnstile With Wheelchair Gate
VARITO VFHT-DS409 Full Height Turnstile With Wheelchair Gate
Brand: VARITO
Model: VFHT-DS409
Country of Origin: Germany
Country of Manufacture: China
Feature Highlights:
Gate reaction time : 5s
Throughput Rate: 25~30p/m
Material : SUS 304 Stainless Steel
Passage Width: 2 lanes, 670mm/lane
Product Dimension : 2450*1260*2300mm
Warranty: One (1) Year Official Service
VARITO VFHT-DS409 Full Height Turnstile With Wheelchair Gate
VARITO VFHT-DS409 Full Height Turnstile with Wheelchair Gate is the most obvious feature is the turnstile with wheelchair gate for disabled access. Which is provides a high safety and convenient access solution for disabled people.
It’s idea for both indoor and outdoor, as whole body is made of finished and brushed stainless steel, which is robust, rigid, anti-rust, waterproof and durable.
There are LED lights at front on both top cover and body side to indicate entry is accepted or denied.
The pedestrian passing width is 600mm, and the wheelchair gate passing width is 900mm,
It has standard relay signal, which can be integrated with any type of external device solution. (Display, Counter, Reader, Face recognition, Push button, Card collector, RFID Wristband Collector, Coin insert, Barcode/QR reader, Wheel)
Technical Parameters:
| Parameters | Details |
| Model No. | VFHT-DS409 |
| Framework Material | 304 Full Stainless Steel |
| Dimension | 2450 x 1260 x 2300mm |
| Weight | 380kg/pcs |
| Passage Width | 600mm/lane (for pedestrian), 900mm/lane (for wheelchair) |
| Arm Support | 120° rotors with 3 sections or 90° rotors with 4 sections |
| Passing Direction | Single directional / Bi-directional |
| MCBF | 10 million |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 40W |
| Operation Temperature | -15 °C - 60 °C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Working Environment | Indoor / Outdoor |
| Flow Rate | 25~30 people per minute |
| LED Indicator | Yes |
| Emergency | Automatic arm open when power off |
| Communication | Dry contact, Relay signal, RS485 |
| IP Rating | IP56 |
Full Height Turnstile Safety Features:
1. Long-life performance, high operation dependability and fast response
2. The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when running
3. Single directional or Bi-directional is selectable
4. Automatic reset function: turnstile arm will lock automatically within 5s (can be setting) ifpassenger delay to entry
5. Anti-tailing function: only one person passes at one time
6. When power is off, arms will open automatically, which is complying with fire safety requirements
7. LED indicator (Red × means no entry, Green → means entry)
8. Structure of trunking to contain cable tidy inside the case
9. Structure of ring cover on top and bottom to beautify it
10. Override key function: when power failure, support to control open and close by manual
11. Easy to install and maintain
Germany Computer & Telecom Ltd. offer a comprehensive Full Height Turnstile installation and maintenance service. We are committed to providing the highest quality service and support for our products.
