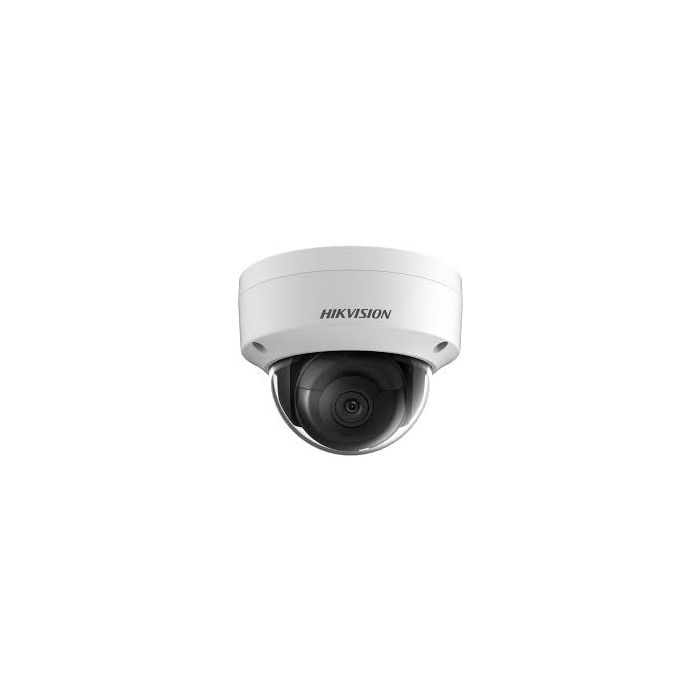

Hikvision DS-2CD2143G0-IU 4MP EXIR WDR Fixed Dome Network Camera with Build-in Mic
GCTL sales
- Make: Hikvision
- Model code: DS-2CD2143G0-IU
- 4MP resolution
- Built-In Microphone
- Range of focal lengths available
- H.264, H.264+, H.265, H.265+
- 120dB wide dynamic range
- 3D digital noise reduction technology
- 30m IR range
- Micro SD card slot, up to 128GB
- IP67 rated weatherproof housing
- 3-axis adjustment
- Best CCTV Camera price in Bangladesh
- Call for Discount / Price Match policy
- Installation with expert Technician
Buy Hikvision DS-2CD2143G0-IU 4MP IR IP Network Dome Camera Best price in Bangladesh- GCTL
Best price of Hikvision DS-2CD2143G0-IU 4.0MP IR IP Network Dome Camera in Bangladesh .IP Dome security cameras won't cost much, it will range price from BDT8,5000 to BDT9,500.00 . There are some consumer-level IP cameras for Factory , Railway Station & Airport security, and most of them come at rather affordable price, We believe security matters a lot and it should be easy for everyone. The Hawk Eye Dome Camera is the perfect camera for indoor and outdoor home and business usage – featuring a high-resolution 4MP sensor with True WDR and a 2.8mm lens, the camera will capture a clear, wide image in any lighting situation. . An onboard memory card slot.Offers more details over expansive areas. used in places such as customs, airport, school and hospital for inspection and quarantine.
Key Features
- 1/3" Progressive Scan CMOS
- 2688 × 1520@30fps
- H.265, H.265+, H.264, H.264+
- Three streams
- 120dB WDR
- IR range: Up to 30 m
- IP66, IK10
- Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
- 3-Axis adjustment
- Built-in microphone
The white DS-2CD2143G0-IU 4MP Outdoor Network Dome Camera from Hikvision uses a 1/3" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. IR LEDs provide up to 100' of night vision. The camera's 2.8mm fixed lens delivers a 103° horizontal field of view. Built-in microphone for real-time audio security
Specification
|
Camera |
|
|
Model |
DS-2CD2143G0-IU |
|
Image Sensor |
1/3" Progressive Scan CMOS |
|
Min. Illumination |
Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
|
Shutter Speed |
1/3 s to 1/100,000 s |
|
Slow Shutter |
Yes |
|
Day & Night |
IR Cut Filter |
|
WDR |
120 dB |
|
Angle Adjustment |
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
|
Lens |
|
|
Lens Type |
Fixed lens, 2.8/4/6 mm |
|
Aperture |
F1.6 |
|
FOV |
2.8 mm: horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123° 4 mm: horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99° 6 mm: horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58° |
|
Lens Mount |
M12 |
|
Illuminator |
|
|
IR Range |
Up to 30 m |
|
Wavelength |
850 nm |
|
Video |
|
|
Max. Resolution |
2688 × 1520 |
|
Main Stream |
50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) |
|
Sub Stream |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
|
Third Stream |
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
|
Video Compression |
Main stream/third stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
|
H.264 Type |
Main Profile/High Profile |
|
H.264+ |
Main stream supports |
|
H.265 Type |
Main Profile |
|
H.265+ |
Main stream supports |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
Scalable Video Coding (SVC) |
H.264 and H.265 encoding support |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/MP3 |
|
Audio Bit Rate |
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps- 320Kbps(MP3) |
|
Environment Noise Filtering |
Yes |
|
Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
|
Smart Feature-Set |
|
|
Smart Event |
Line crossing detection, intrusion detection and face detection |
|
Basic Event |
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
|
Face Detection |
Yes |
|
Linkage Method |
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture |
|
Region of Interest |
1 fixed region for main stream and sub-stream |
|
Image |
|
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Image Setting |
Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser |
|
Day/Night Switch |
Day/Night/Auto/Schedule |
|
Network |
|
|
Network Storage |
microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR |
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
|
API |
ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
|
Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5) , watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 |
|
Simultaneous Live View |
Up to 6 channels |
|
User/Host |
Up to 32 users, 3 levels: administrator, operator and user |
|
Client |
iVMS-4200, Hik-Connect, Hik-Central |
|
Web Browser |
Plug-in required live view: IE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome 45.0+, Firefox52.0+ |
|
Interface |
|
|
Communication Interface |
1 RJ45 100M self-adaptive Ethernet port |
|
Audio |
1 audio input (built-in microphone) |
|
On-board storage |
Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
|
Approval |
|
|
EMC |
47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015 |
|
Safety |
UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1 |
|
Chemistry |
2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006 |
|
Protection |
Ingress protection: IK10 (IEC 62262:2002), IP66 (IEC 60529-2013) |
|
General |
|
|
Firmware Version |
5.5.84 |
|
Web Client Language |
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
|
General Function |
Anti-flicker, three streams, heartbeat, mirror, 4 regions of privacy mask |
|
Reset |
Reset via reset button on camera body, web browser and client software |
|
Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) |
|
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) |
|
Power Supply |
12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 3) |
|
Power Consumption and Current |
12 VDC, 0.5 A, max. 6 W; PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W |
|
Material |
Camera body: metal, bubble: plastic |
|
Dimensions |
Camera: Φ121 × 92 mm (Φ4.8" × 3.6") With package: 134 × 134 × 108 mm (5.3" × 5.3" × 4.3") |
|
Weight |
Camera: Approx. 570 g (1.3 lb.) With package: Approx. 950 g (2.1 lb.) |
What do megapixels mean to your CCTV system
EasyIP 2.0plus
The model belongs to a new series, EasyIP 2.0plus, that can be placed somewhere between Easy IP 2.0 a Easy IP 3.0. The cameras of the series support modern compression methods (H.265+/H.265/H.264+/H.264), has housings like the EasyIP 3.0 series, including EXIR IR illuminators. The models with fixed or variable focal length use 1/2.8" or 1/3" image sensors with 2 MP or 4 MP resolution. The integrated image analysis functions (VCA) including face recognition, intrusion and line crossing detection, allow for applications in advanced video surveillance projects.
H.265+/H.265 video compression
Germany Computer and Telecom Ltd-GCTL the professional CCTV Surveillance Camera Supplier and Installation Company in Bangladesh
We are Germany Computer and Telecom Ltd-(GCTL) is one of the best CCTV Surveillance Camera Importer, Supplier, Dealer, Distributor, Wholesaler Company in Bangladesh. If you are looking for reliable CCTV Surveillance Camera installation in Bangladesh, why not get the benefits to hire professionals from GCTL Technician.
We cover a wide range of CCTV Surveillance Camera and troubleshoot issues with your Office, Banks, Schools, Factories, construction sides and other Industries. We visit, design, draw, and install CCTV Surveillance Camera all over Bangladesh, especially Dhaka, Chittagong, Rajshahi, Khulna, Sylhet, Barishal, and other Cities.
As a reputable and experienced CCTV Surveillance Camera installer & supplier, we can provide CCTV Surveillance Camera to suit any Office, Banks, Schools, factories, construction sides and other industries within your budget whether you're looking for a device CCTV Surveillance Camera for an Office, Banks, Schools, Factories, construction sides and other sectors. We will design, supply, and install CCTV Surveillance Camera to match your entire requirement entirely full fill. We will give you thoroughly free, to monitor customers without-obligation survey and written quotation with guarantee.
Best price of Hikvision Network IP Camera in Bangladesh
IP cameras won't cost much if you choose the correct brand. There are some consumer-level starlight cameras with improved day-night vision designed for Office , Factory & home security, and most of them come at rather affordable price,
We believe security matters a lot and it should be easy for everyone. That's why we select our products professional, reliable, affordable and modern style
|
|
||
|
We successfully installed Survillance System to Many Banks and corporate in Bangladesh, some of the projects are: |
||
Banks |
Corporates |
|
|
Bank Asia Ltd. : CCTV camera System more than 100 Branches BRAC Bank Ltd. : CCTV camera System : more than 40 Branches NCC Bank Ltd. : CCTV & IP camera System For 35 ATM booths, CCTV camera System : more than 30 Branches NRB Bank Ltd. : CCTV System Setup to NRB Bank Head Office and more than 23 Branches Mutual Trust Bank Ltd. : CCTV System Setup more than 32 Branches Woori Bank Bangladesh Ltd. One Bank Ltd. Shahjalal Islami Bank Ltd. Meghna Bank Ltd. Etc Modhumoti Bank Ltd. … other projects are going on. |
bKash Ltd. : CCTV & IP camera System For bKash Head office, CCTV For bKash 16 Branches Sanofi Bangladesh ltd. : IP Camera System, Setup to Tongi Factory Seamark Ltd. : CCTVSystem to Chittagong Factoy Dhaka Chamber of Commerce Bangladesh jute Research Institued Department of Social Services Grameen Shamogree ACI ltd. Keya Group Mirpur Cantonment Public School & College Parkscene Bangladesh Limited Fariha Knit Tex Ltd. etc. … other projects are going on. |
|
| Call for Price | No |
|---|---|
| Brand | Hikvision |
| case_type | Dome |
| image_sensor | CMOS |
| ir_distance | 21-30 Meter |
| Lens Type | Fixed Lens |
| local_storage | Micro SD |
| power_supply | POE |
| resolution | 4 Mega Pixel |
| wifi | N/A |
