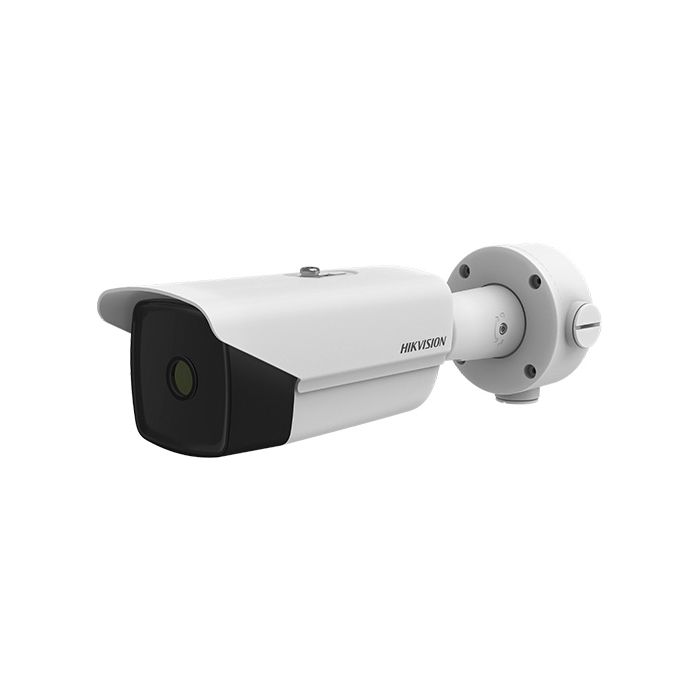

Hikvision DS-2TD2617B-3/PA Thermographic Fever-Screening Camera
Hikvision Thermographic Fever-Screening Camera
Model: DS-2TD2617B-3/PA
Image Sensor: VOx uncooled FPA
Resolution: 160 × 120
Pixel Interval: 17 µm
Response Waveband: 8 µm – 14 µm
NETD: ≤ 40 mK (@ 25 °C
Thermal Lens: 3.1 mm focal length
Hikvision DS-2TD2617B-3/PA Thermographic Fever-Screening Camera
The Hikvision DS-2TD2617B-3/PA is a high-precision thermographic bullet camera designed for non-contact body-temperature screening in busy public spaces. Equipped with a 160 × 120 VOx thermal sensor, 4 MP optical module and smart alarm functions, it delivers real-time elevated-temperature detection, ideal for airports, hospitals, schools and high-traffic facilities.
Key Features
-
High-sensitivity thermal channel: 160 × 120 resolution with VOx uncooled focal plane arrays and NETD ≤ 40 mK.
-
Precise temperature screening: range 30 °C to 45 °C with accuracy ±0.5 °C under specified conditions.
-
Smart exception-alarm function: triggers audio alert and visual alert when elevated temperature is detected.
-
Bi-spectrum design: integrates thermal and optical channels, supports image fusion and picture-in-picture (PIP) for rich situational awareness.
-
4 MP optical module: 2688 × 1520 resolution, minimum illumination down to 0.0089 Lux (color) / 0.0018 Lux (B/W).
-
Wide field-of-view: thermal FOV approx. 50° × 37.2°, optical FOV approx. 84° × 44.8°.
-
Compact bullet housing: ideal for installation in indoor/outdoor screening zones; weather‐protected design (IP66 rated in many models).
-
Network ready: supports H.265/H.264 video compression, IPv4/IPv6, ONVIF and remote monitoring integration.
Technical Specifications
Note: This device is not a medical-device. It is intended for elevated body-surface temperature screening only and should be used with other methods for confirmed diagnosis.
| Call for Price | No |
|---|---|
| Brand | Hikvision |
