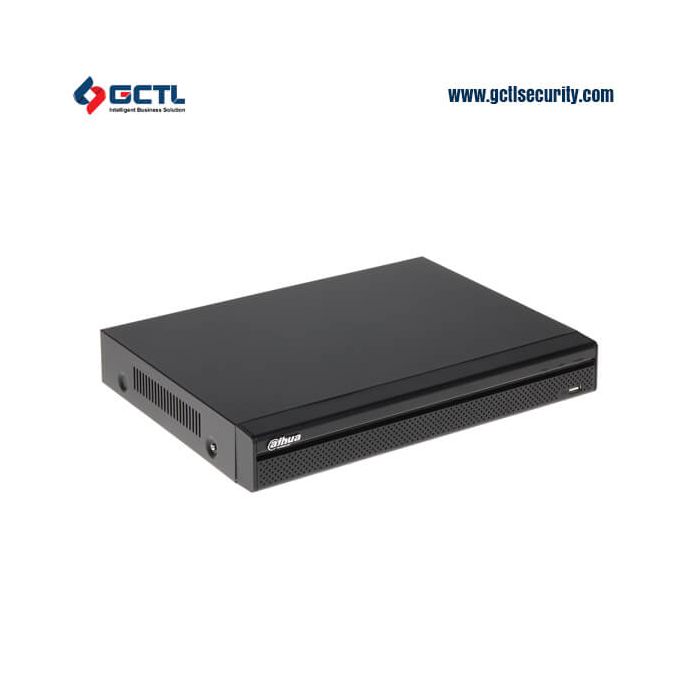

Dahua NVR-4108H 8 Channel Network Video Recorder (NVR)
Name: Dahua NVR-4108H 8 Channel Network Video Recorder (NVR)
Type: 8/16CH Mini 1U 8PoE Network Video Recorder
Model: NVR4108/4116H-8P
Brand: Dahua
Warranty: One year Warranty is available
Dahua NVR-4108H 8 Channel Network Video Recorder (NVR)
Description: DAHUA NVR-4108H-8P-4KS2
> Built in 08 PortsPOE.
> H.265/H.264 codec decoding
> Max 80Mbps Incoming Bandwidth
> Up to 8MP Resolution for Preview and Playback
> Internal HDD – 1 SATA III Port,UP to 6 TB for HDD
> HDMI/VGA simultaneous video output
> Support IPC UPnP, 8PoE ports
> Support ANR technology to enhance the storage reliability when the network break down
|
Model |
DH-NVR4108H-8P |
DH-NVR4116H-8P |
|
System |
||
|
Main Processor |
Dual-core embedded processor |
|
|
Operating System |
Embedded LINUX |
|
|
Video & Audio |
||
|
IP Camera Input |
8 channel |
16 channel |
|
Two-way Talk |
1 channel Input, 1 channel Output, RCA |
|
|
Display |
||
|
Interface |
1 HDMI, 1 VGA |
|
|
Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768 |
|
|
Display Split |
1/4/8/9 |
1/4/8/9/16 |
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
|
Recording |
||
|
Compression |
H.264/MJPEG |
|
|
Resolution |
5Mp(2560×1920)/3Mp(2048×1536)/1080P(1920×1080)/720P(1280×720)/D1 (704×576/704×480) |
|
|
Record Rate |
80Mbps |
|
|
Bit Rate |
48~ 8192kbps |
|
|
Record Mode |
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
|
|
Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|
|
Video Detection & Alarm |
||
|
Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips |
|
|
Video Detection |
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
|
|
Alarm Input |
2 channel |
|
|
Relay Output |
1 channel |
|
|
Playback & Backup |
||
|
Sync Playback |
1/4/8 |
1/4/8/16 |
|
Search Mode |
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
|
|
Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
|
|
Backup Mode |
USB Device/Network/Internal SATA burner |
|
|
Network |
||
|
Ethernet |
1 RJ-45 port (10/100Mbps) |
|
|
PoE |
8 ports (IEEE802.3af/at) |
|
|
Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), SNMP, P2P |
|
|
Max. User Access |
128 users |
|
|
Smart Phone |
iPhone, iPad, Android |
|
|
Storage |
||
|
Internal HDD |
1 SATA port, up to 4TB |
|
|
Auxiliary Interface |
||
|
USB |
2 ports, USB2.0 |
|
|
General |
||
|
Power Supply |
Single, DC48V/2A |
|
|
Power Consumption |
NVR: 10W(without HDD) |
|
|
PoE：Max.25.5W (for one port) |
||
|
Working Environment |
-10°C~+55°C / 10%~90%RH / 86~106kpa |
|
|
Dimension |
Mini 1U, 325mm×250mm×55mm |
|
|
Weight |
1.25KG (without HDD) |
|
