Hikvision DS-8600NI-K8 4K CCTV NVR in Bangladesh

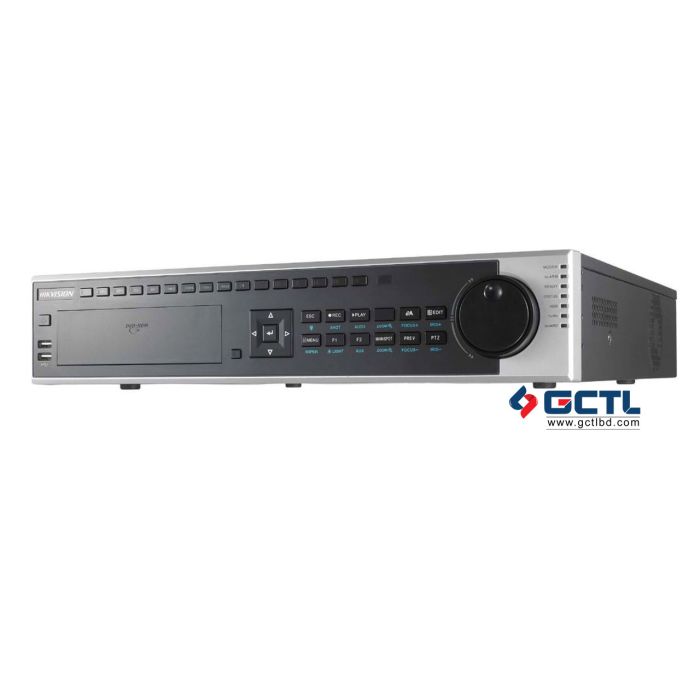

Hikvision DS-8600NI-K8 4K CCTV NVR
• Dual-OS design to ensure high reliability of system running
• ANR technology to enhance the storage reliability when the network is disconnected
• Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
• 2 self-adaptive 10 M/100 M/1000 Mbps network interfaces, and two working modes are configurable: multi-address and network fault tolerance
• Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
Hikvision NVR DS-8632NI-K8
Product Description
- 256Mbps bitrate Input (up to 32-ch IP video)
- Recording resolution up to 8MP
- H.265/H.265+/H.264/H.264+/MPEG4
- VGA, HDMI outputs
- 8 SATA interfaces
- Alarm I/O: 16/4
Hikvision DS-8632NI-K8 English Version 32CH NVR PoE 8SATA Network Video Recorder 4K 8MP HDMI H.265 Alarm on VIF CCTV System
32 channels
Recording video at up to 8Mp resolution Video
output with up to 4K resolution
Synchronous playback 2 channels @ 8 Mp
8 SATA HDD up to 8TB
2 network interfaces RJ-45 10M / 100M / 1000M Ethernet
Video / audio input
|
Video Compression Format |
H.265 / H.265 + / H.264 / H.264 + / MPEG4 |
|
32 channels |
|
|
Two-way audio input |
1 channel, RCA (2.0 Vp-p, 1kΩ) |
|
Incoming bandwidth |
256Mbps |
|
Outgoing bandwidth |
160Mbps |
Video / audio output
|
Video Output |
2 HDMI, 2 VGA (independent) |
|
Output Resolution |
HDMI1: |
|
Audio output |
1 channel, RCA (Linear, 1 KΩ) |
Recording
|
Number of threads |
2 |
|
Main stream |
8Mp / 6Mp / 5Mp / 4Mp / 3Mp / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
|
Additional flow |
In accordance with podkl. video camera |
|
Stream type |
Video, video and audio |
|
Bitrate video |
32 Kbps - 16 Mbps |
|
Bitrate audio |
In accordance with podkl. video camera |
|
Synchronous playback |
2 channels @ 8 Mp (25 fps) / 4 channels @ 4Mp (25fps) / 8 channels @ 1080p (25fps), max.16 channels of video |
|
Zero Channel |
Supported by |
Features
|
ANR |
Supported by |
|
Local Smart Search |
Supported by |
|
Smart camera function |
Supported by |
Net
|
Remote connections |
128 |
|
Protocols |
TCP / IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP ™, HTTPS |
HDD
|
SATA |
8 SATA |
|
eSATA |
1 eSATA |
|
Scope |
up to 8 TB each |
|
Disk array type |
RAID0, RAID1, RAID5, RAID6 and RAID10 |
External interfaces
|
Network Interfaces |
2 RJ-45 10/100/1000 Mbps |
|
USB interface |
Front panel: 2 × USB 2.0; |
|
Serial interface |
1 RS-485 (half duplex), 1 RS-232, 1 keyboard (optional) |
|
Alarm input / output |
16/4 |
Are common
|
Food |
AC 100 ~ 240V |
|
Power consumption (without HDD) |
≤30W |
|
Working conditions |
-10 ° C ... + 55 ° C, humidity 10% ~ 90% |
|
Dimensions |
445 × 400 × 90 mm |
|
Net weight) |
≤5kg (without HDD) |
