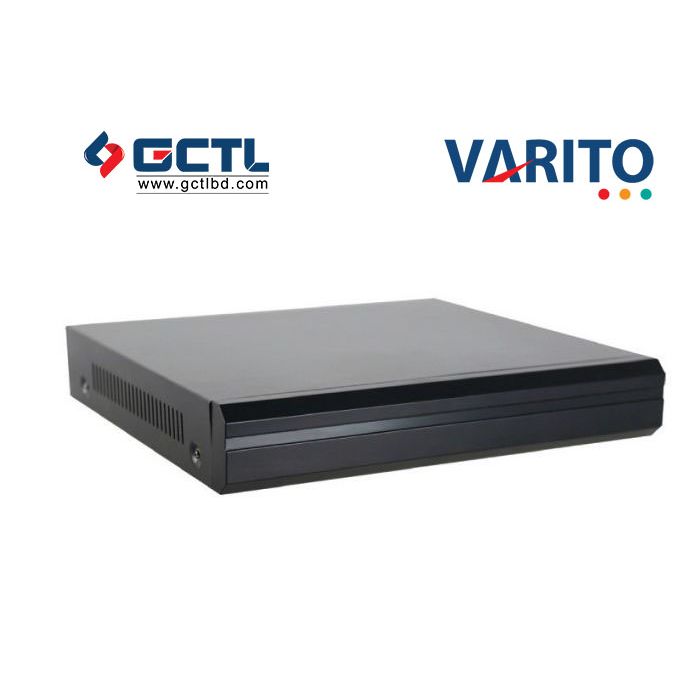

Varito-LTR08HD4M 8CH Standalone NVR with 2 SATA Slots
Varito-LTR08HD4M 8CH Standalone NVR with 2 SATA Slots
Model: LTR08HD4M
Short Description:
- 8ch 1080P/720P IP Camera Input
- 8ch Real Time Display
- 2ch 1080P/4ch 720P Sync Playback
- HDMI and VGA output up to 1080P resolution
- Plug & Play, Smart recording system
- 2 SATA slots (Up to 8TB)
Model: LTR08HD4M
Varito-LTR08HD4M 8CH Standalone NVR with 2 SATA Slots
Short Description:
- 8ch 1080P/720P IP Camera Input
- 8ch Real Time Display
- 2ch 1080P/4ch 720P Sync Playback
- HDMI and VGA output up to 1080P resolution
- Plug & Play, Smart recording system
- 2 SATA slots (Up to 8TB)
Description:
|
NETWORK |
|
|
Internet Protocol |
TCP/UDP/UPNP/Onvif/WTP/NFS/SADP/RTSP/HTTP/DHCP/DDNS |
|
Bandwidth |
40Mbps |
|
VIDEO&AUDIO INPUT |
|
|
Video Input |
8ch1080P/720P/4CIF |
|
Audio Input |
1channel 3.5mm interface |
|
VIDEO&AUDIO OUTPUT |
|
|
Recording Resolution |
1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Frame Rate |
Main stream: 25fps(P)/30fps(N) |
|
Sub stream: 25fps(P)/30fps(N) |
|
|
I-Frame Record |
Support |
|
HDMI Output |
1ch; Resolution:1920×1080, 1280×720, 1440×900, 1366×768, 1280×800, 1024×768, 800×600 |
|
VGA Output |
1ch, Resolution:1920×1080, 1280×720, 1440×900, 1366×768, 1280×800, 1024×768, 800×600 |
|
Audio Output |
1ch, RCA |
|
DECODING |
|
|
Live View/Playback Resolution |
1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Capacity |
8ch Real Time Display |
|
2ch1080P/4ch 720P Sync Playback |
|
|
Display Split |
1/4/6/8/9 |
|
E-Zoom |
Support |
|
HARD DISK |
|
|
SATA |
2sata, up to 4TB capacity for each HDD |
|
NTFS Files System |
Support |
|
HDD Management |
Group and quota. |
|
EXTERNAL INTERFACE |
|
|
Network Interface |
RJ-45 10M/100M Ethernet interface |
|
Serial Interface |
N/A |
|
USB Interface |
2x USB2.0 |
|
Alarm In |
1 |
|
Alarm Out |
N/A |
|
ADVANCE |
|
|
IPC Management |
Support IPC centralized management |
|
Plug and Play |
Support (work with LTN IP cameras) |
|
Corridor Mode |
Support (16:9 to 9:16, work with LTN IP cameras) |
|
IVA |
Receive IVA event(s) from LTN IP cameras (tripwire and perimeter) |
|
Smart Search |
Quickly search out certain record videos in record file |
|
Onvif |
Support Onvif V2.4 |
|
OTHERS |
|
|
Customized Menu |
Support |
|
Language |
English, Chinese |
|
Power Supply |
DC12V/3A |
|
Power Consumption |
≤10W(without HDD) |
|
Working Environment |
-10°C - +55°C/10%-90%RH |
|
Dimension |
1U,58mm×320mm×286mm |
|
Weight |
≤4Kg(without HDD) |
