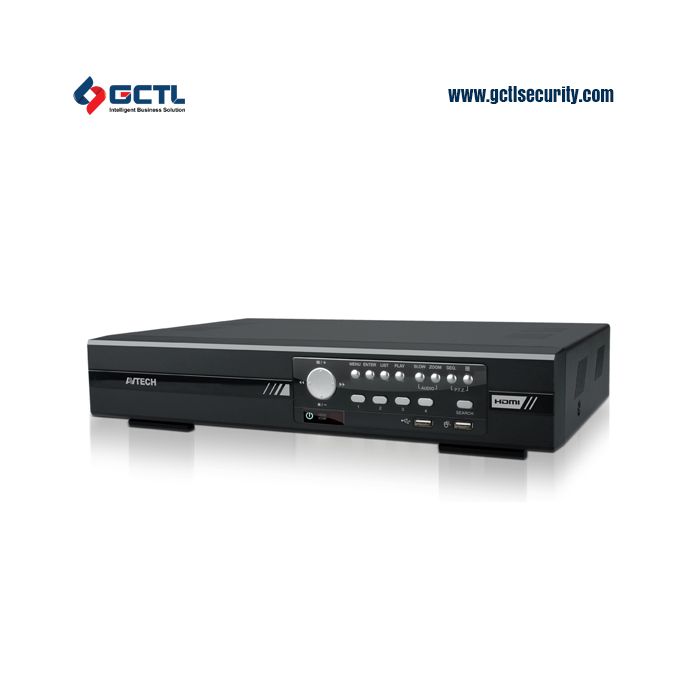

AVTECH AVH308EA - 8CH HD Video Recorder

Specification

Video
Video Compression Format	H.264
Audio Compression Format	G.711
Local / Remote Display Mode	8CH
Local / Remote Playback Mode	4CH
Video Input	8 LAN ports
Video Output (Full HD)	HDMI
Video Output Resolution	1920 x 1080
Record & Backup
Recording Throughput	120 IPS @ 1920 x 1080, up to 48Mbps
Recording Mode	Manual / Event / Alarm / Schedule
Recording Streaming	Dual
Pre-alarm Recording	YES
Quick Search	Time / Motion / Alarm
General
Hard Disk Storage	One 4TB hard disk
eSATA Interface	YES
USB Mouse Control	Two on the front panel: one for video backup to USB flash drive, and another for NVR control via a USB mouse
USB Mouse Control	YES
IR Remote Control	YES
Remote Access	Internet Explorer on Windows operating system / EagleEyes on iOS & Android mobile devices
Event Notification	Push Video / Video Mail / Message Mail
Max. Online Users	10
User Level	Multiple user access levels with password
Operating Temperature	10℃ ~ 40℃
Camera power supply over PON (Power-over-Network)	YES
Power Source (±10%)	DC 48V / 2.7A
Dimensions (mm)	345 (L) x 225 (W) x 68.3 (H)
Network
Ethernet	PON 1~8 port: 10/100Mbps with PON / Internet (WAN) port:1000Mbps
PC Surveillance
Minimum PC Browsing Requirements	AGP graphics card, Direct Draw, 32MB RAM / Windows 7, Vista & XP, DirectX 9.0 or later / Internet Explorer 7.x or later / Intel core i3 or higher, or equivalent AMD / 2GB RAM
Mobile Surveillance
Compatible Devices	EagleEyes on iPhone, iPad & Android mobile devices
Others
AVTECH Free DDNS Service	YES
