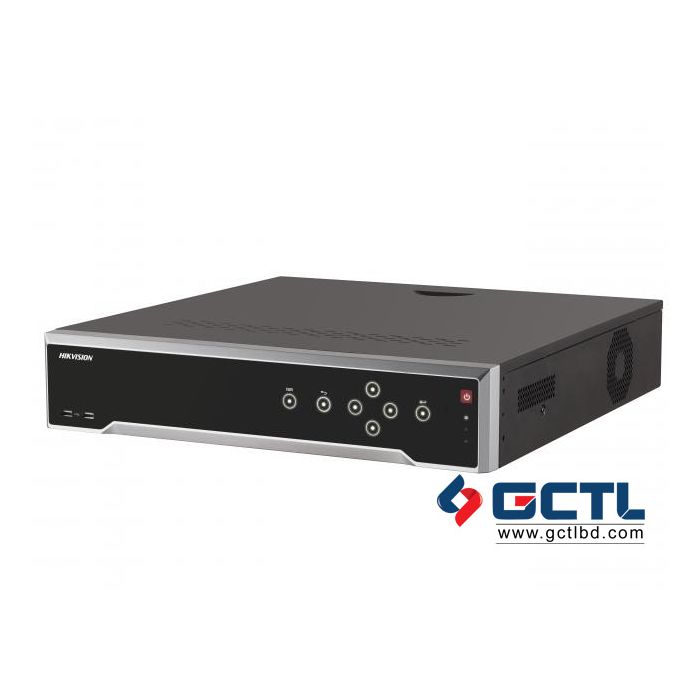

Hikvision DS-8664NI-I8 CCTV Camera NVR

IP video input

64-ch

Incoming bandwidth

320Mbps

Outgoing bandwidth

256Mpbs

VGA1/HDMI1 output resolution

HDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA2/HDMI2 output resolution

HDMI2: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA2: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Audio output

2-ch, RCA (Linear, 1 K Ω)

Decoding format

H.265/H.264/MPEG4

Recording resolution

12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF /  QCIF

Synchronous playback

16-ch

Capability

4-ch@4K/16-ch@1080p

SATA

8 SATA interfaces

eSATA

1 eSATA interface

Capacity

500GB/1TB/2TB/3TB/4TB/5TB/6TB

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 kΩ)

Network interface

2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces

Serial interface

RS-232; RS-485; Keyboard

USB interface

Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

Alarm in/out

16/4

Power supply


100 to 240 VAC, 50 to 60 Hz

Consumption (without hard disk)

≤ 35 W

Max. Power

200 W

Working temperature

-10 to +55°C (14 to 131°F)

Working humidity

10% to 90%

Chassis

19-inch rack-mounted 2U chassis

Dimensions
(W × D × H)


445 × 470 ×90 mm ( 17.5”× 18.3” × 3.5”)

Weight
(without hard disks)

≤8Kg(17.6lb)
