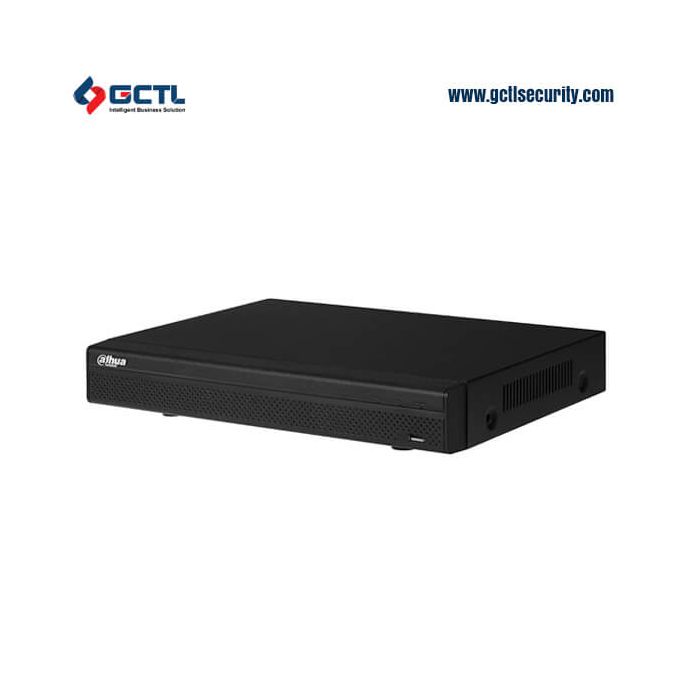

Dahua NVR-4116H-8P 8-16 Channel PoE Network Video Recorder
Dahua NVR-4116H-8P 16CH PoE Network Video Recorder
H.264+/H.264 codec decoding
Max 80Mbps Incoming Bandwidth
Up to 5MP Resolution for Preview and Playback
HDMI/VGA simultaneous video output
Support IPC UPnP, 8PoE ports
Support ANR Technology
Dahua NVR4108/4116H-8P 8/16 Channel PoE Network Video Recorder
The Dahua NVR-4116H-8P is a professional-grade Network Video Recorder (NVR) designed to provide reliable and high-definition video management for IP-based security systems. Featuring 8 built-in PoE ports, this NVR allows direct connection to IP cameras without extra network switches—reducing setup time and installation costs.
It supports up to 16 channels, making it suitable for expanding systems across offices, warehouses, schools, or retail environments. With H.265+ compression technology, users can store high-quality footage while saving up to 70% bandwidth and storage. The system provides remote access through Dahua’s DMSS mobile app, enabling live view, playback, and system control from anywhere.
Designed for stability, performance, and security, the Dahua NVR-4116H-8P ensures seamless video recording and monitoring for both residential and commercial applications. Whether you’re upgrading an existing surveillance setup or building a new one, this PoE NVR delivers the perfect balance between performance and affordability.
Technical Specification
|
System |
||
|
Main Processor |
Dual-core embedded processor |
|
|
Operating System |
Embedded LINUX |
|
|
Display |
||
|
Interface |
1 HDMI, 1 VGA |
|
|
Resolution |
1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768 |
|
|
Multi-screen Display |
8CH: 1/4/8/9 |
|
|
16CH: 1/4/8/9/16 |
||
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
|
Video Detection and Alarm |
||
|
Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips |
|
|
Video Detection |
Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Camera Blank |
|
|
Alarm input |
2 Channel, Low Level Effective, Green Terminal Interface |
|
|
Relay Output |
1 Channel, NO/NC Programmable, Green Terminal Interface |
|
|
Playback and Backup |
||
|
Playback |
8CH: 1/4/8 |
|
|
16CH: 1/4/8/16 |
||
|
Search Mode |
Time /Date, Alarm, MD and Exact Search (accurate tosecond) |
|
|
Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
|
|
Backup Mode |
USB Device/Network |
|
|
Storage |
||
|
Internal HDD |
1 SATA III Port, Up to 6 TB capacity for each HDD |
|
|
HDD Mode |
Single |
|
|
eSATA |
N/A |
|
|
Auxiliary Interface |
||
|
USB |
2 USB Ports (2 USB2.0) |
|
|
RS232 |
N/A |
|
|
RS485 |
N/A |
|
|
Third-party Support |
||
|
Third-party Support |
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
|
|
Audio and Video |
||
|
IP Camera Input |
8/16 Channel |
|
|
Two-way Talk |
1 Channel Input, 1 Channel Output, RCA |
|
|
Recording |
||
|
Compression |
H.264+/H.264/MJPEG |
|
|
Resolution |
5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc. |
|
|
Record Rate |
80Mbps |
|
|
Bit Rate |
16Kbps ~ 20Mbps Per Channel |
|
|
Record Mode |
Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Camera Blank, Video Loss), Alarm), Stop |
|
|
Record Interval |
1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
|
|
Network |
||
|
Interface |
1 RJ-45 Port (10/100Mbps) |
|
|
Ethernet Port |
1 Independent 100Mbps Ethernet Port |
|
|
PoE |
8 ports (IEEE802.3at/af) |
|
|
Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P |
|
|
Max. User Access |
128 users |
|
|
Smart Phone |
iPhone, iPad, Android |
|
|
Interoperability |
ONVIF 2.4, CGI Conformant |
|
|
Electrical |
||
|
Power Supply |
DC48V/2A |
|
|
Power Consumption |
<10W (Without HDD) |
|
|
Environmental |
||
|
Operating Conditions |
-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
|
|
Storage Conditions |
-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
|
|
Construction |
||
|
Dimensions |
cMini 1U, 325mm×251.3mm×55mm (12.8" x 9.9" x 2.2") |
|
|
Net Weight |
1.2kg (2.6 lb) (without HDD) |
|
|
Gross Weight |
2kg(4.4 lb)(without HDD) |
|
|
Certifications |
||
|
CE |
EN55022, EN55024, EN50130-4, EN60950-1 |
|
|
FCC |
Part 15 Subpart B, ANSI C63.4-2014 |
|
|
UL |
UL60950-1+CAN/CSA C22.2 No.60950-1 |
|
