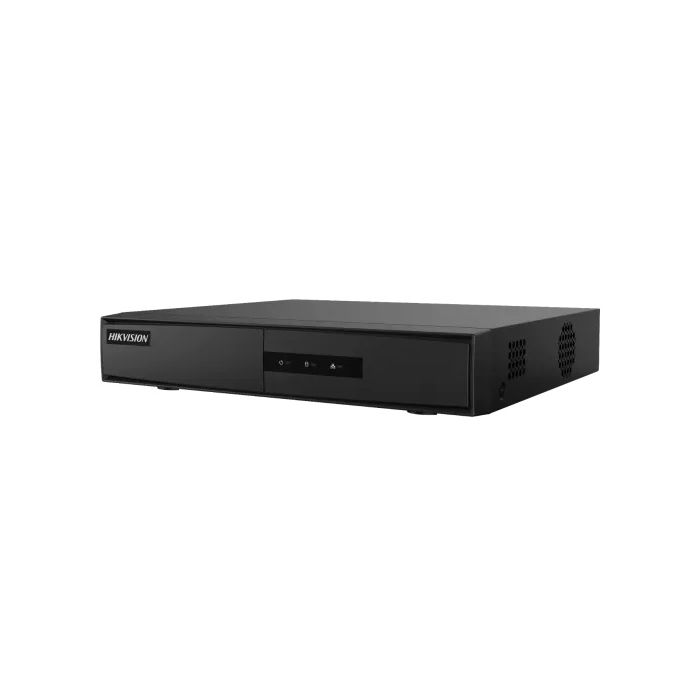

Hikvision DS-7104NI-Q1/M 4 Channel Mini 1U NVR

The 4-Channel Mini 1U 4K Network Video Recorder is a compact, high-efficiency recorder built for professional IP-camera systems. It supports up to 4 network cameras, features advanced H.265+/H.265/H.264+/H.264 compression and dual HDMI/VGA output with 4K support, making it ideal for offices, retail stores, and small-to-medium security installations.

Key Features

Supports up to 4 IP-camera channels (up to 6 MP resolution) with an incoming bandwidth of 40 Mbps and outgoing bandwidth of 60 Mbps. 3
Dual output via HDMI and VGA, enabling simultaneous display and playback at up to 1920×1080p resolution.
Latest video compression standards: H.265+/H.265/H.264+/H.264 to reduce storage and network load.
1 SATA port for HDD storage (up to 6 TB supported) for reliable long-term recording.
Compact 1U chassis (approx. 48 mm high) and low power consumption ≤ 10 W (without HDD), making it rack-friendly and efficient.

Technical Specification

Specification	Details
Channels (IP Video Input)	4-channels, up to 6 MP resolution
Incoming/Outgoing Bandwidth	40 Mbps incoming / 60 Mbps outgoing
Decoding Format	H.265+/H.265/H.264+/H.264
Maximum Decoding Capability	4-ch @1080p (30 fps) or 2-ch @4 MP (30 fps)
Storage Interface	1 × SATA interface supporting up to 6 TB HDD
Video Output	1 × HDMI (1920×1080p/60Hz) + 1 × VGA output
Network Interface	1 × RJ-45 10/100 Mbps self-adaptive
Power Supply	12 V DC, ≤ 10 W (without HDD)
Operating Conditions	-10°C to +55°C; Humidity 10%–90%
Dimensions (W × D × H)	Approx. 265 × 225 × 48 mm
Weight	≤ 1 kg (without HDD)
