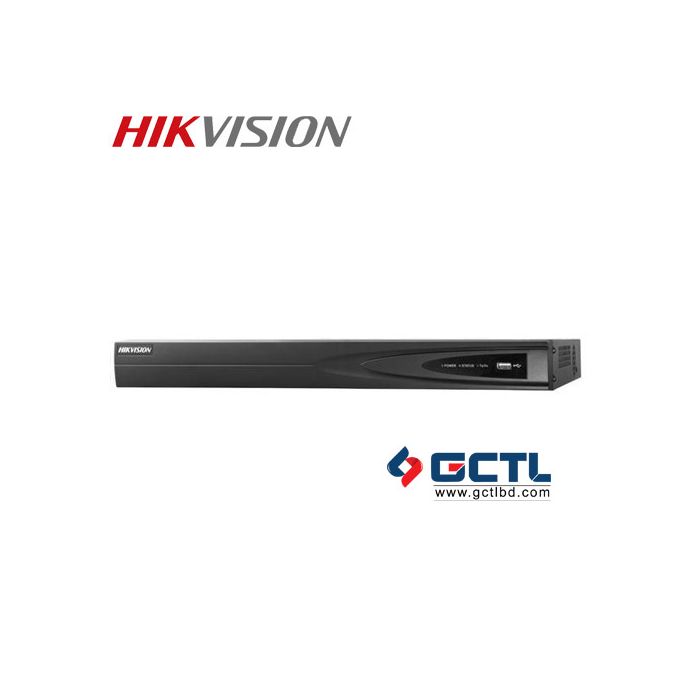

HIKVISION DS-7604NI-Q14 Channel PoE NVR

Be the first to review this product

BDT 0.00

In stock

SKU

gcts-hvnv-0003

HIKVISION DS-7604NI-Q14 Channel PoE NVR

Brand : HIKVISION
Model : DS-7604NI
Country of Origin: Germany
Manufacture From: China
Third-party network cameras supported
Up to 6 Megapixels resolution recording
HDMI and VGA output at up to 1920×1080P resolution
4-ch network cameras can be connected with 40M incoming bandwidth
Plug & Play with up to 4 independent PoE network interfaces
Support network detection, including network delay, packet loss, etc.

Details

HIKVISION DS-7604NI-Q14 Channel PoE NVR

The HIKVISION DS-7604NI-Q1 4-Channel PoE NVR delivers professional-grade video recording and management in a compact, reliable design. Featuring 4 built-in Power-over-Ethernet (PoE) ports, it allows direct plug-and-play connections with Hikvision IP cameras—no external switch required.

With H.265+ compression, it maximizes storage efficiency while maintaining crisp, high-resolution video. The recorder supports up to 4K output, providing clear and detailed surveillance footage for real-time monitoring or playback.

This NVR offers advanced features such as motion detection, event alerts, smart playback, and remote access through the Hik-Connect mobile app, giving users complete control anytime, anywhere. Its compatibility with ONVIF-standard IP cameras ensures flexible integration with existing systems.

Perfect for small businesses, residential complexes, retail shops, or office premises, the DS-7604NI-Q1 PoE NVR provides a cost-effective and powerful solution for professional IP surveillance.

Technical Specification

Device Specifications
Video/Audio Input	IP video input: 4-ch; Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ)
Video/Audio Output	HDMI Output: 1-ch, resolution: 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz; Recording Resolution: 6MP/ 5MP/ 4MP/ 3MP/ 1080P/ UXGA/ 720P/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF; Frame Rate: Main stream: 50 fps (P) / 60 fps (N); Sub-stream: 50 fps (P) / 60 fps (N); Audio Output: 1-ch, RCA (Linear, 1kΩ); Synchronous Playback: 4-ch
Decoding	Capability: 4-ch@1080P; Live view / Playback: 6MP/ 5MP/ 3MP/ 1080P/ UXGA/ 720P/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF
Network	Incoming bandwidth: 40Mbps; Outgoing bandwidth: 80Mbps
External Interface	Network Interface: 1 RJ-45 10/ 100/ 1000 Mbps self-adaptive Ethernet interfaces; USB Interface: 1 × USB 2.0 and 1 × USB 3.0
Hard Disk	SATA: 1 SATA interfaces for 1 HDD; Capacity: Up to 4TB capacity for each HDD
POE	Supported Standard: AF and AT; Interface: 4 independent 100 Mbps PoE network interfaces; Max. Power: 50W
General	Power Supply: 48V DC; Consumption(without hard disk and POE): ≤ 10W; Working Temperature: -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF); Working Humidity: 10 % ~ 90 %; Chassis: 1U chassis; Dimensions: 315 × 230 × 45mm (12.4 × 9.1 × 1.8 inch); Weight(without HDD): ≤ 1 Kg (2.2 lb)
