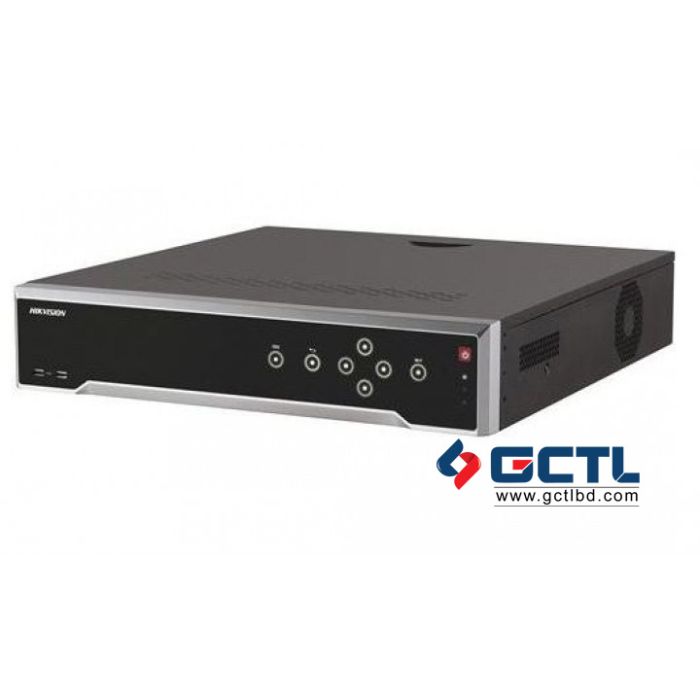

Hikvision DS-7732NI-K4 32ch NVR in Bangladesh

DS-7732NI-K4 Embedded 4K NVR

• Third-party network cc cameras supported
• Up to 8 Megapixels resolution recording
• Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution

• 16/32-ch network cameras can be connected with
160M/256M incoming bandwidth
• Up to 4 SATA interfaces
• Support dual-os to ensure high reliablility of system running

•Support various VCA detection alarm and VCA search

•Support H.265/H.264/MPEG4 video formats

Video/Audio Input
IP video input:		32-ch
Two-way audio input:		1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Outgoing bandwidth:	160Mbps
Remote connection:	128

Video/Audio Output
Audio Output:		1-ch, RCA (Linear, 1kΩ)
Synchronous Playback:		16-ch
Decoding
Capability:	8-ch@1080P

Hard Disk
Capacity:	Up to 6TB capacity for each HDD
External Interface
Network Interface:		2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces
Serial Interface:		RS-232; RS-485;
Alarm In:		16-ch
Alarm Out:		4-ch

General


Power Supply:		100 to 240 VAC
Consumption(without hard disk and POE):		≤20 W
Working Temperature:		-10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity:		10 % ~ 90 %
Chassis:		19-inch rack-mounted 1.5U chassis
Dimensions:		445 × 390 × 70 mm (17.5"× 15.3" × 2.8")
Weight(without HDD):		≤ 5 Kg (11 lb)
