Dahua 4104/4108HS-P-4KS2 NVR in Bangladesh
Dahua NVR4104/4108HS-P-4KS2 in Bangladesh
4/8 Channel Compact 4PoE 4K&H.265 Lite Network Video Recorder
> H.265/H.264 codec decoding
> Max 80Mbps Incoming Bandwidth
> Up to 8MP Resolution for Preview and Playback
> Up to 2ch@4K/8ch@1080P decoding
> HDMI/VGA simultaneous video output
> Support IPC UPnP, 4PoE ports

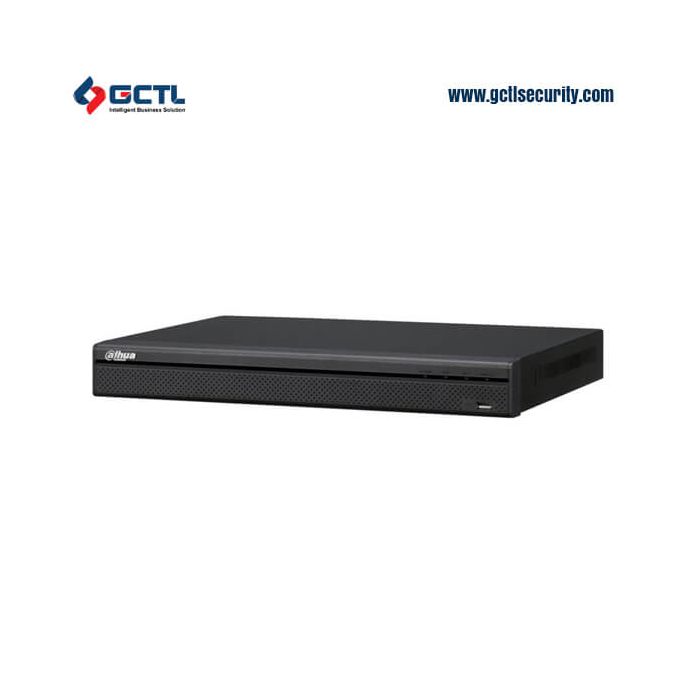

Dahua 4104/4108HS-P-4KS2 NVR
The Dahua NVR4104HS-4KS2 is a Network Video Recorder (NVR) for connecting up to 4 IP cameras and up to 4K resolution recording. It supports smart H.265 decoding. Smart Add System NVR with the Smart Add function, the installation of IP system is as easy as an analog system, no matter the NVR with or without a PoE switch embedded. It should be noted that the NVR has to be in the same router as cameras. Video record in SD card in IP cameras when the network breaks down, and after the network recovered, the video will be transferred to NVR and then recorded in it
Easy4ip: You can monitor at anytime and anywhere with Easy4ip. There are two modes Easy4ip web client and mobile app. With this function, you can manage your devices more convenient.
- H.265/H.264 Codec Decoding
- Up to 8MP Resolution for Preview and Playback
- HDMI/VGA Simultaneous Video Output
- Support ANR Technology to Enhance the Storage Reliability When the Network Break Down
- 1 SATA III Port, Up to 6 TB Capacities for Each HDD. No HDD Included
|
System |
||
|
Main Processor |
Quad-core embedded processor |
|
|
Operating System |
Embedded LINUX |
|
|
Aduio and Video |
||
|
IP Camera Input |
4/8 Channel |
|
|
Two-way Talk |
1 Channel Input, 1 Channel Output, RCA |
|
|
Display |
||
|
Interface |
1 HDMI, 1 VGA |
|
|
Resolution |
HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 |
|
|
VGA: 1920×1080, 1280×1024, 1280×720 |
||
|
Decoding Capacity |
2ch@4K(30fps)/8ch@1080P(30fps) |
|
|
Multi-screen Display |
4CH: 1/4 |
|
|
8CH: 1/4/8/9 |
||
|
OSD |
Camera title, Time, Camera lock, Motion detection, Recording |
|
|
Recording |
||
|
Compression |
H.265/ H.264 |
|
|
Resolution |
8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc. |
|
|
Record Rate |
80Mbps |
|
|
Bit Rate |
16Kbps ~ 20Mbps Per Channel |
|
|
Record Mode |
Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop |
|
|
Record Interval |
1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
|
|
Video Detection and Alarm |
||
|
Trigger Events |
Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips |
|
|
Video Detection |
Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering |
|
|
Alarm input |
N/A |
|
|
Relay Output |
N/A |
|
|
Playback and Backup |
||
|
Playback |
4CH: 1/4 |
|
|
8CH: 1/4/9 |
||
|
Search Mode |
Time /Date, MD and Exact Search (accurate to second), Smart search |
|
|
Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom |
|
|
Backup Mode |
USB Device/Network |
|
|
Third-party Support |
||
|
Third-party Support |
Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more |
|
|
Network |
||
|
Interface |
1 RJ-45 Port (10/100Mbps) |
|
|
Ethernet Port |
1 Independent 100Mbps Ethernet Port |
|
|
PoE |
4 Ports(IEEE802.3at/af) |
|
|
Network Function |
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, SNMP, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip |
|
|
Max. User Access |
128 users |
|
|
Smart Phone |
iPhone, iPad, Android |
|
|
Interoperability |
ONVIF 2.4, SDK, CGI |
|
|
Storage |
||
|
Internal HDD |
1 SATA III Port, Up to 6 TB capacity for each HDD |
|
|
HDD Mode |
Single |
|
|
Auxiliary Interface |
||
|
USB |
2 ports (1 Rear USB2.0, 1 Front USB2.0) |
|
|
RS232 |
N/A |
|
|
RS485 |
N/A |
|
|
Electrical |
||
|
Power Supply |
DC48V/1.5A |
|
|
Power Consumption |
NVR: <7.5W (Without HDD) |
|
|
PoE: Max 25.5W for single port, 50W in total |
||
|
Environmental |
||
|
Operating Conditions |
-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
|
|
Storage Conditions |
-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
|
|
Construction |
||
|
Dimensions |
Compact 1U, 260mm×224.9mm×47.6mm (10.2" x 8.9" x 1.9") |
|
|
Net Weight |
0.8kg (1.76 lb) (without HDD) |
|
|
Gross Weight |
1.6kg(3.53 lb)(without HDD) |
|
|
Certifications |
||
|
CE |
EN55032, EN55024, EN50130-4, EN60950-1 |
|
|
FCC |
Part 15 Subpart B, ANSI C63.4-2014 |
|
|
UL |
UL60950-1 |
|
