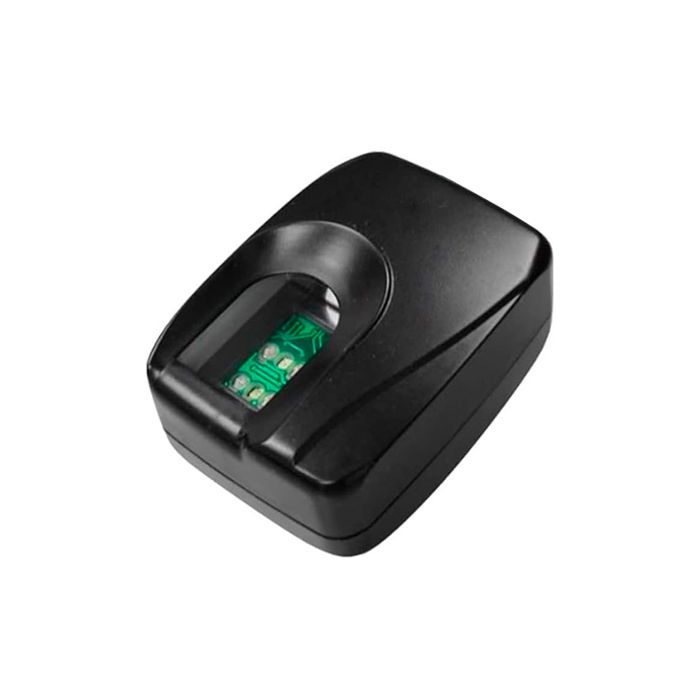

Futronic FS80 Biometric Fingerprint SIM Registration Scanner
Futronic FS80 Fingerprint Scanner
Brand: Futronic
Model: FS80
Country of Origin: Hong Kong
Country of Manufacture: Hong Kong
Feature Highlights:
- USB 2.0 compatible interface, plug and play device
- Supports multiple devices handling
- 1st in FVC(Fingerprint Verification Competition)
- Auto-on fingerprint capture system
- With a 2M standard USB cable
- High Quality Image Capturing
- Strong Performance for Wet / Dry Finger
- Sensor resistant to scratches, impact, vibration and electrostatic shock
Futronic FS80H USB Fingerprint Scanner in Bangladesh
Futronic FS80H USB Fingerprint Scanner uses advanced CMOS sensor technology and precise optical system to deliver high quality fingerprint image. It can capture an almost un-distorted raw fingerprint image into PC in 100ms. So it is good for any fingerprint recognition application.
Its finger scanning window is a crown glass with a thickness of 14mm. So it is much more reliable and robust compared to any semiconductor type fingerprint sensor.
The finger is illuminated by 4 infra-red LEDs during scanning and the light intensity is automatically adjusted according to scanning fingerprint’s characteristics (wet, dry, blurred, etc) to optimize the quality of the captured fingerprint image.
Special electronic circuit is built into FS80H to do Live Finger Detection (LFD). That is, with appropriate software in PC, user can select this LFD feature so that only live finger’s fingerprint will be scanned into PC. Fake fingers made from silicone rubber, play-doh, etc, will be rejected. And the LFD feature is included in all Futronic’s standard software.
Technical Specifications:
|
Scanner Name |
Futronic FS80H USB Fingerprint Scanner |
|
Manufacturer |
Futronic Technology |
|
Connection |
USB 2.0 |
|
Manufacturer Supported OS |
|
|
Neurotechnology Supported OS |
|
|
Resolution |
500 dpi |
|
Image capture area (Platen size) |
16 x 24 mm (0.6" x 0.9") |
|
Fingerprint image size |
320 x 480 pixels |
|
Sensor type |
Optical, CMOS |
|
Illumination |
Infrared LEDs |
|
Device size |
45 x 63 x 26 mm (1.8" x 2.5" x 1.0") |
|
Device weight |
120 grams (0.3 lbs) |
|
Operating temperature |
-10°C ~ +55°C |
Advances Features:
Fingerprint scanning window size: 16x24mm
Image resolution: 320x480 pixel, 500 DPI
Image format: 8 bit 256 grayscale.
Raw fingerprint image file size: 150K byte
With Live Finger Detection (LFD) feature
USB 2.0 compatible interface, plug and play device.
USB Cable: 2M standard USB cable
Product Dimention: 64 x 48 x 27 mm
Weight: Light weight, 120g
Operation temperature: -10 to +55 C
Electrical Features:
Light source: Infrared LED
Supply voltage: DC 4.5-5.5V via USB port
Power consumption: <700mW (during finger scanning)
Standby Mode: <200mW
Sleep Mode: <2.5mW
ESD Contact: 8KV no permanent damage
Air discharge: 16KV no permanent damage
| Call for Price | No |
|---|---|
| Brand | Futronic |
