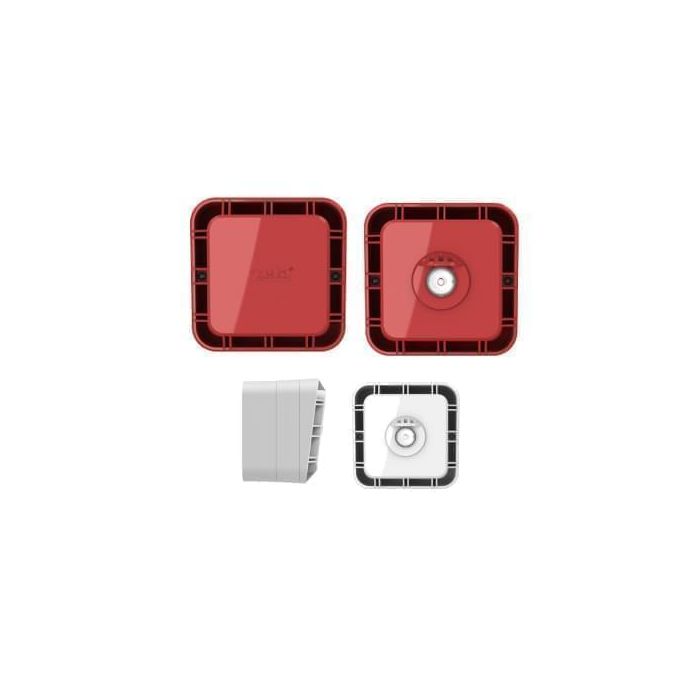

Zeta Conventional Combined Wall Sounder Beacon
Features:
- Complies with EN54 Pt 3 Type A & EN54 Pt 23
- 102dB @ 1m sound output
- 22 Tone patterns (site selectable)
- Flush or surface fixing
- Housed in UL V0 flame retardant ABS
- 4 x 20mm cable entries (2 top, 2 bottom)
- First fix, wire to back box technology
- Flashing Rate 0.5Hz
Brand : ZETA
Model : ZXTB/R
Country of Origin: UK
Description :
The new Xtratone conventional wall sounder with beacon has been designed to make an “electronics-free” first fix and is available in red or white. The beacon has a coverage pattern
of W 3.0 - 8.9 and the sounder part has 22 selective tones.
Technical Specifications:
|
Model |
ZXTB/R |
ZXTB/W |
|
Part No. |
42-608 |
42-609 |
|
Voltage |
17 - 30V DC |
17 - 30V DC |
|
Current @ 24V DC |
70mA Max |
70mA Max |
|
Flash Colour |
White |
White |
|
Flash Frequency |
0.5Hz |
0.5Hz |
|
Body Colour |
Red |
White |
|
Sounder Type |
A |
A |
|
IP Rating |
IP 21 C |
IP 21 C |
|
Operating Temperature |
-10ºC to 55ºC |
-10ºC to 55ºC |
|
Sound Output @ 1m |
*102dB |
*102dB |
|
Size mm (with back box) |
105 x 105 x 56 (105 x 105 x 89) |
|
|
Weight |
210g |
210g |
| Call for Price | Yes |
|---|---|
| Brand | Zeta |
