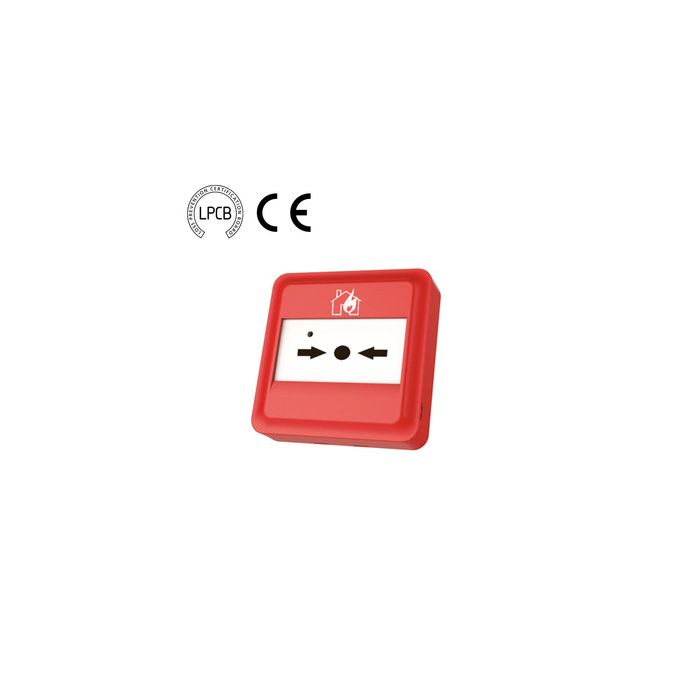

Asenware Addressable Manual Call Point
- LPCB Approved
- Semi-flush or surface mounting
- Compatible with the latest EN standards
- Lever reusable ( non-glass break )
- LED indicator
- Full electronic coding, through CODER-9001 encoder scene rewrite
Brand : ASENWARE
Model : AW-D305
Country of Origin: UK
The AW-D305 Addressable manual call point ( hereinafter referred to AW-D305 Addressable) is mainly designed to be used with an intelligent two-bus control system. If it is pressed after a fire is manually confirmed, an alarm signal may be sent to a fire alarm control system which will, after receiving the alarm signal, display the coded address and the equipment status of the manual fire call points. When the manual fire call points is operating normally, the red indicator will blink; when there is a fire alarm, it will remain lit. The AW-D305 Addressable supports electronic coding, more suitable for engineering application convenient.
Technical Specifications:
|
|
Signal Loop 24V(18V～28V) |
|
Standby Current |
Loop＜0.8mA ; Power＜2mA |
|
Action Current |
Loop＜5mA ; Power＜15mA |
|
Output Capacity |
1A@DC30V |
|
Input Mode Setting |
NC or NO input mode can be set by the jumper JP4. |
|
Programming Method |
Electronically addressed |
|
Code Range |
One address within 1~324. |
|
|
Inspection indicator: l blink once about every 12 seconds in the inspection status or remain lit in the output status; |
|
Operating Temperature |
-10℃～+55℃ |
|
Relative Humidity |
≤95% , non-condensing |
|
Material of Enclosure |
ABS |
|
|
86mm×86mm×41mm |
|
Mounting Hole Distance |
60.5mm |
|
Weight |
About 148g (with base) |
|
|
Signal Loop 24V(18V～28V) |
|
Certificate |
CE, LPCB |
