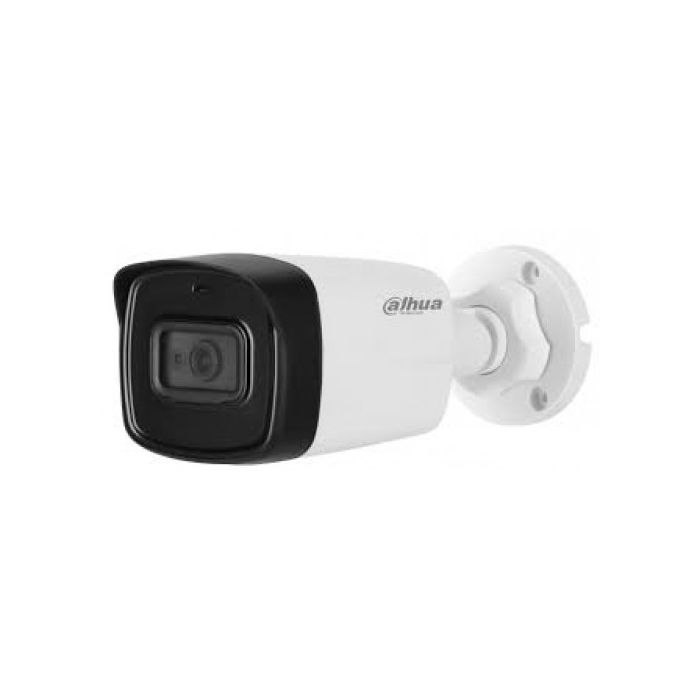

Dahua HAC-HFW1200TLP 2MP HDCVI IR Bullet Camera
Dahua HAC-HFW1200TLP 2MP HDCVI IR Bullet Camera
Image Sensor: 1/2.7″ CMOS with 2 MP
Max Resolution / Frame Rate: 1080p @ 25/30 fps
Lens: Fixed-focal 3.6 mm standard
Angle of View: Approx. 89.9°/59.4°
IR Illumination Distance: Up to ~40 meters Smart IR
Minimum Illumination: Approx. 0.02 Lux @ F1.9 (color)
Video Output Formats: HDCVI / TVI / AHD / CVBS
Protection / Housing: IP67 rated, metal/plastic housing
Dahua HAC-HFW1200TLP 2MP HDCVI IR Bullet Camera
The Dahua HAC-HFW1200TLP is a high-quality 2 MP (1080p) HDCVI IR bullet camera, engineered for outdoor surveillance in Bangladesh. It supports multi-format outputs (HDCVI/CVBS/AHD/TVI), features Smart IR for up to ~40 metres of night vision, and is built in an IP67 weather-proof housing—offering superb performance for home, retail or SMB security systems.
Key Features
-
2 MP resolution (1920×1080) at up to 30 fps for clear full-HD video.
-
Multi-format output: HDCVI, AHD, TVI, CVBS switchable via OSD—ensures compatibility with existing infrastructure.
-
Smart IR illumination up to about 40 metres, enabling reliable night-vision even in low light.
-
Fixed lens options (3.6 mm standard, with 2.8 mm or 6 mm optional) giving flexible field of view.
-
Rugged IP67-rated enclosure for outdoor durability in harsh environments.
-
Built-in microphone (in certain variants) enables audio capture along with video.
Technical Specification
|
Specification |
Details |
|
Image Sensor |
|
|
Max Resolution / Frame Rate |
1080p @ 25/30 fps |
|
Lens |
|
|
Angle of View |
Approx. 89.9°/59.4° (for 3.6 mm lens) |
|
IR Illumination Distance |
|
|
Minimum Illumination |
|
|
Video Output Formats |
|
|
Protection / Housing |
|
|
Power Supply |
12 V DC ±10% |
|
Operating Temperature |
–20 °C to +60 °C (RH95% max) |
|
Dimensions |
|
|
Weight |
Approx. 460 |
-
