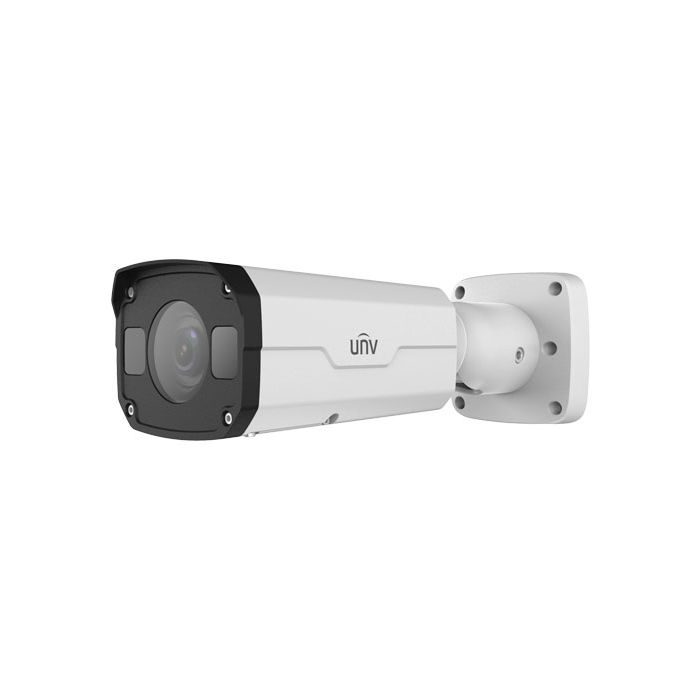

Uniview IPC2324EBR-DP 4MP VF Network IR Bullet Camera
Features and Key points :
• Model: Uniview IPC2324EBR-DP
• 4 Megapixel 1/2.8? Progressive scan CMOS
• IR distance 30m, IP67
• H.265/MJPEG
• Varifocal Lens : 2.8~12 mm@F1.4
• Metal Housing
• Micro SD, up to 128 GB
• Installation with expert Technician
• Best price in Bangladesh
• Call for Discount / Price Match policy
Buy Uniview IPC2324EBR-DP 4MP VF Network IR Bullet Camera with best Price in Bangladesh
Day/night functionality, Smart IR, up to 30m (98 ft) IR distance, Up to 120 dB Optical WDR(Wide Dynamic Range). 3D DNR (Digital Noise Reduction)Compression: H.265, H.264, MJPEG. Embedded smart algorithm, Triple streams
ROI (Region of Interest), 9:16 corridor mode, Customized OSD, Network. ONVIF Conformance, Structure. Wide temperature range: -35°C to 60°C (-31°F to 140°F). Wide voltage range of ±25%. IP66
Key Features Of Uniview IPC2324EBR-DP
■ 1/3″ Progressive scan CMOS
■ Metal Housing
■ 4 MP
■ Varifocal Lens : 2.8~12 mm@F1.4
■ H.265/H.264/MJPEG
■ Micro SD, up to 128 GB
■ Triple streams
■ Angle of view : 91° ~ 27°
■ Two way audio supported
■ 9:16 corridor format
■ ONVIF Conformance
■ Support PoE & DC 12V power supply
Uniview IPC2324EBR-DP of Spicifications:-
|
Sensor |
1/3", 4.0 megapixel, progressive scan, CMOS |
|
Lens |
2.8~12 mm@F1.4 |
|
Angle of View(H) |
95°~29° |
|
Zoom/Focus |
Manual |
|
Shutter |
Auto/Manual, 1/6~1/100000 s |
|
Minimum Illumination |
Colour: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR on |
|
IR Range |
Up to 30m (98 ft) IR range |
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|
S/N |
>55dB |
|
WDR |
120dB |
|
Max. Resolution |
2592 × 1520 |
|
Video Compression |
H.265/H.264/MJPEG |
|
Frame Rate |
4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps |
|
Corridor Mode Screen |
Supported |
|
ROI |
Supported |
|
OSD |
Up to 8 OSDs |
|
Privacy Mask |
Up to 8 areas |
|
Audio Compression |
G.711 |
|
Two-way audio |
Supported |
|
Edge Storage |
Micro SD, up to 128 GB |
|
Audio I/O |
Audio cable |
|
Alarm I/O |
1/1 |
|
Network Interface |
1 RJ45 10M/100M Base-TX Ethernet |
|
Power Supply |
DC 12V±25%, PoE (IEEE 802.3af) |
|
Dimensions(W×D×H) |
253.4 × 86 × 71.7mm (9.98” × 3.4” × 2.8”) |
|
Weight |
0.58kg (1.28lb) |
|
Working Environment |
-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
|
Ingress Protection |
IP66 |
|
Protocols |
L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x |
|
Resolution |
4MP |
PIR Detection camera in different premises
PIR Detection camera fits in different premises like, Office area, Apartment, Small Business, Factory, Warehouse etc. Instant alert and notification system make it more effective to secure your premises.
Brands of CCTV Surveillance Camera that's we Provide:
Our diverse Team of IT professionals will Allow You to extend your Service and Installation services for all the Significant vendors and manufacturers of CCTV Surveillance Camera So in the Event That You have assigned the task to Set up the Intruder Alarm System, Then you'll be no compromising on the kind of hardware you want but Will Soon be free to choose. Some of the vendors that we have the proficiency in installing gear from include.
| • Hikvision | • AVtech | • Varito | • Dahua |
| • Mepesen | • Axis | • Bosch | • Jovision |
Choosing the right CCTV Lens
Comparison of CCTV Camera Resolution
Security camera resolution is the total number of pixels that make up an image, which is measured by the image width and height. For example, the width and height of a 2MP image are 1920 and 1080 respectively. By multiplying these two figures together, you will get 2,073,600, which is the total number of pixels contained in the image. Also, the height of an image is used to symbolize the resolution and thus, you can say 1080p resolution when talking about an image with 2 million pixels.
The most common resolution for home security camera in the market includes 2MP (1080p), 4MP (1440p), 5MP (1920p) and 8MP (4K/2160p).
Take the following security camera resolution comparison chart into account:
IP Camera Connection Diagram
An Internet Protocol camera, or IP camera, is a type of digital video camera that receives control data and sends image data via the Internet. They are commonly used for surveillance but unlike analog closed-circuit television (CCTV) cameras, they require no local recording device, only a local area network.
What is our after-sale service System?
We offer 100% guarantee on our product after sales service. We provide one year service warranty free and we provide life time service just for service fee.
What is the price of Uniview IPC2324EBR-DP 4MP VF Network IR Bullet Camera in Bangladesh?
The latest price of Uniview IPC2324EBR-DP 4MP VF Network IR Bullet Camera in Bangladesh is 17,000.00৳. You can buy the Uniview IPC2324EBR-DP 4MP VF Network IR Bullet Camera at best price from our website or visit any of our showrooms.
We Provide Solution of Surveillance System in BD. |
|
|
|
We successfully installed Survillance System to Many Banks and corporate in Bangladesh, some of the projects are: |
||
Banks |
Corporates |
|
…Other many more Projects |
…Other many more Projects |
|
| Call for Price | No |
|---|---|
| Brand | UNIVIEW |
| case_type | Bullet |
| Extra Facility | Memory Card Slot |
| image_sensor | CMOS |
| ir_distance | 21-30 Meter |
| Lens Type | Varifocal Lens |
| local_storage | Micro SD |
| power_supply | DC12V |
| resolution | 4 Mega Pixel |
| weather_protection | Both Indoor & Outdoor |
| wifi | N/A |
