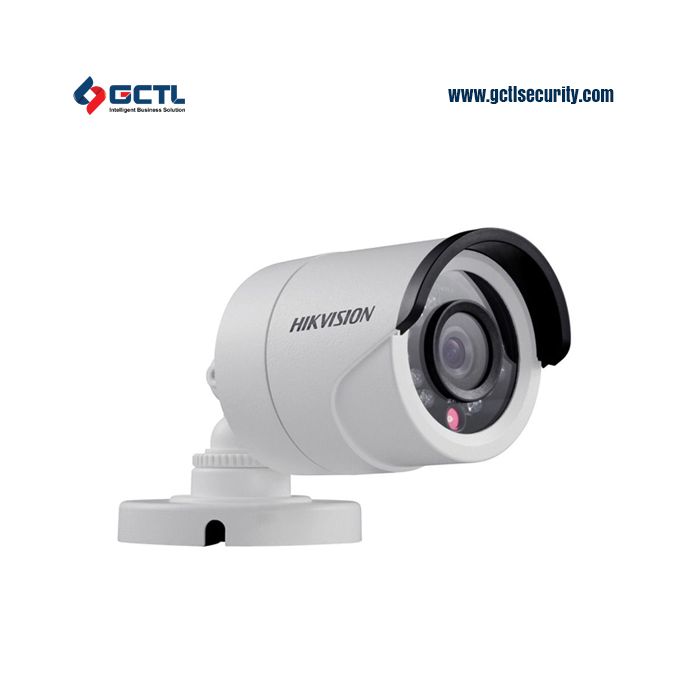

HIKVISION DS-2CE16D5T-IR Bullet HD1080P CCTV Camera
FEATURES:
2 Megapixel high-performance CMOS
Analog HD output, up to 1080P resolution
True Day/Night,
OSD menu, 3D DNR, Smart IR
True WDR, up to 120dB
Up to 20m IR distance
IP66 weatherproof, OSD menu
Up the Coax(HIKVISION-C, Pelco-C Protocol)
Brand : Hikvision
Model : DS-2CE16D5T-IR
FEATURES:
2 Megapixel high-performance CMOS
Analog HD output, up to 1080P resolution
True Day/Night,
OSD menu, 3D DNR, Smart IR
True WDR, up to 120dB
Up to 20m IR distance
IP66 weatherproof, OSD menu
Up the Coax(HIKVISION-C, Pelco-C Protocol)
|
Image Sensor |
2MP CMOS Image Sensor |
|
Signal System |
PAL/NTSC |
|
Effective Pixels |
1944(H)×1092(V) |
|
Min. Illumination |
0.01 Lux @(F1.2,AGC ON), 0 Lux with IR |
|
Shutter Time |
1/25(1/30) s to 1/50,000 s |
|
Lens |
3.6mm (6mm optional) |
|
Lens Mount |
M12 |
|
Adjustment Range |
Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360° |
|
Day& Night |
IR cut filter with auto switch |
|
Wide Dynamic Range |
120dB |
|
Video Frame Rate |
1080p@25fps/1080p@30fps |
|
HD Video Output |
1 Analog HD output |
|
Synchronization |
Internal Synchronization |
|
CVBS Output |
1Vp-p Composite Output(75Ω/BNC) |
|
S/N Ratio |
More than 62 dB |
|
BLC |
Support |
|
Up the Coax |
Support |
|
Menu |
|
|
Camera ID |
On/Off (15 letters, adjusted position) |
|
D/N Mode |
Color/ BW/ EXT |
|
Auto White Balance |
ATW/ AWC-SET/ Indoor/ Outdoor/ Manual |
|
Private Mask |
On/Off, maximum 8 zones |
|
Motion Detection |
On/Off, maximum 4 zones |
|
BLC |
BLC/HLC/Off |
|
Anti-flicker |
On/ Off |
|
Language |
English/ Japanese/ CHN1/ CHN2/ Korean/ German/ French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish/ Hebrew/ Arabic |
|
Function |
Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM |
|
Scene |
Indoor, Outdoor, Indoor1, LOW-LIGHT |
|
General |
|
|
Operating Conditions |
-30 °C ~ 60 °C (-22 °F ~ 140 °F) |
|
Power Supply |
12 VDC±15% |
|
Power Consumption |
Max. 4W |
|
Weather Proof |
IP66 |
|
IR Range |
Up to 20m |
|
Dimension |
Φ70×149.5 mm (Φ2.76” ×5.89”) |
|
Weight |
360 g (0.79 lb) |
