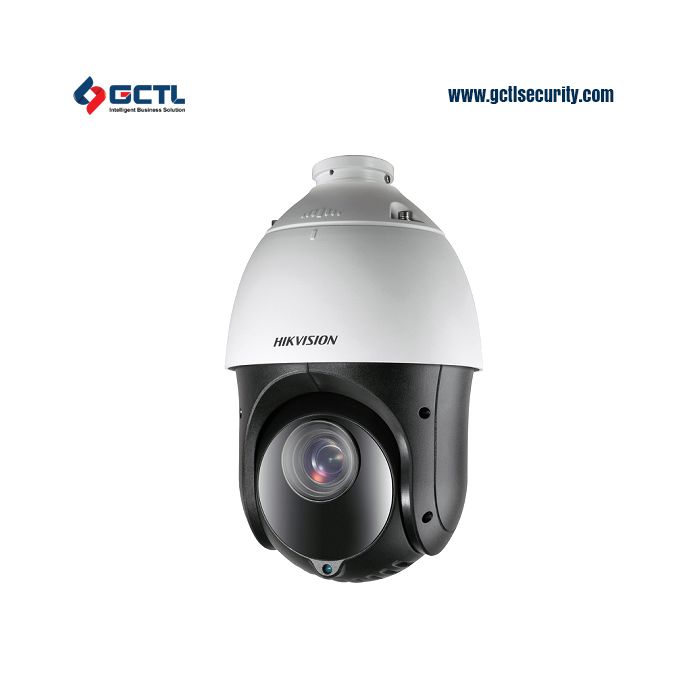

Hikvision DS-2AE4123TI-D HD720P Turbo IR PTZ Dome Camera
High-Definition PTZ Dome Camera
Brand : HIKVISION
Model : DS-2AE4123TI/4223TI-D
Image Sensor: 1/3″ Progressive Scan CMOS
Resolution: 1280 × 720 (HD720p)
Optical Zoom: 23× (4 mm to 92 mm lens)
Color: 0.05 Lux (F1.4, AGC ON); B/W: 0 Lux IR on
IR Distance: Up to 100 meters
Pan/Tilt Range: Pan: 360°, Tilt: -15° to +90°
Presets/Patrol: 256 presets, 8 patrols
Protection Level: IP66 outdoor rated
High-Definition PTZ Dome Camera – Turbo IR 23× Zoom
Experience advanced surveillance with this HD 720p Turbo IR PTZ Dome Camera, engineered for high-performance security deployments. Featuring a 1/3″ progressive-scan CMOS sensor, 23× optical zoom, and infrared night-vision reaching up to 100 metres, this camera is tailored for outdoor monitoring of large areas. With full 360° pan, -15° to 90° tilt (auto-flip), DWDR, multiple presets/patrols and rugged IP66-rated housing, it is ideal for outdoor surveillance in demanding environments.
Key Features
-
1/3″ progressive-scan CMOS sensor delivering 1280 × 720 resolution (with variants up to 1080p) for clear HD imagery.
-
23× optical zoom (4–92 mm lens) enabling precise long-range monitoring.
-
Up to ~100 metres of Smart IR illumination for effective night-time coverage in low-light or no-light conditions.
-
Full 360° continuous pan and -15° to +90° tilt with auto-flip ensures wide-area coverage and quick repositioning.
-
DWDR, 3D-DNR, BLC and other image-enhancement features to maintain image clarity under challenging lighting.
-
Rugged IP66-rated outdoor housing for protection against dust, rain and harsh weather conditions.
-
Multiple mounting options (wall, pendant, pole) with surge/TVS protection rated for outdoor use.
| Technical Specifications | |
|
Image Sensor: |
1/3" Progressive Scan CMOS |
|
Effective Pixels: |
1280(H) × 720(V)/1920(H) × 1080(V) |
|
Signal System: |
PAL/NTSC |
|
Minimum Illumination: |
Color: 0.05Lux@( F1.6,AGC ON); B/W: 0.005Lux@( F1.6,AGC ON), 0 Lux with IR |
|
White Balance: |
Auto / Manual / ATW / Indoor / Outdoor |
|
AGC: |
Auto/Manual |
|
BLC: |
ON/OFF |
|
WDR: |
Support |
|
Shutter Time: |
1-1/10,000s |
|
Day& Night: |
ICR |
|
Digital Zoom: |
16X |
|
Privacy Masking: |
8 privacy masks programmable |
|
Auto Focus: |
Auto / Semi-automatic / Manual |
|
Focal Length: |
4-92.0mm, 23x |
|
Zoom Speed: |
Approx.3s(Optical Wide~Tele) |
|
Angle of View: |
49-2.2 degree(Wide-Tele) |
|
Minimum Working Distance: |
10~1,000mm(Wide~Tele) |
|
Aperture Range: |
F1.4-F3.5 |
|
Pan Range: |
360°endless |
|
Pan Speed: |
Pan Manual Speed: 0.1°~80°/s, Pan Preset Speed: 80°/s |
|
Tilt Range: |
-15°-90° (Auto Flip ) |
|
Tilt Speed: |
Tilt Manual Speed: 0.1°~80°/s, Tilt Preset Speed: 80°/s |
|
Proportional Zoom: |
Rotation speed can be adjusted automatically according to zoom multiples |
|
Number of Preset: |
256 |
|
Patrol: |
8 patrols, up to 32 presets per patrol |
|
Pattern: |
4 patterns, with the total recording time not less than 10 minutes |
|
Power loss recovery: |
Support |
|
Park Action: |
Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
|
PTZ Position Display: |
ON/OFF |
|
Freeze Frame: |
Support |
|
Infrared |
|
|
IR irradiation distance: |
100m |
|
IR irradiation angle: |
Adjustable by zoom |
|
General |
|
|
RS-485 Protocols: |
HIKVISION, Pelco-P, Pelco-D, self-adaptive |
|
Menu Language: |
English |
|
Power Supply: |
12V DC |
|
Power Consumption: |
Max.18W |
|
Working Temperature/Humidity: |
-30 °C-65°C(-22°F-149°F) |
|
Protection Level: |
IP66 standard (outdoor dome) |
|
Mounting: |
Various mounting modes optional |
|
Dimensions: |
Φ164.5(mm)×295(mm) |
|
Weight (approx.): |
2Kg (4.41Ibs) |
|
Mount Option: |
Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; |
