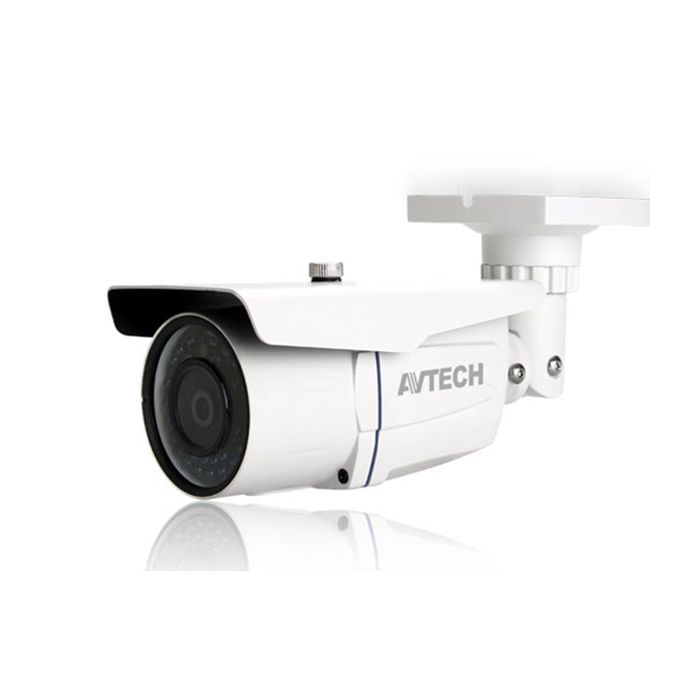

Avtech DG-205BP HD 1080P CCTV Security Camera in bd
Feature
Sensor Type: 1 / 2.7 "CMOS image sensor
- Resolution: 2MP (1080P @ 30fps / 25fps @ 1080P)
- Minimum Sensitivity: 0.1 Lux / F1.4 (WIDE) ~ F2.8 (TELE), 0Lux (IR LED ON)
- Number of LEDs: 36
- The scope of activities of the infrared: up to 25 m
- Transmission on coaxial cable: up to 500m
SPECIFICATIONS AVTECH DG205BP
|
BLOOD |
DG205BP |
|
Image sensor |
1 / 2.7 "CMOS image sensor SONY |
|
Number of pixels |
1936 (H) x 1088 (V) |
|
Video frame rate |
1080P @ 30fps / 25fps 1080P @ |
|
Minimum Sensitivity |
0.1Lux / F1.4 (wide) ~ F2.8 (telephoto), 0 Lux (IR LED ON) |
|
System S / N |
More than 48dB (AGC OFF) |
|
Shutter speed |
1/30 (1/25) sec ~ 1/720000 (1/600000) sec |
|
Lens |
f2.8 ~ 12mm / F1.4 ~ F1.8 |
|
Angle lens |
Wide: 104 ° (Horizontal) / 56 ° (Vertical) / 124 ° (Diagonal) |
|
Infrared lights |
36 units |
|
IR effective distance |
Up to 25m |
|
IRShift |
Neck |
|
IRIS mode |
AES |
|
White Balance |
AUTO / USER / PUSH / 8000K / 6000K / 4200K / 3200K |
|
AGC |
Custom |
|
Sharpness |
Custom |
|
Flickerless |
50HZ / 60HZ / OFF |
|
BLC |
Custom |
|
IP Standard |
IP66 |
|
Operating temperature |
-25 ℃ ~ 50 ℃ |
|
Power Source (± 10%) |
DC12V / 0.5A |
|
Current Power Consumption (± 10%) |
400mA |
