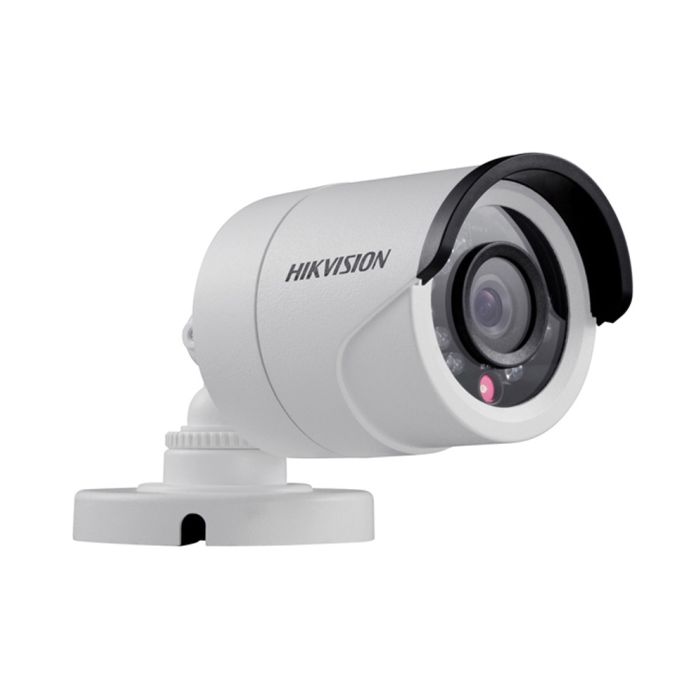

HIKVISION Bullet IR CCTV Camera

Camera

Image Sensor:

2MP CMOS Image Sensor

Effective Pixels:

1984(H)*1105(V)

Min. Illumination:

0.01 Lux @ (F1.2,AGC ON),0 Lux with IR

Lens:

2.8mm, 3.6mm, 6mm optional
Angle of View: 105.8°(2.8mm), 84.3°(3.6mm), 55.4°(6mm)

Lens Mount:

M12

Adjustment Range:

Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°

Day& Night:

IR cut filter with auto switch

Video Frame Rate:

PAL: 1080p@25fps
NTSC: 1080p@30fps

HD Video Output:

1 Analog HD output

S/N Ratio:

More than 62 dB

Menu

D/N Mode:

Color/ BW/ EXT

Auto White Balance:

Auto / Manual

BLC:

Support

AGC:

Support

Function:

Digital noise reduction, Mirror

General

Operating Conditions:

-40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)

Power Supply:

12 V DC±10%

Power Consumption:

Max. 4W

Weather Proof:

IP66

IR Range:

Up to 20m

Dimension:

Φ70×149.5 mm (Φ2.76” ×5.89”)

Weight:

360 g (0.79 lb)
