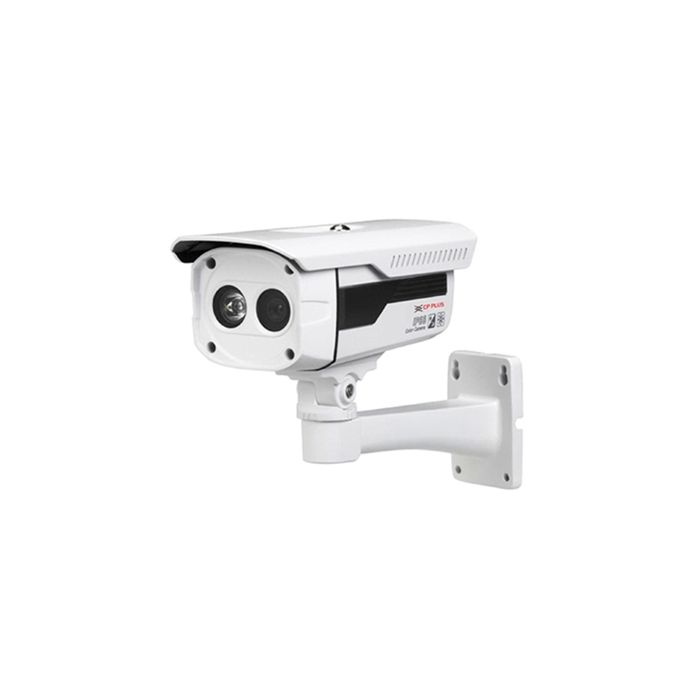

CP PLUS CP-UVC-T1100R3 Bullet Camera
CP PLUS CP-UVC-T1100R3 Bullet Camera
Brand: CP PLUS
Model: CP-UVC-T1100R3
Image Sensor: 1/2.9″ HQIS Pro CMOS
Resolution: 1 MP (approx. 720p)
Frame Rate: 25/30 fps @ 720p
Lens: Fixed 6 mm (optional 2.8 mm, 3.6 mm, 8 mm)
Minimum Illumination: Color: ~0.01 Lux @ F1.2
CP PLUS CP-UVC-T1100R3 Bullet Camera
The CP PLUS CP-UVC-T1100R3 is a reliable HD-CVI bullet camera designed for outdoor surveillance in Bangladesh. With a 1 MP resolution, up to ~30 metres IR night-vision, IP66 weather-proof housing and versatile lens options, it offers solid performance for home or light-commercial security applications.
Key Features
-
1 Megapixel resolution (720p) delivering crisp HD video for monitoring and evidence.
-
1/2.9″ HQIS Pro image sensor ensures sensitivity and clarity in varied lighting conditions.
-
Day/Night functionality with ICR, automatic white balance (AWB), automatic gain control (AGC), back light compensation (BLC) and 3D-DNR noise reduction for improved image quality in challenging environments.
-
Fixed 6 mm lens (with optional 2.8 mm, 3.6 mm, 8 mm variants) offering field-of-view flexibility.
-
Infra-red illumination up to approximately 30 metres, supporting night-time monitoring when lighting is low.
-
Robust outdoor housing rated IP66 for protection against dust and heavy rain — suitable for Bangladesh’s weather.
-
Low power consumption and simple installation (supports 12 V DC).
Technical Specification
|
Specification |
Details |
|
Image Sensor |
|
|
Resolution |
|
|
Frame Rate |
|
|
Lens |
|
|
Minimum Illumination |
|
|
IR Illumination Range |
|
|
Video Output |
|
|
Weather-Proofing |
|
|
Operating Temperature |
|
|
Power Supply |
12 V DC ±10% l |
|
Power Consumption |
Max ~4.9 W |
|
Dimensions |
~200.2 mm × 89.1 mm × 161.2 mm |
|
Weight |
Approx. 0.58 kg |
