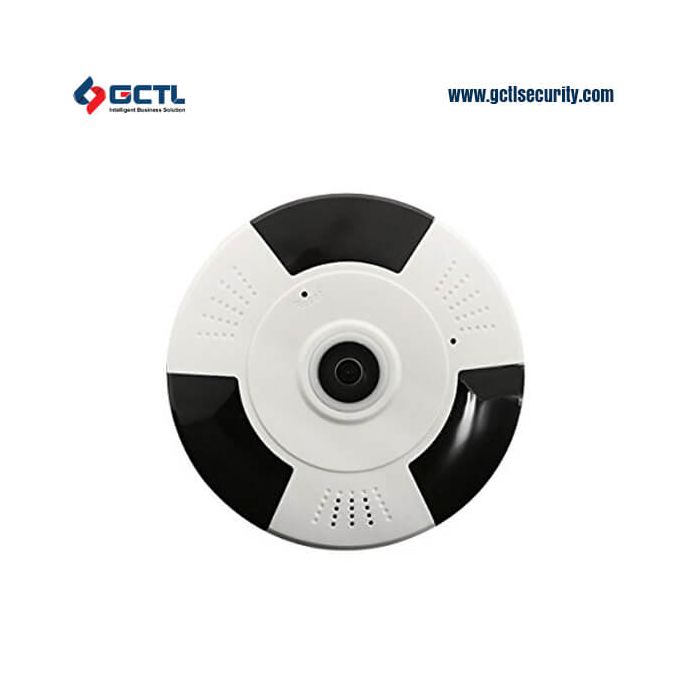

Varito FISHEYE CCTV Security Camera Solutions
BDT 0.00
In stock
SKU
GCT10146
| Video Output | Network |
| Image Sensor | IMX123 |
| Main Processor | S2L55 |
| Image resolution | 3MP |
| Effective Pixels | 2065(H)*1553(V) |
| Video/Audio compression | H.264/JPEG/AVI/MJPEG |
| Focus Length | 2.8-12mm |
| Focus Control | Manual |
| Lens Type | Manual |
| Pixels | 4M Pixels |
| IR LED | 42µ x 6PCS |
| IR Distance | 90M |
| WDR | Yes |
| Housing | IP66 |
| IR Cut Filter | Yes |
| Power Source | 04- DC12V±10%, 1000mA |
| Dimension | 61- 290(W) x 92(H) x 80(D)mm |
| Weight | 1400g |
| Electronic Shutter | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec |
| S/N Ratio | ≥52dB |
| TV System | PAL/NTSC |
| Scanning System | Progressive Scan |
| IR Status | Under 10 Lux by CDS |
| IR Power On | CDS Auto Control |
| Day/Night | Color/ B&W (IR-CUT ) |
| Operation Temperature | -20℃ ~ +60℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| NETWORK Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP |
| IE Browser | IE8-11, Google Chrome, Firefox, Safari, Mac Safari |
| Mobile Phone supported | iPhone, iPad, Android, Android Pad |
| Ethernet | RJ-45 (10/100Base-T) |
| ONVIF | Support ONVIF 2.4 |
| P2P | YES, Support QR Code |
| POE | Optional, Support IEEE 802.3af |
| WIFI | NO |
| Video Delay | 0.3S (Within the Lan) |
| Main Stream 1 | 2048*1536@30fps |
| Main Stream 2 | 1920*1080@30fps |
| Main Stream 3 | No |
| Sub Stream 1 | 720*480@30fps |
| Sub Stream 2 | NO |
| Sub Stream 3 | 640*360@30fps |
| Sub Stream 4 | No |
| Tri Stream 1 | 352*288@30fps |
| Tri Stream 2 | No |
| Image Configuration | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control) |
| Corridor Pattern | Not supported |
| Defog Mode | Not supported |
| ROI | Not supported |
| BLC | Not supported |
| HDR | Not supported |
| Motion Detection | Support |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR/NAS/CMS/Web |
| Language | Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands |
| Anti-cut Bracket | YES, Anti-Cut Bracket |
