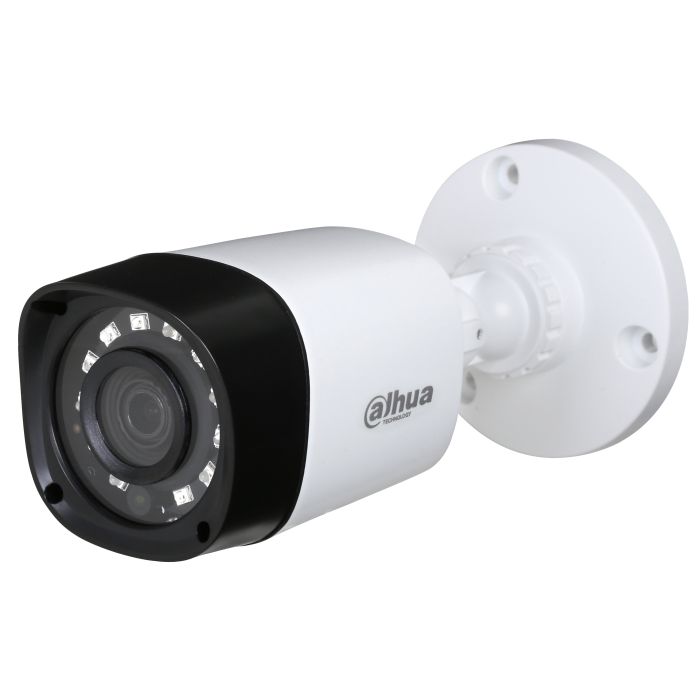

Dahua CCTV Camera in Bangladesh
FEATURES:
1/4" 1Megapixel CMOS
25/30fps@720P
High speed, long distance real-time transmission
HD and SD switchable
OSD Menu, control over coaxial cable
DWDR, Day/Night(ICR), AWB, AGC, BLC, 2DNR
3.6mm fixed lens (2.8mm optional)
Max. IR LEDs length 20m, Smart IR
IP67, DC12V
Brand : Dahua CCTV Camera
Model : DH-HAC-HFW1000R
FEATURES:
1/4" 1Megapixel CMOS
25/30fps@720P
High speed, long distance real-time transmission
HD and SD switchable
OSD Menu, control over coaxial cable
DWDR, Day/Night(ICR), AWB, AGC, BLC, 2DNR
3.6mm fixed lens (2.8mm optional)
Max. IR LEDs length 20m, Smart IR
IP67, DC12V
|
Camera |
|
|
Image Sensor |
1/4" 1Megapixel CMOS |
|
Effective Pixels |
1280(H)×720(V) |
|
Electronic Shutter |
1/50s~1/100,000s |
|
Video Frame Rate |
25fps@720P |
|
Synchronization |
Internal |
|
Mini. Illumination |
0.05Lux/F2.0, 0Lux IR on |
|
Video Output |
1-channel BNC high definition video output/ CVBS standard definition video output (Can switch) |
|
CCTV Camera Features |
|
|
Max. IR LEDs Length |
20m, Smart IR |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
Backlight Compensation |
DWDR |
|
Noise Reduction |
2D |
|
OSD Menu |
Support |
|
Lens |
|
|
Focal Length |
3.6mm (2.8mm optional) |
|
Angle of View |
H: 60° (83.4°) |
|
Mount Type |
M12 |
|
General |
|
|
Power Supply |
DC12V±25% |
|
Power Consumption |
Max 2.8W |
|
Working Environment |
-40°C~+60°C / Less than 95%RH (no condensation) |
|
Transmission Distance |
Over 800m via 75-3 coaxial cable |
|
Ingress Protection |
IP67 |
|
Dimensions(W×D×H) |
F70mm×154mm |
|
Weight |
0.2kg |
|
Material |
Plastic |
Dahua Penta-brid Technology:
Dahua XVR is a newly developed HD Video Recorder based on industry leading open structure to be compatible with multiple access technologies. It is the perfect solution to upgrade existing video surveillance systems. XVR supports 4 mainstream analog camera types in the market, not only traditional CVBS (analog) camera, but also HDCVI, AHD and TVI, as well as IP camera. Moreover, XVR recognizes the signal formats from camera automatically, including both Dahua camera and third-party camera. True plug & play makes operation more users friendly and convenient. All these features make XVR a true Penta-brid video recorder.
