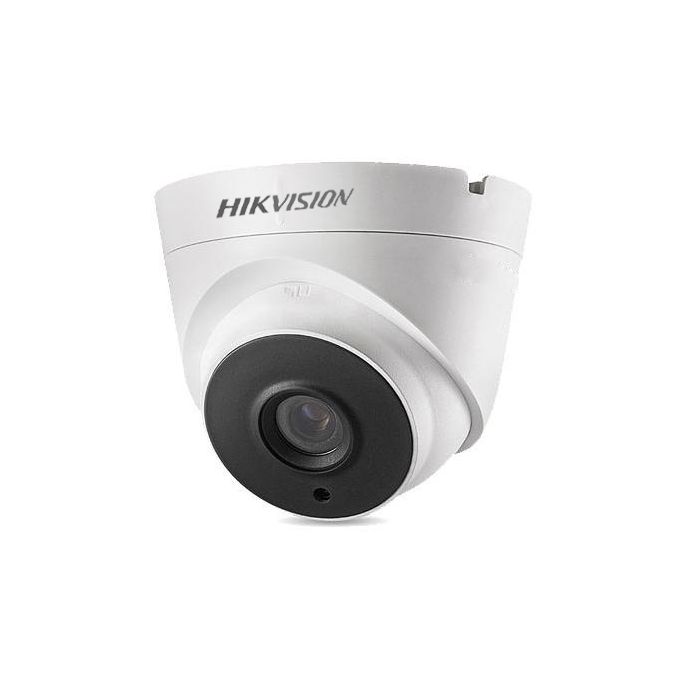

Hikvision DS-2CE56C0T-IT3 1 Megapixel CCTV Camera
Hikvision DS-2CE56C0T-IT3F IR Dome CC Camera
1 Megapixel high-performance CMOS
Analog HD output, up to 720P resolution
True Day/Night
DNR, Smart IR
EXIR technology, up to 20m/40m IR distance
IP66 weatherproof
Hikvision DS-2CE56C0T-IT3F IR Dome CC Camera
The Hikvision DS-2CE56C0T-IT3F IR Dome CC Camera delivers reliable high-definition surveillance performance at an affordable price. Equipped with a 1-megapixel CMOS sensor, it captures sharp 720P HD video for both indoor and outdoor environments.
Thanks to its up to 40-meter IR range and Smart IR technology, the camera ensures crystal-clear visibility even in complete darkness. The True Day/Night function automatically switches between color and black-and-white modes based on lighting conditions, maintaining accurate monitoring around the clock.
Built with a durable IP66 weatherproof housing, the DS-2CE56C0T-IT3F stands strong against dust, rain, and harsh environments. It’s fully compatible with Hikvision Turbo HD DVRs, making it a perfect upgrade choice for analog CCTV systems seeking HD quality without rewiring.
Compact, discreet, and easy to install, this IR dome camera is ideal for home security, office monitoring, retail shops, and small business premises providing 24/7 protection with proven Hikvision reliability.
Technical Specification
|
Details Information |
|
|
Image Sensor |
1MP CMOS Image Sensor |
|
Signal System |
PAL/NTSC |
|
Effective Pixels |
1296(H)x732(V) |
|
Min. Illumination |
0.1 Lux @(F1.2,AGC ON), 0 Lux with IR |
|
Shutter Time |
1/25(1/30) s to 1/50,000 s |
|
Lens |
3.6mm (2.8mm, 6mm, 8mm optional), Angle of View: 70.9°(3.6mm), 92°(2.8mm), 56.7°(6mm), 38.6°(8mm) |
|
Lens Mount |
M12 |
|
Adjustment Range |
Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° |
|
Day& Night |
IR cut filter with auto switch |
|
Video Frame Rate |
720p@25fps/720p@30fps |
|
HD Video Output |
1 Analog HD output |
|
Power Supply |
12 VDC±15% |
|
Power Consumption |
Max. 4W |
|
Weather Proof |
IP66 |
|
IR Range |
Up to 20m |
|
Dimension |
Φ110 × 93.2 mm(Φ4.33” × 3.67”) |
|
Weight |
350 g |
