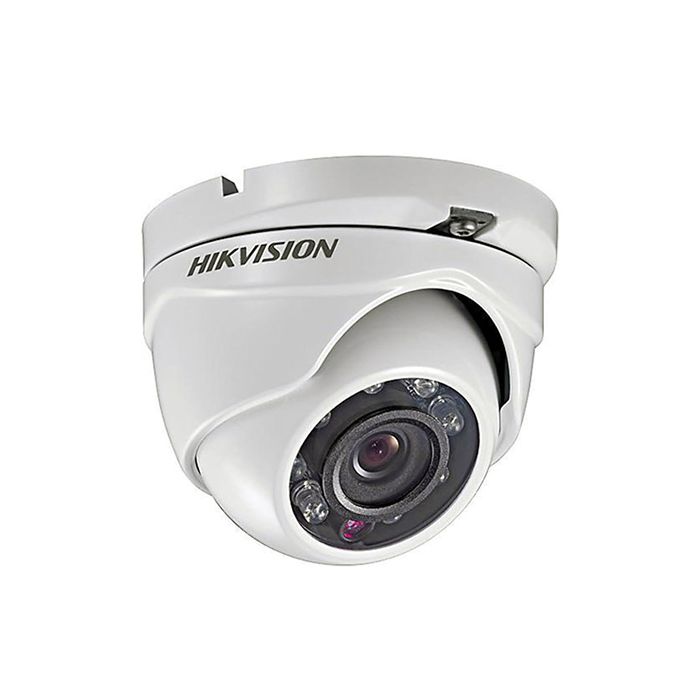

Hikvision DS-2CE56D1T-IRM HD1080P IR Dome Camera
Hikvision DS-2CE56D1T-IRM HD1080P IR Dome Camera
Brand : HIKVISION
Model : DS-2CE56D1T-IRM
Image Sensor: 1/2.7″ 2 MP CMOS
Maximum Resolution: 1920 × 1080 (HD1080p)
Minimum Illumination: Approx. 0.01 Lux @ F1.2
Lens Options: 2.8mm (≈105°)
IR Distance: Up to ~20 Metres
Day/Night Mode: ICR (Mechanical IR-cut)
Housing / Protection: IP66 Rated
Hikvision DS-2CE56D1T-IRM HD1080P IR Dome Camera
This 2 megapixel HD1080p IR dome camera delivers high-definition analog video output for reliable outdoor surveillance. Featuring Smart IR up to ~20 metres, a rugged IP66-rated housing, fixed lenses and True Day/Night functionality, it’s ideal for securing driveways, shopfronts or general outdoor areas with analog HD systems.
Key Features
-
2 MP (1920 × 1080) resolution for crisp Full HD imagery and enhanced identification.
-
Smart EXIR IR illumination with up to approximately 20 metres of night-vision coverage in total darkness.
-
True Day/Night (mechanical IR-cut filter) supporting colour in daylight and B/W at night for clearer low-light video.
-
Weatherproof IP66-rated housing for dust and heavy rain protection — suitable for outdoor installations.
-
Fixed-focal lens options (2.8mm, 3.6mm, 6mm) providing wide to medium field of view to adapt to different scenes.
-
Built-in digital image enhancements like BLC (Back-Light Compensation), Smart IR and OSD menu control for adjusting settings via coax (in compatible systems).
Technical Specification
|
Specification |
Details |
|
Image Sensor |
|
|
Maximum Resolution |
|
|
Minimum Illumination |
Approx. 0.01 Lux @ F1.2 (AGC ON); 0 Lux with IR on |
|
Lens Options |
|
|
IR Distance |
|
|
Day/Night Mode |
|
|
Housing / Protection |
|
|
Operating Conditions |
|
|
Power Supply |
|
|
Power Consumption |
|
|
Output Type |
Analog HD output (TVI) and sometimes CVBS (depending variant) |
