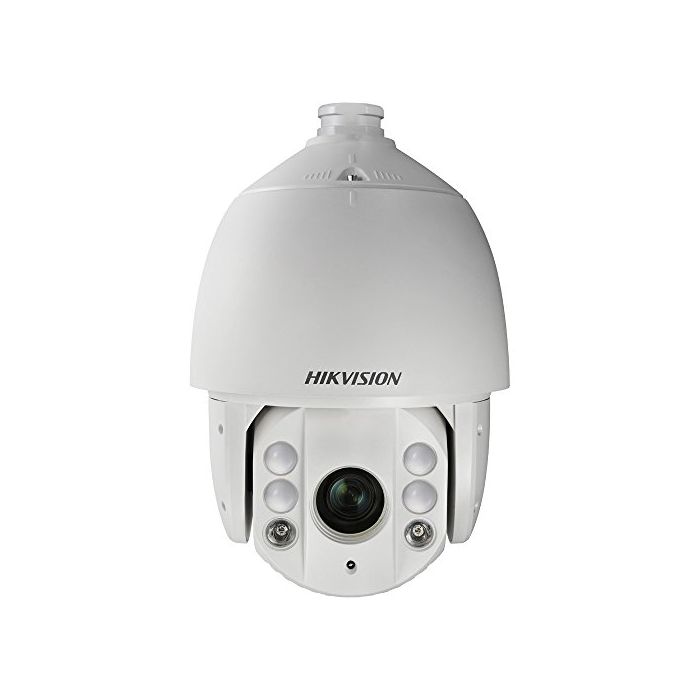

HIKVISION DS-2DE7174-AE IP Dome CCTV Security Camera
HIKVISION DS-2DE7174-AE 1.3MP Network IR PTZ Dome Camera Gives you HD quality video, H.264 video compression, remote internet viewing, motion detection, night-vision also, it is smartphone ompatible (iPhone, Android & Blackberry) as well as viewable over the internet network using IE browser (no app necessary).The camera functions well as part of a home or office security system with remote internet monitoring ability.
HIKVISION DS-2DE7174-AE 1.3MP Network IR PTZ Dome Camera adopts a 720p HD video quality (1280 x 720) as well as a high-speed video protocol processor. As a result, it is capable of H.264 video compression allowing for extremely smooth video transmission with minimal bandwidth consumption. Also,due to the small file sizes produced by H.264 video compression, it can save tremendous hard drive space when doing video recording.
Brand : HIKVISION
Model : DS-2DE7174-AE
FEATURES:
1/3’’ Progressive Scan CMOS
1280 × 960 HD resolution
30X / 20X optical zoom, 16X digital zoom
100m IR distance
True Day/Night, 3D DNR, Digital WDR
3D intelligent positioning
24VAC / High-PoE power supply
|
Image Sensor: |
1/3" Progressive Scan CMOS |
|
Effective Pixels: |
1320K pixels |
|
Horizontal Resolution: |
1280 |
|
Signal System: |
PAL/NTSC |
|
Minimum Illumination: |
Color : 0.05 lux (F1.4, 1/30 sec, 50 IRE, AGC |
|
White Balance: |
Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
|
AGC: |
Auto/Manual |
|
S/N Ratio: |
≥ 52dB |
|
BLC: |
ON/OFF |
|
HLC: |
Support |
|
Smart defog: |
Support |
|
WDR: |
Support |
|
Shutter Time: |
1 ~1/10,000s |
|
Day& Night: |
ICR |
|
Digital Zoom: |
16X |
|
Privacy Masking: |
2 privacy masks programmable |
|
Auto Focus: |
Auto / Semi-automatic / Manual |
|
LENS |
|
|
Focal Length: |
4.7 ~ 94.0mm, 20x |
|
Zoom Speed: |
Approx.3s(Optical Wide-Tele) |
|
Angle of View: |
58.3 ~ 3.2 degree (Wide-Tele) |
|
Minimum Working Distance: |
10 ~ 1,000mm(Wide-Tele) |
|
Aperture Range: |
F1.4 ~ F3.5 |
|
Pan & Tilt |
|
|
Pan Range: |
360°endless |
|
Pan Speed: |
Pan Manual Speed: 0.1° ~250°/s, Pan Preset Speed: 300°/s |
|
Tilt Range: |
-15°-90° (Auto Flip ) |
|
Tilt Speed: |
Pan Manual Speed: 0.1° ~ 160°/s,Pan Preset Speed: 240°/s |
|
Proportional Zoom: |
Rotation speed can be adjusted automatically according to zoom multiples |
|
Number of Preset: |
300 |
|
Patrol: |
8 patrols, up to 32 presets per patrol |
|
Power loss recovery: |
Support |
|
Park Action: |
Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
|
PTZ Position Display: |
ON/OFF |
|
Infrared |
|
|
IR irradiation distance: |
120m |
|
IR irradiation angle: |
Automatically adjusted, depending on the zoom ratio |
|
Alarm |
|
|
Alarm Input: |
2 (0-5v DC) |
|
Alarm Output: |
1 relay output, alarm response actions configurable |
|
Alarm Actions: |
Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage |
|
Input & Output |
|
|
Audio Input: |
Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10% |
|
Audio Output: |
1 Audio output interface |
|
Network |
|
|
Ethernet: |
10Base -T, /100Base-TX, RJ45 Connector |
|
Max.Image Resolution: |
1280×960 |
|
Frame Rate: |
50Hz: 25 fps (1280×960) , 25 fps (1280×720) |
|
Main Stream: |
50Hz:25fps(1280×960), 25fps (1280×720) |
|
Sub Stream: |
50Hz: 25fps(704×576), 25fps (352×288), 25fps (176×144) |
|
Image Compression: |
H.264 / MJPEG |
|
ROI encoding: |
Support 2 areas with adjustable levels |
|
Audio Compression: |
G.711/G.722/G.726/MP2L2 |
|
Audio Mode: |
OFF/Audio input/Audio output |
|
Protocols: |
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE |
|
No. of Simultaneous Users: |
Up to 20 users |
|
Dual Stream: |
Support |
|
Mini SD Card: |
Micro SD Slot, up to 64GB, edge recording |
|
User/Host Level: |
Up to 32 users, 3 Levels: Administrator, Operator, User |
|
Security Measures: |
User authentication (ID and PW), |
|
EZVIZ: |
Support |
|
Client GUI |
|
|
Camera Control: |
Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
|
Web Browser: |
IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 + |
|
General |
|
|
Menu Language: |
English |
|
Power Supply: |
24 VAC & Hi-PoE |
|
Power Consumption: |
max. 30W |
|
Working Temperature/Humidity: |
-30°C ~ 65°C(-22°F ~ 149°F)/90% or less |
|
Protection Level: |
IP66; TVS 4,000V lightning protection, surge protection and voltage transient protection |
|
Dimensions: |
Φ220 × 353.4mm (Φ8.66” × 13.91”) |
|
Weight (approx.): |
4.5kg(9.92lbs) |
