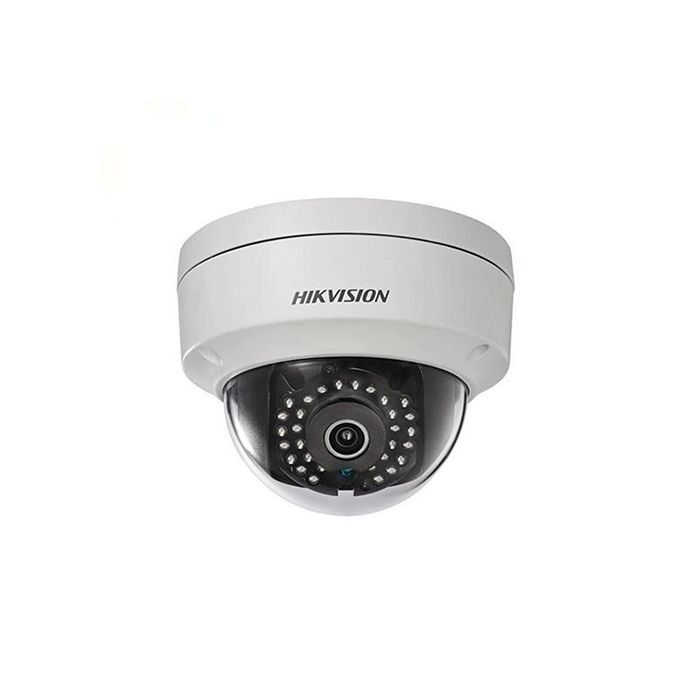

HIKVISION DS-2CD2112F-I 1.3MP CCTV Security Camera
HIKVISION DS-2CD2112F-I 1.3MP CCTV Security Camera Gives you HD quality video compression, remote internet viewing, motion detection,night-vision also, it is smartphone compatible (IPhone, Android & Blackberry) as well as viewable over the internet network using IE browser (no app necessary).The camera functions well as part of a home or office security system with remote internet monitoring ability.
HIKVISION DS-2CD2112F-I 1.3MP CCTV Security Camera adopts a best HD video quality 1.3MP high-resolution real-time video as well as up to 1280x960 high-speed video protocol processor. As a result, it is capable of H.264/MJPEG video compression allowing for extremely smooth video transmission with minimal bandwidth consumption. Also, due to the small file sizes produced by H.264/MJPEG video compression, it can save tremendous hard drive space when doing video recording.
Brand : HIKVISION
Model : DS-2CD2112F-I
FEATURES:
1.3MP 1/3'' Progressive scan CMOS
Support dual streams
Up to 30 meters IR range
Two-way audio
Audio/Alarm I/O
Support Wi-Fi
IR cut filter with auto switch
DC12V & PoE
Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
Ingress Protection level: IP66, IK10
Features of CCTV Camera:
|
Camera |
|
|
Image Sensor: |
1/3" Progressive Scan CMOS |
|
Min. Illumination: |
0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR |
|
Shutter time: |
1/3 s to 1/100,000 s |
|
Lens: |
4mm@ F2.0 (2.8mm, 6mm optional), Angle of view: 92.5°(2.8mm), 73.1°(4mm) , 46°(6mm) |
|
Lens Mount: |
M12 |
|
Adjustment Range: |
Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0-355° |
|
Day& Night: |
IR cut filter with auto switch |
|
Wide Dynamic Range: |
Digital WDR |
|
Digital noise reduction: |
3D DNR |
|
Compression Standard |
|
|
Video Compression: |
H.264/MJPEG |
|
H.264 code profile: |
Main Profile |
|
Video bit rate: |
32Kbps~12Mbps |
|
Audio Compression: |
-S: G.711/G.722.1/G.726/MP2L2 |
|
Audio bit rate: |
64Kbps(G.711) /16Kbps(G.722.1)/16Kbps(G.726) /32-128Kbps(MP2L2) |
|
Dual Stream: |
Yes |
|
Image |
|
|
Max. Image Resolution: |
1280x960 |
|
Frame Rate: |
50 Hz: 25 fps (1280 × 960), 25 fps (1280 x 720) |
|
Image Settings: |
Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
|
BLC: |
Yes, zone configurable |
|
ROI: |
Support |
|
Network |
|
|
Network Storage: |
Built-in Micro SD/SDHC/SDXC slot, up to 128G, NAS(NFS, SMB/CIFS) |
|
Alarm Trigger: |
Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
|
Protocols: |
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
|
General Function: |
One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy |
|
System Compatibility: |
ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
|
Interface |
|
|
Audio: |
1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model) |
|
Communication Interface: |
1 RJ45 10M / 100M Ethernet interface |
|
Alarm: |
-S: 1 alarm I/O |
|
Wi-Fi Specification (-W) |
|
|
Wireless Standards: |
IEEE802.11b, 802.11g, 802.11n |
|
Frequency Range: |
2.4 GHz ~ 2.4835 GHz |
|
Channel Bandwidth: |
20/40MHz Support |
|
Modulation Mode: |
802.11b: CCK, QPSK, BPSK |
|
Security: |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
|
Transmit Power: |
11b: 17±1.5dBm @ 11Mbps |
|
Receive Sensitivity: |
11b: -90dBm @ 11Mbps (Typical) |
|
Transmission Rate: |
11b: 11Mbps |
|
Wireless Range: |
50m(depend on environment) |
|
Protocols: |
802.11b: CCK, QPSK, BPSK |
|
General |
|
|
Operating Conditions: |
-30 °C ~ 60 °C (-22 °F ~ 140 °F) |
|
Power Supply: |
12 VDC ± 10%, PoE (802.3af) |
|
Power Consumption: |
Max. 5W |
|
Impact Protection: |
IK10 |
|
Weather Proof: |
IP66 |
|
IR Range: |
Up to 30m |
|
Dimensions: |
Φ111 × 82 (4.4” × 3.2”) |
|
Weight: |
500g (1.1 lbs) |
|
NOTE：: |
"-W" series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support |
Warranty:
Limited Warranty for IP CCTV Security Video Surveillance Products from Germany Computer And Telecom Limited . Our After Sales Support policies provides you the minimum 1-year warranty on all products.
