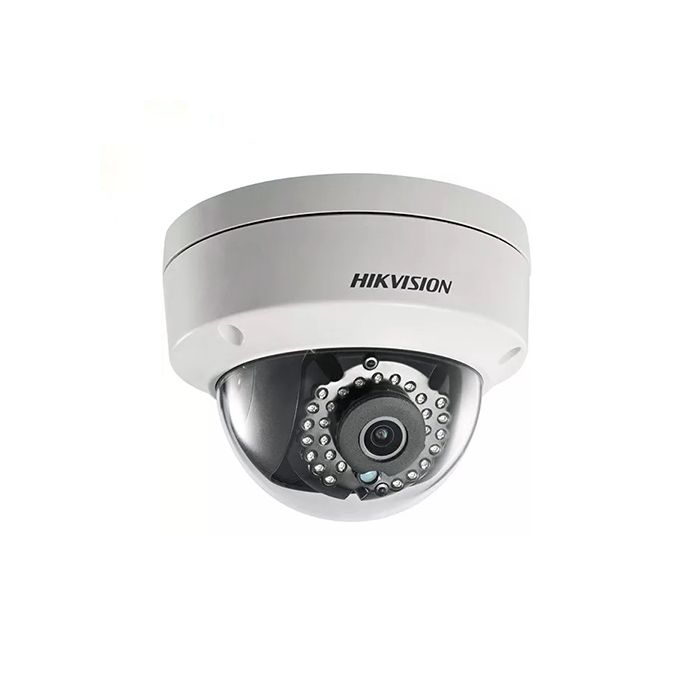

Hikvision DS-2CD2132-I 3MP IR Dome Camera

This 3 MP IR Fixed Dome Network Camera delivers ultra-high imaging clarity with 2048×1536 resolution and real-time HD1080p streaming. Equipped with Smart IR up to ~30 metres, IP66-rated outdoor housing, PoE convenience and advanced image enhancement features (WDR, 3D-DNR), it’s ideal for demanding surveillance applications in both indoor and outdoor environments.

Key Features

Up to 3 megapixels (2048×1536) resolution for detailed scene capture and enlarged view clarity.
Smart IR illumination enabling clear night-vision (approx. up to 30 m) even in complete darkness.
Wide dynamic range (WDR) and 3D digital noise reduction (3D-DNR) for better image quality in variable lighting and back-lit environments.
Outdoor-rated IP66 housing ensures resistance to dust and heavy rain—suitable for harsher environments.
Power-over-Ethernet (PoE) support simplifies installation by combining power and network over one cable.

Technical Specifications

Specification	Details
Image Sensor	1/3″ Progressive Scan CMOS
Maximum Resolution	2048 × 1536 @ up to 20 fps; 1920 × 1080 @ up to 30 fps
Minimum Illumination	~0.07 Lux @ F1.2 (AGC ON); 0 Lux with IR on
Lens Options	Fixed-focal (e.g., 2.8 mm, 4 mm, 6 mm, 12 mm)
IR Distance	Up to ~30 metres (approx.)
Compression Format	H.264 / MJPEG (dual-stream supported)
Network Interface	1 × RJ-45 10/100 Mbps Ethernet
Power Supply	12 V DC ±10% or PoE (802.3af)
Protection Rating	IP66 rated for outdoor use; Operating temp approx. -30 °C to +60 °C
Housing / Dimensions	Compact dome form; Approx. 82 × 111 × 111 mm; ~500 g weight
