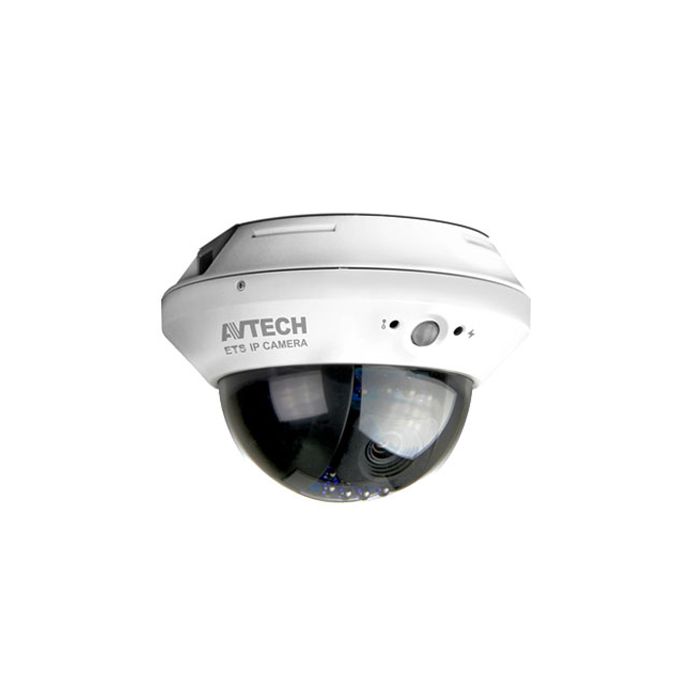

AVTECH IR Dome Network CCTV Camera
FEATURE
POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation costs
IR LED built-in for night surveillance with effective range up to 10 meters
Easy network setup with iPhone / iPad
Memory storage built-in for video recording
ONVIF standard supported to simplify system integration
External alarm I/O device connection
Remote SurveillanceFully compatibility on iPhone & iPad, and Internet Explorer® on Windows® operating system
Brand: AVTECH
Model: AVTECH AVM328A Megapixel IR Dome Network Camera
AVTECH is most renewed Brand in Bangladesh. It’s Country of origin Taiwan and a leading manufacturer of innovative CCTV surveillance products. AVTECH products, ranging from HD CCTV, IP camera, CCTV camera Bullet CCTV camera ,Dome CCTV camera and DVR, are designed with high cost-performance and all made with good quality. On top of that, its mobile app, Eagle Eyes, is also named as the most useful mobile apps in the world and it offers many convenient and special features such as Push Video. gctlsecurity is a leading CCTV video surveillance Security Camera manufacturer located in Bangladesh, developing high-quality analog & IP cameras, recorders, offering professional Project Solutions for Every Client all over Bangladesh.
CCTV Camera Features:
|
Network |
|
|
Network Compression |
H.264 / MPEG4 / MJPEG |
|
Multiple Video Streaming (Encode Modes, IPS, Resolution) |
3 (H.264, MJPEG, MPEG4) |
|
LAN Port |
YES |
|
LAN Speed |
10/100 Based-T Ethernet |
|
Supported Protocols |
DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP,IPv4, Bonjour, UPnP, DNS,UDP,IGMP, QoS |
|
ONVIF Compatible |
YES |
|
Frame Rate |
NTSC:30, PAL:25 |
|
Number of Online Users |
10 |
|
Security |
(1) Multiple user access levels with password |
|
Remote Access |
(1) Internet Explorer on Windows operating system |
|
Camera |
|
|
Image Sensor |
1/4" SONY HR image sensor |
|
Video Resolution |
SXGA, 720P, VGA, QVGA |
|
Min Illumination |
0.1 Lux / F1.5, 0 Lux (LED ON) |
|
Shutter Speed |
1 / 2 to 1 / 10,000 sec. |
|
S/N Ratio |
More than 48dB (AGC off) |
|
Lens |
f3.8mm / F1.5 |
|
Viewing Angle |
62.7°(Diagonal) |
|
IR LED |
YES |
|
IR Effective Range |
Up to 10 meters |
|
IR Shift |
YES |
|
White Balance |
ATW |
|
AGC |
Auto |
|
IRIS Mode |
AES |
|
POE |
YES (IEEE 802.3af) |
|
PIR Sensor |
Detection Range 76° wide angle with up to 6m long distance at 2m height (under 30°C) |
|
External Alarm I/O |
YES |
|
Microphone |
YES |
|
Speaker |
YES |
|
Power Source (±10%) |
5V / 1A |
|
Operating Temperature |
0℃~40℃ |
|
Others |
|
|
Mobile Surveillance |
iPad / iPhone / Android mobile device |
|
Motion Detection |
YES |
|
Event Notification |
FTP / Email |
|
RTC (real-time clock) |
YES |
|
Digital Pan / Tilt / Zoom |
YES |
|
Minimum Web Browsing Requirements |
- Pentium 4 CPU 1.3 GHz or higher, or equivalent AMD |
Warranty:
Limited Warranty for IP CCTV Security Video Surveillance Products from Germany Computer and Telecom Limited. Our After Sales Support policies provide you the minimum 1-year warranty on all products.
