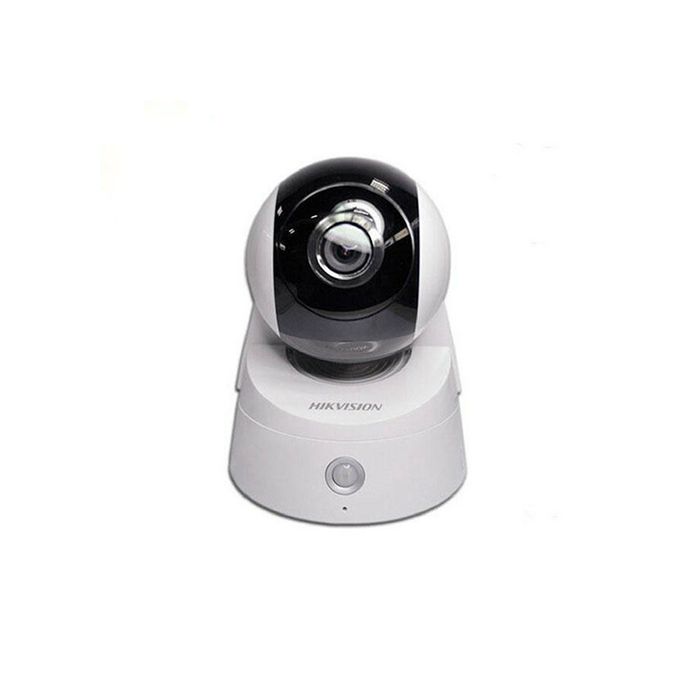

HIKVISION DS-2CD2Q10FD-IW 1.0MP Network Dome Camera
HIKVISION DS-2CD2Q10FD-IW 1.0MP Network Dome Camera Gives you HD quality video, H.264 video compression, remote internet viewing, motion detection,night-vision also, it is smartphone compatible (iPhone, Android & Blackberry) as well as viewable over the internet network using IE browser (no app necessary). The camera functions well as part of a home or office security system with remote internet monitoring ability.
HIKVISION DS-2CD2Q10FD-IW 1.0MP Network Dome Camera adopts a 720p HD video quality (1280 x 720) as well as a high-speed video protocol processor. As a result, it is capable of H.264 video compression allowing for extremely smooth video transmission with minimal bandwidth consumption. Also, due to the small file sizes produced by H.264 video compression, it can save tremendous hard drive space when doing video recording.
Brand : HIKVISION
Model : DS-2CD2Q10FD-IW
FEATURES:
1/4” Progressive Scan CMOS
Up to 1.0-megapixel resolution
Support motorized Pan & Tilt
Digital WDR
3D DNR
IR range approx. 10 meters
Support Wi-Fi, support WPS configuration with one touch (-W)
Two-way audio
Built-in microphone and speaker
Support 128G on-board storage
5V DC±10%
|
Image Sensor: |
1/4" progressive scan CMOS |
|
Min. Illumination: |
0.01Lux @(F1.2,AGC ON) , 0.028Lux @(F2.0,AGC ON) ,0 Lux with IR |
|
Shutter time: |
1/3 s ~ 1/100,000 s |
|
Lens: |
4mm@ F2.0, Angle of view: 52.4° (2.8mm, 6mm optioanl) |
|
Lens Mount: |
M12 |
|
Adjustment Range: |
Pan: 0° - 355°, Tilt: -20° - 90° |
|
Day& Night: |
IR cut filter with auto switch |
|
Wide Dynamic Range: |
Digital WDR |
|
Compression Standard |
|
|
Video Compression: |
H.264/MJPEG |
|
H.264 code profile: |
Baseline Profile / Main Profile |
|
Video bit rate: |
32Kbps~8Mbps |
|
Audio Compression: |
G.711/G.722.1/G.726/MP2L2 |
|
Audio bit rate: |
64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
|
Image |
|
|
Max. Image Resolution: |
1280 × 720 |
|
Frame Rate: |
50Hz: 25fps(1280 × 720, 704 × 576, 640 × 480) |
|
Image Enhancement: |
BLC/3D DNR/ROI |
|
Image Settings: |
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
|
Day/Night Switch: |
Auto/Schedule/Triggered by Alarm In |
|
Network |
|
|
Network Storage: |
Micro SD/SDHC/SDXC card with ANR (up to 128G), NAS (Support NFS, SMB/CIFS) |
|
Alarm Trigger: |
Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
|
Protocols: |
Intrusion Detection, Line Crossing detection, Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception |
|
General Function: |
User Authentication, Watermark, IP address filtering, Anonymous access |
|
System Compatibility: |
ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
|
Wi-Fi Specification (-W) |
|
|
Wireless Standards: |
IEEE802.11b, 802.11g, 802.11n |
|
Frequency Range: |
2.4 GHz ~ 2.4835 GHz |
|
Channel Bandwidth: |
20/40MHz Support |
|
Modulation Mode: |
802.11b: CCK, QPSK, BPSK |
|
Security: |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
|
Transmit Power: |
11b: 17±1.5dBm @ 11Mbps |
|
Receive Sensitivity: |
11b: -90dBm @ 11Mbps (Typical) |
|
Transmission Rate: |
11b: 11Mbps |
|
Wireless Range: |
50m(depend on environment) |
|
General |
|
|
Operating Conditions: |
-30 °C ~ 60 °C (-22 °F ~ 140 °F) |
|
Power Supply: |
5 V DC ± 10% |
|
Power Consumption: |
Max. 7 W |
|
IR Range: |
10 meters |
|
PIR: |
Angle: 80°, Range: 10m |
|
Dimensions: |
100.8×124 mm (3.97” × 4.88” ) |
|
Weight: |
300 g (0.66 lbs) |
|
NOTE：: |
"-W" series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support |
Warranty:
Limited Warranty for IP CCTV Security Video Surveillance Products from Germany Computer And Telecom Limited . Our After Sales Support policies provides you the minimum 1-year warranty on all products.
