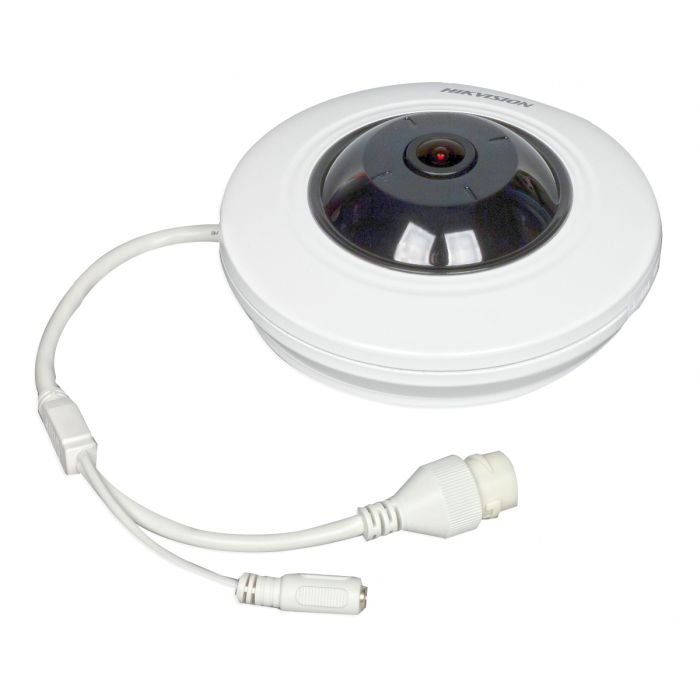

HIKVISION DS-2CD2942F-IS 4MP Compact Fisheye Network POE CCTV Camera
HIKVISION DS-2CD2942F-IS 4MP Network Fisheye cctv Camera Gives you HD quality video compression, remote internet viewing, motion detection,night-vision also, it is smartphone compatible (IPhone, Android & Blackberry) as well as viewable over the internet network using IE browser (no app necessary). The camera functions well as part of a home or office security system with remote internet monitoring ability.
Hikvision 4MP Compact Fisheye Network Camera adopts a best HD video quality 4mp as well as a high-speed video protocol processor. As a result, it is capable of H.264/MJPEG video compression allowing for extremely smooth video transmission with minimal bandwidth consumption. Also,due to the small file sizes produced by H.264/MJPEG video compression, it can save tremendous hard drive space when doing video recording.
Brand : HIKVISION
Model : DS-2CD2942F-IS
FEATURES:
1/3” Progressive Scan CMOS
Up to 4 megapixel resolution
Fisheye & PTZ view
3D DNR
-I: IR range approx. 8 meters
-W: Support Wi-Fi, support WPS configuration with one touch
-S: audio & alarm I/O
Support 128G on-board storage
12 VDC ± 10% / PoE
|
Camera |
|
|
Image Sensor: |
1/3" Progressive Scan CMOS |
|
Min. Illumination: |
Color: 0.01lux @(F1.2, AGC ON), 0.018lux @(F1.6, AGC ON), 0 lux with IR |
|
Shutter time: |
1/3 s ~ 1/100,000 s |
|
Slow shutter: |
Support |
|
Lens: |
1.6mm, F1.6 Angle of view: 186°(horizontal), 106°(vertical) |
|
Lens Mount: |
M12 |
|
Day& Night: |
Electronic (-I: IR cut filter with auto switch) |
|
Compression Standard |
|
|
Video Compression: |
H.264/MJPEG |
|
H.264 code profile: |
Baseline Profile / Main Profile |
|
Video bit rate: |
32Kbps~8Mbps |
|
Audio Compression: |
G.711/G.722.1/G.726/MP2L2 |
|
Audio bit rate: |
64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
|
Image |
|
|
Max. Image Resolution: |
2560 × 1440 |
|
Frame Rate: |
50Hz: 12.5fps(2560 × 1440), 25fps(1920 × 1080, 1280 × 720) |
|
Image Enhancement: |
BLC/3D DNR/ROI/Defog |
|
Image Settings: |
Saturation, Brightness, Contrast , Hue, Sharpness, AGC, White Balance |
|
Day/Night Switch: |
Auto/Schedule/Triggered by Alarm In |
|
Network |
|
|
Network Storage: |
Built-in Micro SD/SDHC/SDXC slot, up to 128G, NAS(NFS, SMB/CIFS) |
|
Alarm Trigger: |
Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
|
Protocols: |
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
|
General Function: |
User Authentication, Watermark, IP address filtering, Anonymous access |
|
System Compatibility: |
ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
|
Wi-Fi Specification (-W) |
|
|
Wireless Standards: |
IEEE802.11b, 802.11g, 802.11n |
|
Frequency Range: |
2.4 GHz ~ 2.4835 GHz |
|
Channel Bandwidth: |
20/40MHz Support |
|
Modulation Mode: |
802.11b: CCK, QPSK, BPSK |
|
Security: |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
|
Transmit Power: |
11b: 17±1.5dBm @ 11Mbps |
|
Receive Sensitivity: |
11b: -90dBm @ 11Mbps (Typical) |
|
Transmission Rate: |
11b: 11Mbps |
|
Wireless Range: |
50m(depend on environment) |
|
General |
|
|
Operating Conditions: |
-10 °C ~ 40 °C (14 °F ~ 104 °F) |
|
Power Supply: |
12 VDC ± 10%, PoE (802.3af) |
|
Power Consumption: |
Max. 5.55 W |
|
IR Range: |
-I: 8m |
|
Dimensions: |
ø119.9 x 41.2(ø4.72” × 1.62”) |
|
Weight: |
600 g (1.32 lbs) |
|
NOTE：: |
"-W" series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support |
Warranty:
Limited Warranty for IP CCTV Security Video Surveillance Products from Germany Computer And Telecom Limited . Our After Sales Support policies provides you the minimum 1-year warranty on all products.
