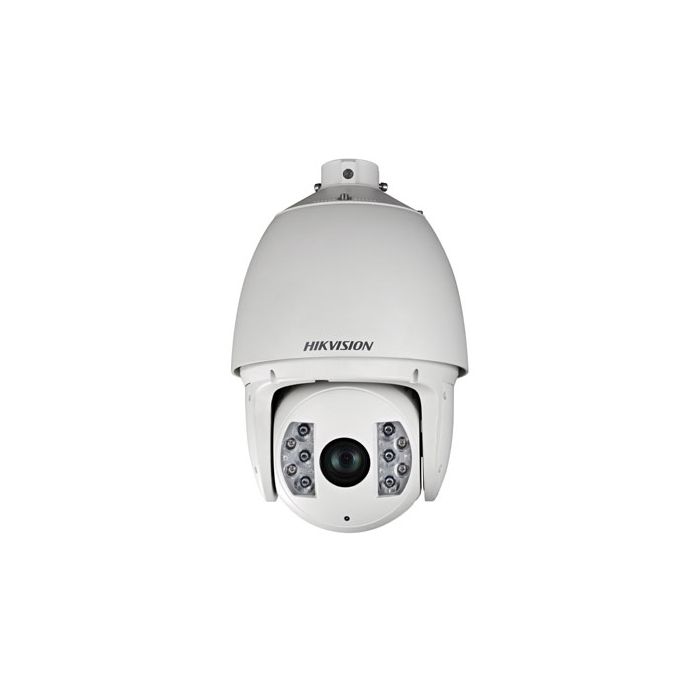

Hikvision DS-2DF7284-AEL Speed Dome CCTV Security Camera
Hikvision DS-2DF7284-AEL 2MP Ultra-low Temperature IR Network Speed Dome Camera Gives you HD quality video compression, remote internet viewing, motion detection,
night-vision also, it is smartphone compatible (IPhone, Android & Blackberry) as well as viewable over the internet network using IE browser (no app necessary). The camera functions well as part of a home or office security system with remote internet monitoring ability.
Hikvision DS-2DF7284-AEL 2MP Ultra-low Temperature IR Network Speed Dome Camera adopts a best HD video quality 2MP high-resolution real-time video as well as up to 1920x1080 high-speed video protocol processor. As a result, it is capable of H.264/MJPEG video compression allowing for extremely smooth video transmission with minimal bandwidth consumption. Also, due to the small file sizes produced by H.264/MJPEG video compression, it can save tremendous hard drive space when doing video recording.
Brand : HIKVISION
Model : DS-2DF7284-AEL
FEATURES:
1/2.8’’ Progressive Scan CMOS, up to 1920x1080
Ultra-low temperature with -40℃
Smart Tracking, Smart Defog
20X Optical Zoom
Smart IR, 150m IR distance
3D DNR, D WDR, HLC/BLC
IP66 rating
|
Camera |
|
|
Image Sensor: |
1/2.8" Progressive Scan CMOS |
|
Effective Pixels: |
1920(H)x1080(V) |
|
Signal System: |
PAL/NTSC |
|
Minimum Illumination: |
Color : 0.3 lux (F1.6,1/30 sec, 50 IRE, AGC On) |
|
White Balance: |
Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
|
AGC: |
Auto/Manual |
|
BLC: |
ON/OFF |
|
HLC: |
Support |
|
Smart defog: |
Support |
|
WDR: |
Support |
|
Shutter Time: |
50Hz: 1/1-1/30,000s |
|
Day& Night: |
ICR |
|
Digital Zoom: |
16X |
|
Privacy Masking: |
24 privacy masks programmable; optional multiple colors and mosaics |
|
Auto Focus: |
Auto / Semi-automatic / Manual |
|
Lens |
|
|
Focal Length: |
4.7-94mm, 20x |
|
Zoom Speed: |
Approx.2.7s(Optical Wide-Tele) |
|
Angle of View: |
58.3-3.2 degree (Wide-Tele) |
|
Minimum Working Distance: |
10-1500mm(Wide-Tele) |
|
Aperture Range: |
F1.6-F3.5 |
|
Pan & Tilt |
|
|
Pan Range: |
360°endless |
|
Pan Speed: |
Pan Manual Speed: 0.1° -160°/s, |
|
Tilt Range: |
-2°-90° (Auto Flip ) |
|
Tilt Speed: |
Tilt Manual Speed: 0.1°-120°/s, |
|
Proportional Zoom: |
Rotation speed can be adjusted automatically according to zoom multiples |
|
Number of Preset: |
300 |
|
Patrol: |
8 patrols, up to 32 presets per patrol |
|
Pattern: |
4 patterns, with the recording time not less than 10 minutes per pattern |
|
Power loss recovery: |
Support |
|
Park Action: |
Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
|
PTZ Position Display: |
ON/OFF |
|
Freeze Frame: |
Support |
|
Smart-tracking: |
Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger |
|
Infrared |
|
|
IR irradiation distance: |
150m |
|
IR irradiation angle: |
Adjustable by zoom |
|
Alarm |
|
|
Alarm Input: |
7 Inputs |
|
Alarm Output: |
2 |
|
Alarm Actions: |
Preset, patrol, pattern, SD/SDHC card recording, relay output, notifi cation on client |
|
Input & Output |
|
|
Monitor Output: |
1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC |
|
Audio Input: |
1 Mic in/Line in interface |
|
Audio Output: |
1 Audio output interface |
|
Network |
|
|
Ethernet: |
10Base -T, /100Base-TX, RJ45 Connector |
|
Max.Image Resolution: |
1920×1080 |
|
Main Stream: |
50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) |
|
Sub Stream: |
50Hz: 25fps(704×576), 25fps (352×288), 25fps (176×144) |
|
Third Stream: |
50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720), 25fps(704×576), 25fps (352×288), 25fps (176×144) |
|
Image Compression: |
H.264/MJPEG/MPEG4, H.264 encoding with Baseline/Main/High profile |
|
ROI encoding: |
Support 24 areas with adjustable levels |
|
Audio Compression: |
G.711ulaw/G.711alaw/G.726/MP2L2/G.722 |
|
Protocols: |
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
|
No. of Simultaneous Users: |
Up to 20 users |
|
Three-Stream: |
Support |
|
Mini SD Card: |
Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording |
|
User/Host Level: |
Up to 32 users,3 Levels: Administrator, Operator and User |
|
Security Measures: |
User authentication (ID and PW), |
|
Client GUI |
|
|
Camera Control: |
Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
|
Date & Time Display: |
Time: Week: Date, 6 formats on the Client |
|
Client: |
Support iVMS-4200 |
|
Web Browser: |
IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language |
|
General |
|
|
RS-485 Protocols: |
HIKVISION, Pelco-P, Pelco-D, self-adaptive |
|
Menu Language: |
English / Chinese |
|
Power Supply: |
24 VAC & Hi-PoE |
|
Power Consumption: |
24 VAC：Max. 60W |
|
Working Temperature/Humidity: |
24 VAC: -40 ℃-65℃(-40℉-149℉)(outdoor dome) |
|
Protection Level: |
IP66 standard (outdoor dome) |
|
Mounting: |
Various mounting modes optional |
|
Dimensions: |
Φ245×399mm (Φ9.65”×15.71”)(Outdoor) |
|
Weight (approx.): |
6Kg (13.22 Ibs) |
|
Mount Option: |
Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box |
Warranty:
Limited Warranty for IP CCTV Security Video Surveillance Products from Germany Computer And Telecom Limited . Our After Sales Support policies provides you the minimum 1-year warranty on all products.
