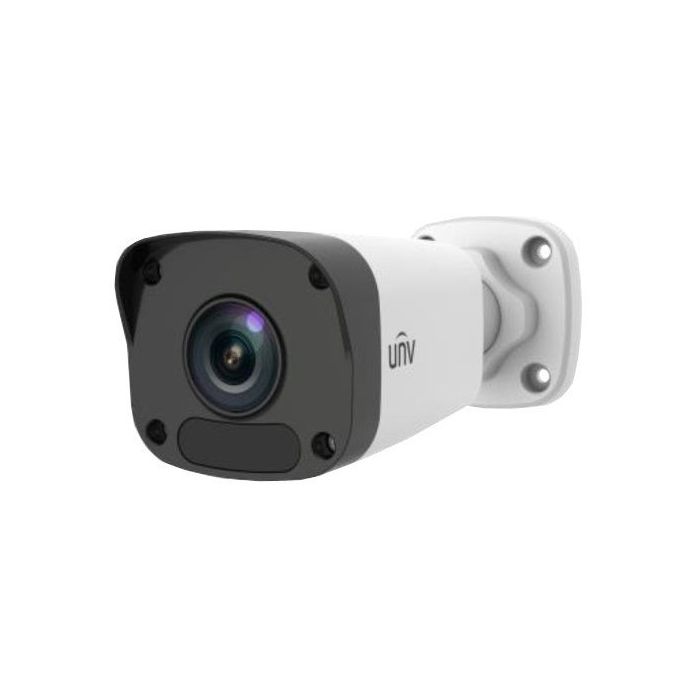

Uniview IPC2124LR3-PF40M-D 4MP Network IR Mini Bullet Camera
Uniview 4MP Mini Bullet Network Camera
Brand: Uniview
Model: IPC2124LR3-PF40M-D
4 Megapixel high-performance CMOS
IR distance 30m, IP66
H.265/H.264/MJPEG
4MM Fixed lens
Metal Housing
True Day/Night
Uniview IPC2124LR3-PF40M-D 4MP Mini Bullet Network Camera
The Uniview IPC2124LR3-PF40M-D is a high-performance 4 MP mini fixed-bullet network camera offering day/night functionality, Smart IR (up to 30 m), ultra-efficient encoding (Ultra 265 / H.265) and rugged IP67 outdoor rating, ideal for outdoor surveillance in Bangladesh whether for homes, shops or commercial sites.
Key Features
-
4 MP progressive-scan CMOS sensor (1/3″) delivering crisp 2592×1520 resolution.
-
Smart IR illumination up to 30 m, with optical-glass and IR anti-reflection window to boost performance in low-light.
-
Ultra 265 / H.265 / H.264 / MJPEG compression for efficient bandwidth and storage usage.
-
Rugged environment readiness: wide operating temperature range -30 °C to +60 °C, wide voltage tolerance ±25%, IP67 ingress protection.
-
Flexible mounting with 3-axis adjustment (pan/tilt/rotate) for accurate alignment in all installations.
-
ONVIF (Profile S/T) compatibility and 10/100 Mbps Ethernet interface for seamless integration into existing systems.
-
POE support (IEEE802.3af) or 12 V DC supply with very low power consumption (max 4–5 W).
Technical Specifications
|
Specification |
Detail |
|
Model |
IPC2124LR3-PF40M-D |
|
Image Sensor |
1/3″ CMOS, 4.0 megapixel, progressive-scan |
|
Lens |
4.0 mm @ F2.0 fixed lens |
|
Minimum Illumination |
Colour: 0.03 Lux (F2.0, AGC on), 0 Lux with IR on |
|
IR Range |
Up to 30 m / 98 ft |
|
Video Compression |
Ultra265, H.265, H.264, MJPEG |
|
Frame Rate / Resolution |
Main stream: 4 MP (2592×1520) up to 20 fps; Sub stream: 720p up to 20 fps |
|
Ingress Protection |
IP67 (outdoor installation ready) |
|
Power Supply |
DC 12 V ±25% or PoE (IEEE802.3af) |
|
Power Consumption |
Max approx. 4 W (some sources say max 5 W) |
|
Operating Temperature |
-30 °C ~ +60 °C (-22 °F ~ 140 °F) |
|
Dimensions (L × W × H) |
167.3 × 62.9 × 62.7 mm (≈ 6.6″ × 2.5″ × 2.5″) |
|
Weight |
Approx. 0.37 kg (0.81 lb) |
| Call for Price | No |
|---|---|
| Brand | UNIVIEW |
| case_type | Bullet |
| image_sensor | CMOS |
| ir_distance | 21-30 Meter |
| Lens Type | Fixed Lens |
| local_storage | N/A |
| power_supply | POE |
| resolution | 4 Mega Pixel |
| weather_protection | Both Indoor & Outdoor |
| wifi | Yes |
