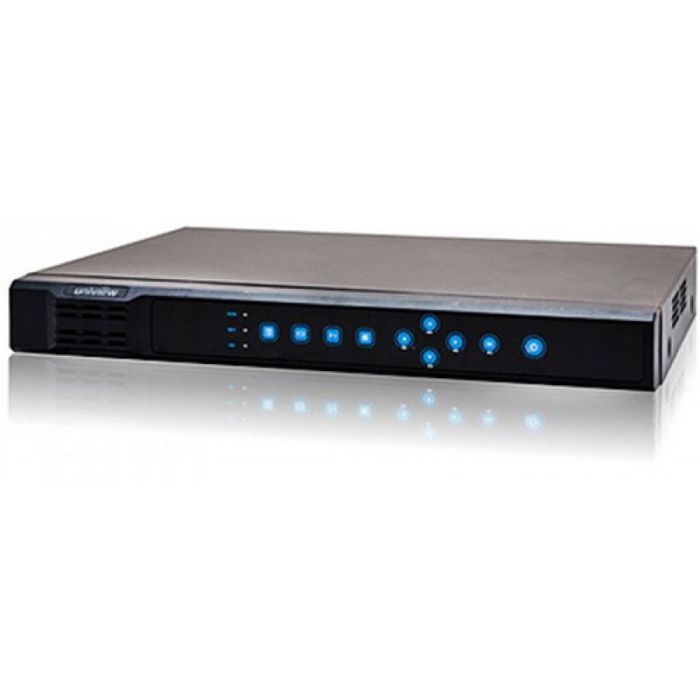

UNIVIEW NVR202-08E 8CH 1080p NVR

IP Video Input

8-ch

Two-way Audio Input

1-ch, RCA

Incoming Bandwidth

80Mbps

Outgoing Bandwidth

96Mbps

Remote Users

128

Protocols

P2P, UPnP, NTP, DHCP, PPPoE

HDMI/VGA Output

HDMI/VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz

Recording Resolution

4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Audio Output

1-ch, RCA

Synchronous Playback

8-ch

Corridor Mode Screen

3/4/5/7/9

Decoding format

H.264

Live view /Playback

4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

2 x 4MP@20, 4 x 1080p@30, 8 x 720p@25

SATA

2 SATA interfaces

Capacity

up to 6TB for each disk

Network Interface

1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface

USB Interface

Rear panel: 1 x USB2.0, 1 x USB3.0

Power Supply

12V DC Power Consumption: ≤ 8 W( without HDD )

Working Environment

-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)

Dimensions(W×D×H)

44 × 360 × 254mm ( 1.7” × 14.2” × 10.0” )

Weight

≤ 1.42 Kg ( 3.13 lb )

IP Video Input

8 CH
