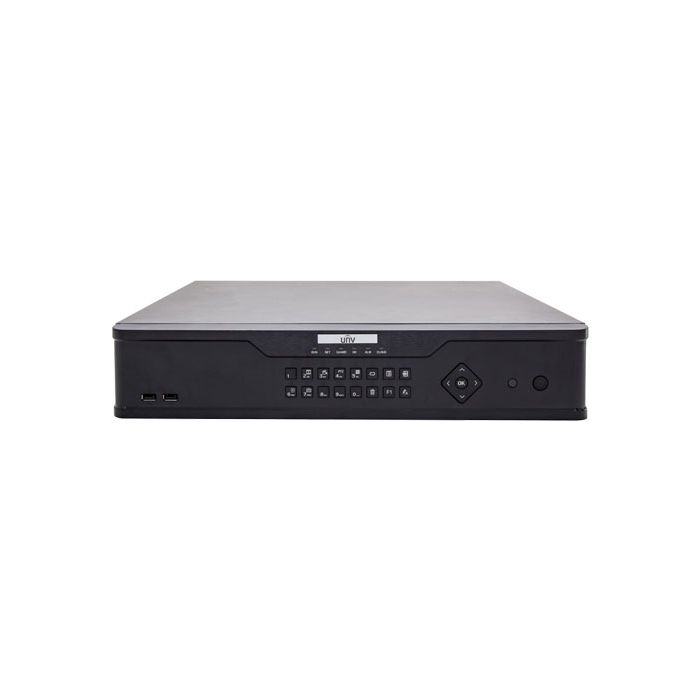

UNIVIEW NVR-308-32E-B 32CH 4K NVR
Features and Key points :
• Model: NVR301-08LB
• Ultra 265/H.265/H.264 video compression
• Support up to 4K Camera
• 16- Channel NVR Input
• All Channel @ 1080P Recording
• HDMI & VGA Out Put Up to 1080P
• Support 1 HDD (Up to 8 TB)
• Support Mobile Client Access
• Installation with expert Technician
• Best price in Bangladesh
• Call for Discount / Price Match policy
UNIVIEW NVR-308-32E-B 32CH 4K NVR
42,000.00
32-channel input. Support Ultra H.265/H.265/H.264 video formats.Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T. Support 2-ch HDMI, 1-ch VGA, 1-ch CVBS, HDMI2 at up to 4K(3840×2160) resolution. HDMI1/VGA and HDMI2 independent outputs provided. Up to 12 Megapixels resolution recording. Support RAID 0, 1, 5, 6, 10. 8 SATA HDDs, Up to 10TB for each HDD. Various fisheye dewarping modes for live view and playback for both web interface and GUI. Support N+1 Hot spare. Support for 12V Power output. ANR technology to enhance the storage reliability when the network is disconnected. Support cloud upgrade. Support OSD function. Support PTZ control function. Support export system log. Support different user authorized level. Can be installed in rack cabinet 19”.
■ 32-channel input
■ 320 Mbps
■ ONVIF conformance
■ 2-ch HDMI, HDMI2 at up to 4K(3840×2160) resolution
■ 8 SATA HDD up to 64 TB
■ Support various VCA detection alarm and VCA search
■ Support for P2P, UPnP, NTP, DHCP, PPPoE
■ Support for mobile client access
|
IP Video Input |
32-ch |
|
Two-way Audio Input |
1-ch, RCA |
|
Incoming Bandwidth |
320Mbps |
|
Outgoing Bandwidth |
320Mbps |
|
Remote Users |
128 |
|
Protocols |
IPV4, IPV6, SNMP,P2P, UPnP, NTP, DHCP, PPPoE, HTTP, SMTP, TCP/IP, RTSP |
|
HDMI/VGA Output |
HDMI1/VGA: |
|
CVBS Output |
1-ch, BNC |
|
Recording Resolution |
2MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Audio Output |
1-ch, RCA |
|
Synchronous Playback |
16-ch |
|
Corridor Mode Screen |
3/4/5/7/9/10/12/16/32 |
|
Decoding format |
Ultra 265, H.265, H.264 |
|
Live view/ Playback |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Capability |
3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1 |
|
SATA |
8 |
|
Capacity |
up to 10TB for each HDD |
|
eSATA |
1 eSATA interface |
|
Array Type |
RAID 0, 1, 5, 6, 10 |
|
Network Interface |
2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces |
|
Serial Interface |
1 x RS232, 1 x RS485 |
|
USB Interface |
Front panel: 2 x USB2.0,Rear panel: 1 x USB3.0 |
|
Alarm In |
16-ch |
|
Alarm Out |
4-ch |
|
Power Supply |
100 ~ 240 VAC |
|
Working Environment |
-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
|
Dimensions(W×D×H) |
442mm ×425mm× 86mm (17.4" × 16.7"× 3.4") |
|
Weight ( without HDD ) |
≤ 5.13 Kg (11.31 lb ) |
NVR Connection Diagram
A network video recorder (NVR) is a specialized computer system that includes a software program that records video in a digital format to a disk drive, USB flash drive, SD memory card or other mass storage device. ... An NVR is typically deployed in an IP video surveillance system.
What is our after-sale service System?
We offer 100% guarantee on our product after sales service. We provide one year service warranty free and we provide life time service just for service fee.
What is the price of UNIVIEW NVR301-04LB-P4 in Bangladesh?
The latest price of UNIVIEW NVR301-04LB-P4 in Bangladesh is 6,500৳. You can buy the UNIVIEW NVR301-04LB-P4 at best price from our website or visit any of our showrooms.
We Provide Solution of Surveillance System in BD. |
|
|
|
We successfully installed Survillance System to Many Banks and corporate in Bangladesh, some of the projects are: |
||
Banks |
Corporates |
|
…Other many more Projects |
…Other many more Projects |
|
| Call for Price | No |
|---|---|
| Brand | UNIVIEW |
| esata | N/A |
| HDD | 8 SATA |
| Support_resolution | 5 Mega Pixel |
| power_supply_nvr | DC12V/5A |
| raid | N/A |
| video_chanel | 32 Port |
