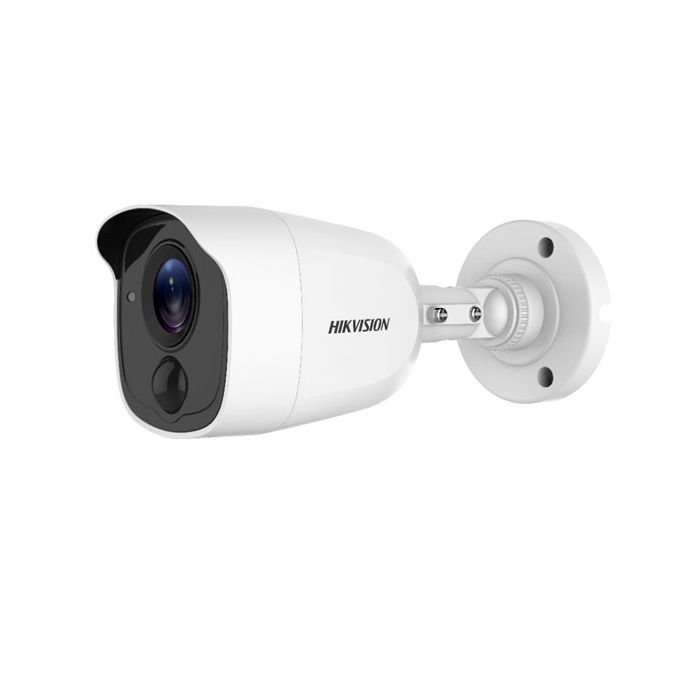

HikVision DS-2CE11D0T-PIRL 2MP PIR Detection TurboHD Bullet Camera
Features and Key points :
• Brand : Hikvision
• Model : DS-2CE11D0T-PIRL
• 2MP PIR Detection TurboHD
• 3.6mm lens, 20m EXIR, PIR Alarm, smart IR
• Day/Night, White Light, DWDR
• Support H.265+/H.265 video compression
• Best CCTV Camera price in Bangladesh
• Call for Discount / Price Match policy
Buy Hikvision DS-2CE11D0T-PIRL 3.6MM 2MP PIR HD Bullet Camera with best Price in Bangladesh
A PIR sensor security camera is a camera packed with a PIR sensor, and based on it for motion detection Hikvision’s DS-2CE11D0T-PIRL Turbo HD Passive Infrared (PIR) Camera uses advanced video surveillance technologies to improve alarm accuracy and prevent intrusions. The camera has a built-in PIR detector that captures infrared light given off by human bodies and distinguishes it from other visual “noise.” As a result, perimeter protection jumps to a whole new level for residential areas, around factories, warehouses, schools and other settings.
Key Features of 2MP Hikvision PIR DS-2CE11D0T-PIRL Bullet Camera
• 2 MP High Performance CMOS
• Up to 1920 x 1080 Resolution
• 2.8 mm and 3.6 mm Fixed Lens Options
• EXIR 2.0 up to 65 ft (20 m) IR Range
• PIR Detection and Visual Alarm
• White Light Emitter
• Up-the-Coax (HIKVISION-C)
• IP67 Protection
Hikvision PIR Detection DS-2CE11D0T-PIRL Specification
| Image Sensor | 2.0 megapixel progressive scan CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s, NTSC: 1/30 s to 1/50, 000 s |
| Lens | 2.8 mm, 3.6 mm fixed focal lens |
| Lens Mount | M12 |
| Angle Adjustment | Pan: 0°to 360°, Tilt: 0°to 180°, Rotate: 0°to 360° |
| Day& Night | IR cut filter |
| Horizontal Resolution | 1920 (H) × 1080 (V) |
| Video Frame Rate | PAL: 1080p@25fps, NTSC: 1080p@30fps |
| Synchronization | Internal Synchronization |
| Horizontal Field of View | 103.5°(2.8 mm), 80.3°(3.6 mm) |
| White Light | Alarm/Off |
| D/N Mode | Auto/Color/BW (Black and White) |
| White Balance | ATW/MANUAL |
| AGC | Yes, 110°, Range:11 m |
| Language | English/Chinese |
| Function | Brightness, Contrast, Sharpness, Saturation, DNR, Mirror |
| Video Out | 1 HD analog output |
| IR Range | Up to 20 m |
| PIR Range | Angle: 110°, Range:11 m |
| Material | Metal |
| Ingress Protection | IP67 |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F), Humidity 90% or less (non-condensing) |
| Power Supply | 12 VDC±25% |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Dimension | 68 mm × 70 mm × 179.8 mm ( 2.68" × 2.76" × 7.08" ) |
| Weight | Approx. 345 g (0.76 lb.) |

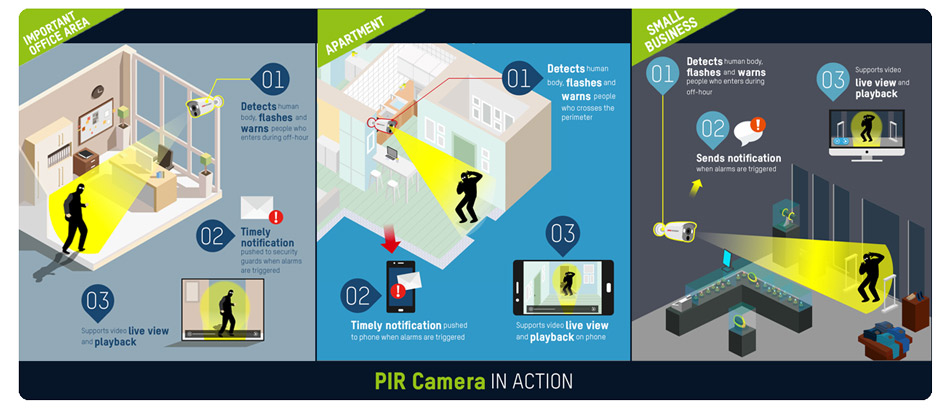

PIR Detection camera in different premises
PIR Detection camera fits in different premises like, Office area, Apartment, Small Business, Factory, Warehouse etc. Instant alert and notification system make it more effective to secure your premises.
What is the Price Range of Hikvision DS-2CE11D0T-PIRL 2MP PIR TurboHD IR Bullet Camera in Bangladesh?
The Hikvision DS-2CE11D0T-PIRL 2MP PIR Detection TurboHD IR BulletCamera price range in Bangladesh is from BDT 1,800.00 to BDT 2,250.00. All Kind of Hikvision PIR Cameras are available on Germany Computer and Telecom Ltd.
Brands of CCTV Surveillance Camera that's we Provide:
Our diverse Team of IT professionals will Allow You to extend your Service and Installation services for all the Significant vendors and manufacturers of CCTV Surveillance Camera So in the Event That You have assigned the task to Set up the Intruder Alarm System, Then you'll be no compromising on the kind of hardware you want but Will Soon be free to choose. Some of the vendors that we have the proficiency in installing gear from include.
| • Hikvision | • AVtech | • Varito | • Dahua |
| • Mepesen | • Axis | • Bosch | • Jovision |

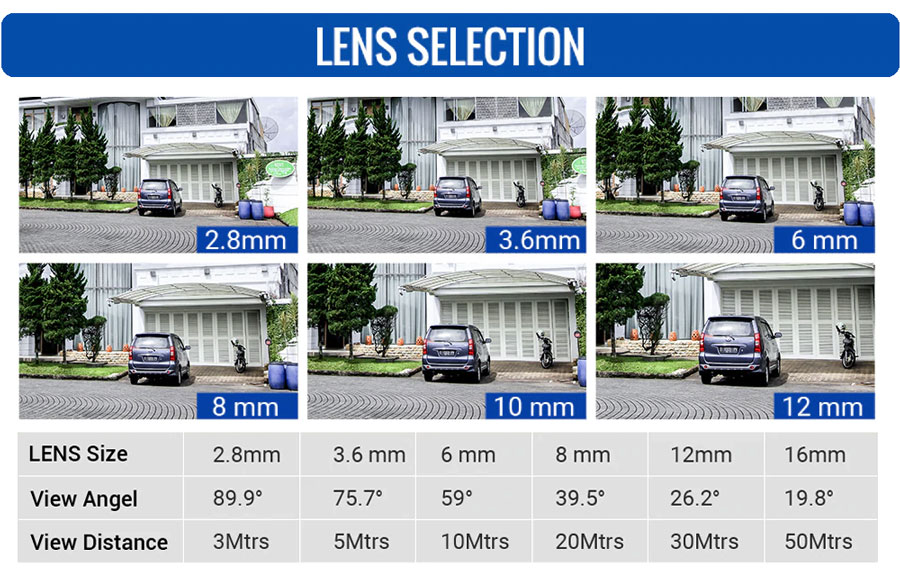

Choosing the right CCTV Lens

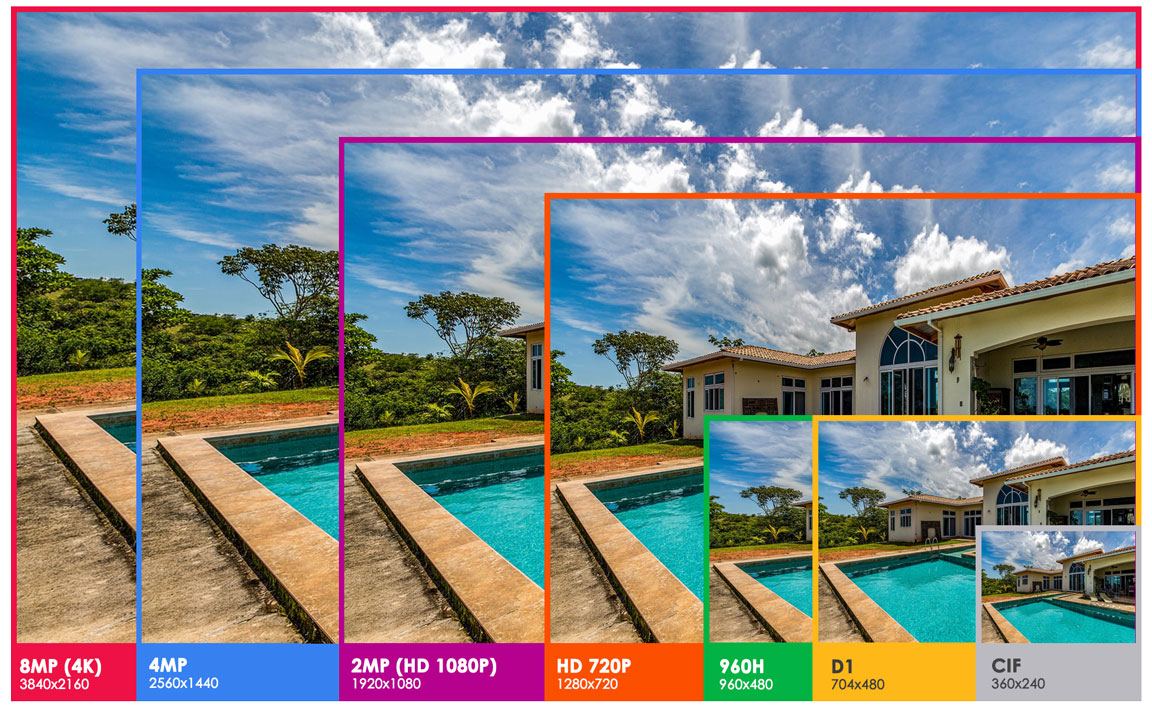

Comparison of CCTV Camera Resolution
Security camera resolution is the total number of pixels that make up an image, which is measured by the image width and height. For example, the width and height of a 2MP image are 1920 and 1080 respectively. By multiplying these two figures together, you will get 2,073,600, which is the total number of pixels contained in the image. Also, the height of an image is used to symbolize the resolution and thus, you can say 1080p resolution when talking about an image with 2 million pixels.
The most common resolution for home security camera in the market includes 2MP (1080p), 4MP (1440p), 5MP (1920p) and 8MP (4K/2160p).
Take the following security camera resolution comparison chart into account:
4 Signals over 1 Coaxial CableHDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility.* Audio input is available for some models of HDCVI cameras. SimplicityHDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional ana-log system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network. Multi-formatsThe camera supports multiple video formats including HDCVI, CVBS and other two common HD analog formats in the market. The four formats can be switched over through OSD menu or by PFM820 (UTC controller). This feature makes the camera to be compatible with not only HCVRs but also most end users’ existing HD/SD DVRs. |
Long Distance TransmissionHDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 800m(1080P)/1200m(720P) trans-mission via coaxial cable, and up to 300m(1080P)/450m(720P) via UTP cable.**Actual results verified by real-scene testing in Dahua's test laboratory. Smart IRThe camera is designed with microcrystalline LED IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua’s unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera. Multi-language OSDOSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes. The OSD menu includes configurations such as backlight mode, day/night, white balance, privacy mask and motion detect. The camera supports 11 languages for OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polis |
HD Cameras Connection Diagram
HD video signals transfer over coax cables to the DVR (Digital Video Recorder). HD Camera are powered by plugging in the power supply. The DVR then converts the analog signal to digital, compresses it then stores it on a Hard Disk. The information is built into the DVR to handle scheduling, motion detection and digital zooming. To view the footage, monitors are connected to the DVR or you could use an internal network for viewing on PCs. DVR's can also be set up to broadcast over the internet and set up to be password protected. The video for all of the cameras are transmitted as one stream, one IP address.
What is our after-sale service System?
We offer 100% guarantee on our product after sales service. We provide one year service warranty free and we provide life time service just for service fee.
We Provide Solution of Surveillance System in BD. |
|
|
|
We successfully installed Survillance System to Many Banks and corporate in Bangladesh, some of the projects are: |
||
Banks |
Corporates |
|
…Other many more Projects |
…Other many more Projects |
|
| Call for Price | No |
|---|---|
| Brand | Hikvision |
| case_type | Bullet |
| ir_distance | <20 Meter |
| ir_led | 2 IR LED |
| Lens Type | Fixed Lens |
| power_supply | DC12V |
| resolution | 2 Mega Pixel |
| technology | Hybrid |
| weather_protection | Both Indoor & Outdoor |
