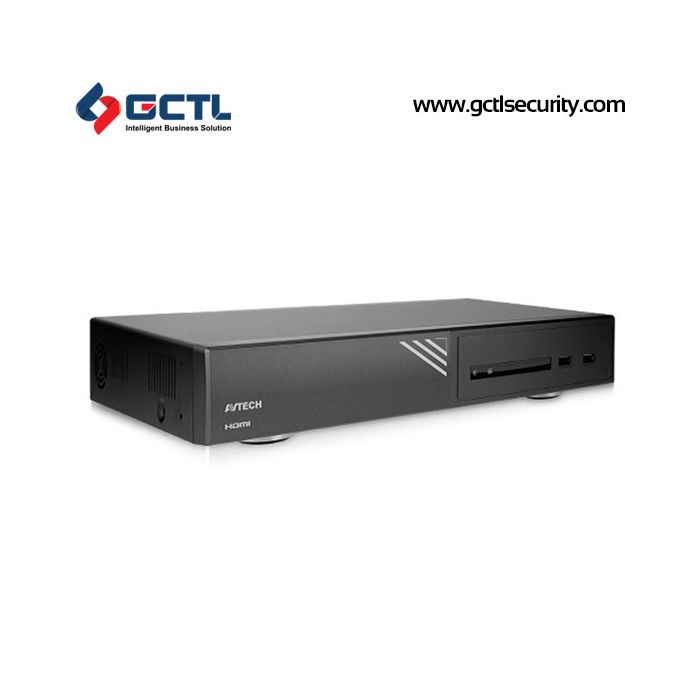

AVTECH AVZ3017 PENTABRID 16CH XVR
• AVTECH AVZ3017 PENTABRID 16CH XVR
• Brand: AVTECH
• Model: AVZ3017
• Type: 16 Channel XVR
• Compression: H.265
• HDD: 14TB SATA HDD X 3
• Online: Eagle eye / CMS
• Video Signal: IP / TVI / CVI / Analog HD
• Best XVR Price in Bangladesh
• Call for Discount / Price Match policy
AVTECH AVZ3017 PENTABRID 16CH XVR
H.265 Compression Technology. The recording capability is significantly enhanced in addition to bandwidth for performance and efficiency compared to systems employing compression formats, saving . It allows you to personalize a collection of activities that will be run automatically after the specified event occurs. There are. Free P2P Cloud EaZy Networking. Cloud EaZy Networking accessible to connect this device to the web in 3 steps with our mobile app that is free, EagleEyes. The"Buddy" feature to share the device access permission to other men and women. Device login / out notifications reported. Push Video & Push Status - Active Event Notification using EagleEyes App. When an alarm apparatus is linked to the camera, which supports an external alarm device 27, push Video to send instant notifications to get an alert event. Push Status to send instant notifications such as HDD data elimination or loss.
FEATURES:
- H.265 Compression Technology
- Scenario Customization
- Pentabrid Video Input
- Event Pop-up / Preview
- Free P2P Cloud EaZy Networking
- Spot Monitor
- Push Video & Push Status
- Active Event Notification with Eagle Eyes App
SPECIFICATIONS:
|
Video |
||
|
Video System |
NTSC / PAL (auto detection) |
|
|
Video Compression Format |
H.265 |
|
|
Video Signal |
IP / TVI / CVI / Analog HD / 960H |
|
|
Video Input |
16 pentabrid channels (IP / TVI / CVI / Analog HD / 960H), within which IP channels are up to 12 channels |
|
|
Video Input Interface |
Analog Mode |
Composite video signal 1 Vp-p 75Ω BNC |
|
IP Mode |
Ethernet, 10/100 Base-T |
|
|
Video Output |
BNC |
YES (Spot Monitor supported) |
|
VGA YES |
YES (Spot Monitor supported) |
|
|
HDMI |
YES (4K2K display) |
|
|
Video Resolution |
Analog Mode |
Analog Mode 5MP / 5MLITE / 4MP / 4MLITE / FHD |
|
IP Mode |
(1080P) / HD / 960H / Frame / CIF IP Mode 2592 x 1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240 |
|
|
Record & Backup |
||
|
Max. Recording Rate |
Analog Mode IP Mode (2channels)
|
Up to 96 IPS @ 5MP Up to 128 IPS @ 4MP Up to 240 IPS @ FHD (1080P) UP to 180 IPS @ 2592 x 1944 (5MP) UP to 288 IPS @ 2048 x 1536 (3MP) UP to 360 IPS @ 1920 x 1080 |
|
Recording Mode |
|
Manual / Timer / Motion / Alarm / Remote |
|
Playback Channel |
|
16CH |
|
Quick Search |
|
Time / Motion / Alarm search mode |
|
Backup Device |
|
USB 2.0 drive / Network |
|
Regular Backup |
|
YES |
|
Audio |
||
|
Audio Input |
4 |
|
|
Audio Output |
1 (Mono) |
|
|
External I/O |
||
|
RS485 |
YES |
|
|
Alarm Input |
8 |
|
|
Alarm Output |
1 |
|
|
General |
||
|
Hard Disk Storage |
14TB SATA HDD x 3 |
|
|
SATA Interface |
YES |
|
|
eSATA Interface |
YES |
|
|
Image Quality Setting |
SUPER BEST / BEST / HIGH / NORMAL |
|
|
USB Mouse Control |
YES |
|
|
Motion Detection Area |
16 × 12 grids per channel |
|
|
Motion Detection Sensitivity |
3 adjustable parameters for accurate detection |
|
|
Event Notification |
Push Video / Push Status / FTP / E-Mail |
|
|
Event Pop-up & Preview |
YES |
|
|
Scenario Setup |
YES |
|
|
Picture Zoom |
2X digital zoom |
|
|
PTZ Control |
YES |
|
|
Key Lock (Password Protection) |
YES |
|
|
User Level |
4 user levels for different access privilege |
|
|
Video Loss Detection |
YES |
|
|
Camera Title |
Supports up to 25 letters |
|
|
Video Adjustable |
Hue / Saturation / Contrast / Brightness |
|
|
Date Display Format |
YY/MM/DD, DD/MM/YY & MM/DD/YY |
|
|
Daylight Saving |
YES |
|
|
Power Source |
(±10%) 12V / 4A |
|
|
Operating Temperature |
10ºC ~ 40ºC (50ºF ~104ºF) |
|
|
Operating Humidity |
10% ~ 85% |
|
|
Dimensions(mm)** |
375 x 273.8 x 77 |
|
|
Net Weight (kg) |
2.6 |
|
|
Network |
||
|
Ethernet |
10/100 Base-T. Supports remote control and live view via Ethernet |
|
|
Network |
Protocol TCP/IP, PPPOE, DHCP and DDNS |
|
|
Remote Surveillance from PC |
||
|
Compatible Operating System |
Windows & MAC |
|
|
Compatible Program |
Windows Edge, Microsoft Internet Explorer, Google Chrome, Mozilla Firefox & Safari |
|
|
|
CMS Lite: 32CH central management software for Windows OS |
|
|
Max. online users |
20 |
|
|
Web Transmitting Compression Format |
H.265 |
|
|
Network Live Audio |
YES |
|
|
Remote Event Download & Playback |
YES |
|
|
Mobile Surveillance |
||
|
App |
EagleEyes |
|
|
Compatible Devices |
iOS & Android devices |
|
|
Push Video |
YES (16 channel) |
|
|
Push Status |
YES |
|
|
Others |
||
|
EaZy Networking |
YES |
|
|
IVA Support |
YES (4 channels in analog mode) |
|
|
Spot Monitor Support |
YES (VGA & Composite) |
|
|
DCCS Support |
YES |
|
|
AVTECH Free DDNS service |
YES |
|
|
Privacy Mask |
YES |
|
|
Multiplex Operation |
Live display / record / playback / backup / network operations |
|
|
System Recovery System |
auto recovery after power failure |
|
|
Optional Peripherals |
HDMI Matrix (HDM02) / USB Joystick (AVX102) |
|
|
Certification |
CE |
|
