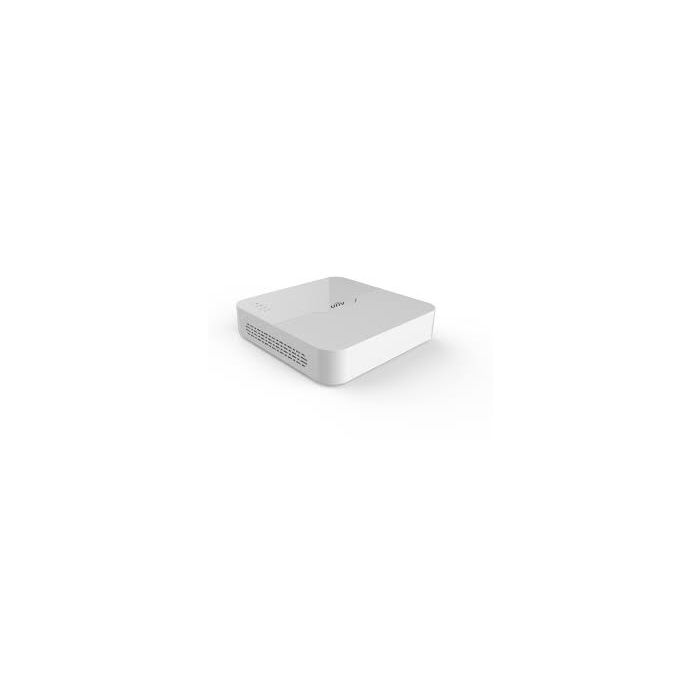

UNIVIEW NVR301-08LB 8CH 4K NVR

IP Video Input

8-ch

Incoming Bandwidth

40Mbps

Outgoing Bandwidth

40Mbps

Remote Users

128

Protocols

P2P, UPnP, NTP, DHCP, PPPoE

HDMI/VGA Output

HDMI:
1920x1080p/60Hz,1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz

Recording Resolution

1080p/960p/720p/D1/2CIF/CIF

Synchronous Playback

8-ch

Corridor Mode Screen

3/4/5/7/9

Decoding format

Ultra 265/H.265/H.264

Liveview/Playback

1080p/960p/720p/D1/2CIF/CIF

Capability

4 x 1080p@20, 4 x 720p@30

SATA

1 SATA interface

Capacity

up to 10TB for each disk

Network Interface

1 RJ45 10M/100M self-adaptive Ethernet Interface

USB Interface

Rear panel: 2 x USB2.0

Power Supply

12V DC
Power Consumption: ≤3.2 W (without HDD)

Working Environment

-10°C~+55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)

Dimensions (W×D×H)

205mm × 205mm × 42mm (8.1" × 8.1" × 1.7")

Weight (without HDD)

0.51kg (1.12lb)

IP Video Input

8 CH

We Provide Solution of Surveillance System in BD.

We successfully installed Survillance System to Many Banks and corporate in Bangladesh, some of the projects are:

Banks

Corporates

• Bank Asia Ltd. :  CCTV camera System more than   100 Branches
• BRAC Bank Ltd. :  CCTV camera System : more than   40 Branches
• NCC Bank Ltd. :   CCTV & IP camera System For 35 ATM booths,  CCTV camera System : more than   30 Branches
• NRB Bank Ltd. :   CCTV System Setup to NRB Bank Head Office and more than 23  Branches
• Mutual Trust Bank Ltd.  :   CCTV System Setup more than  32  Branches
• Woori Bank Bangladesh Ltd.
• One Bank Ltd.
• Shahjalal Islami Bank Ltd.
• Meghna Bank Ltd.    Etc
• Modhumoti Bank Ltd.

  …Other many more Projects

• bKash Ltd. :   CCTV & IP camera System For bKash Head office,  CCTV For bKash 16 Branches
• Sanofi Bangladesh ltd.  :   IP Camera System, Setup to Tongi Factory
• Seamark Ltd. :    CCTVSystem to Chittagong Factoy
• Dhaka Chamber of Commerce
• Bangladesh jute Research Institued
• Department of Social Services
• Grameen Shamogree
• Shabuddin Medical College & Hospital
• ACI ltd.
• Keya Group
• Mirpur Cantonment Public School & College
• Parkscene Bangladesh Limited
• Fariha Knit Tex Ltd.  etc.

  …Other many more Projects
