Bosch FMC-300RW Single Action Manual Call Point

The Bosch FMC-300RW is a high-quality manual fire-alarm call point designed for conventional fire-alarm systems. It supports alarm activation by either pressing the prominent black marking or breaking the glass pane. The unit includes an LED display to indicate triggered status or inspection mode, and is EN 54-11 certified for reliable performance. Ideal for commercial buildings, educational institutions, hospitals or any facility in Bangladesh requiring fire safety compliance and manual emergency-triggering capability.

Key Features

Alarm triggering either by pressing the black marker or by breaking the glass pane.
Foil-labeled glass pane ensures protection against glass-injury.
LED status display for alarm or inspection evaluation.
Conventional technology (non-addressable) compatible with many fire-panel systems.
Surface-mounted housing (indoor use) with a mounting height recommendation of approx. 1400 mm ±200mm from floor centre-line.
Robust environmental tolerance: Protection category IP 54; operating temperature −25 °C to +70 °C.

Technical Specification

Specification	Detail
Operating voltage	20 V DC nominal (range 8.5 V to 30 V)
Alarm resistor	820 Ω ±10% (when 8.5 VDC to 30 VDC)
Current consumption	Specified by the host security system
Dimensions (H × W × D)	87 mm × 87 mm × 56 mm (3.4″ × 3.4″ × 2.2″)
Housing material	Plastic (ASA)

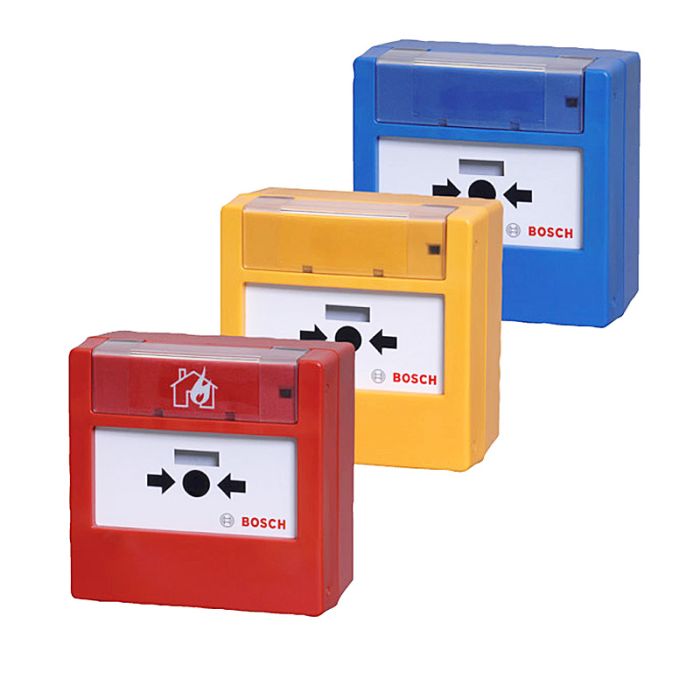

Colour options	Red (RAL 3001), Blue (RAL 5005), Yellow (RAL 1003)
Protection rating	IP 54 (according to EN 60529)
Permissible operating temperature	−25 °C to +70 °C
Certification/Approval	EN 54-11:2001/A1:2005; VdS G 207086 (for Germany)
