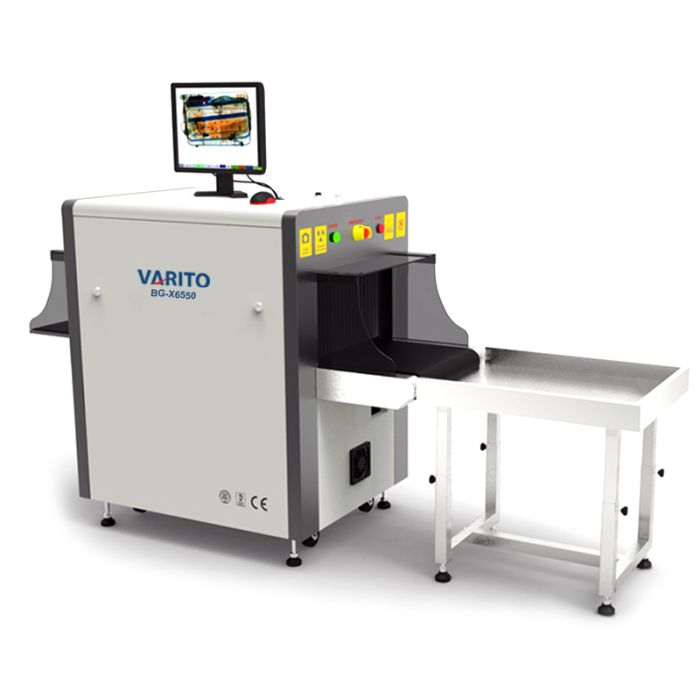

VARITO BG-X6550 X-Ray Baggage Scanner
Brand : VARITO
Model : BG-X6550
Brand Origin: Germany
Manufacture from: China
Feature Highlights:
Display: High Resolution Color Display
Conveyor belt rated load: 120kg
Pass rate test: ＞700/h
Image gray level: ≥4096
Service Warranty: 1 Year Standard
VARITO BG-X6550 X-Ray Baggage and Luggage Scanner
Buy reasonable price of VARITO BG-X6550 Baggage Scanner in Bangladesh Tk 18,50,000 only. Buy VARITO BG-X6550 from Dhaka at reasonable price in GCTL.
VARITO BG-X6550 X-ray baggage scanner series features a unique design and delivers exceptional image clarity, making it a top choice for security inspections. Available in classic tunnel sizes of 5030 and 6550, these machines can be equipped with powerful X-ray sources of 80kV and 140kV to meet varying security needs. Customization options ensure that each unit can be tailored to specific applications, enhancing its effectiveness in detecting threats in baggage and cargo. Ideal for airports, border controls, and high-security areas, our X-ray machines are pivotal in ensuring safety and compliance.
Technical Specifications:
|
Features |
|
|
Dual Energy, L-shaped array detector |
|
|
Japan HAMMATSU detector crystal , Detecting board from Deetee Finland. |
|
|
IPC from Taiwan , Interroll Roller from German |
|
|
High-resolution PHILIP 19 inch color LCD display |
|
|
Four colors to distinguish organic , inorganic and dangerous material |
|
|
Multiple functions: High/Low penetration display, Magnifier, Brightening/dimming, |
|
|
Image enlarge, recurrence, restoration, storage, network |
|
|
Parameter |
|
|
General specification |
X-ray Generator |
|
Tunnel Size : 650（W × 500（H）mm |
Orientation: Upward |
|
Conveyor Speed: 0.22m/s |
Tube Current: 0.4~1.2MA（adjustable） |
|
Conveyor Max Load: 170 kg |
Anode voltage: 100~160KV（adjustable） |
|
Single inspection dosage: < 1.2μGy |
X-ray divergence angle: 80 ° |
|
Leakage radiation dosage: ≤ 0.1µGy/h |
Generator cooling/working periods: |
|
Wire resolution: 40AWG |
sealed oil bath with forced air/100% |
|
Spatial Resolution : 1.0 mm Horizontal, 1.0mm Vertical |
X-RAY Sensor: |
|
Steel Penetration: 38mm steel plate |
L-shaped array detector, |
|
Film safety: For ISO 1600 |
|
|
Image Performance System |
|
|
X-ray sensor: L type photodiode array detector (energy), 24 bi depth |
|
|
Display: High-resolution liquid crystal display, 24-bit color |
|
|
Color management architectures: Different color, different matter |
|
|
Inverse white/black/colorized: For compare these images to find the suspected dangerous goods |
|
|
To eliminate organic Inorganic out: In view of the most important image |
|
|
Edge enhancement: The edge of image is more clear |
|
|
High penetration: Make the image more through, for look every goods in one image |
|
|
Zoom in/zoom out: Make the image bigger ,make the image smaller |
|
|
1 times size of image: Make image back to 1 times size of image |
|
|
Brighter/darker: Make image more bright /make image darker |
|
|
Replay: Playback all images on the screen at current，be able to do the next steps |
|
|
Application and Certifications |
|
|
Ssed for scenic spots, gymnasium, expo centre, left- baggage counter, supermarket, hotel, court, prison etc. |
|
|
Machine parts safeguard measures |
|
|
High performance network function |
|
|
Chinese ministry of public security testing |
|
|
EU CE Certification |
|
|
ISO9001 Certification |
|
|
ISO14001 Environmental Management |
|
|
Radiation safety certification from China Government |
|
VARITO BG-X6550 X Ray Baggage Scanner Price in Bangladesh
Germany Computer & Telecom Ltd. (GCTL) is a leading supplier of advanced security solutions in Bangladesh, offering a range of X-ray baggage scanner from top brands like VARITO Baggage Scanner. The VARITO BG-X6550 is a high-performance Dual-Energy X-ray baggage scanner designed for medium-sized baggage inspection in high-security environments such as Airports, Embassies and Government facilities. For the latest pricing and more information, Please contact with us.
