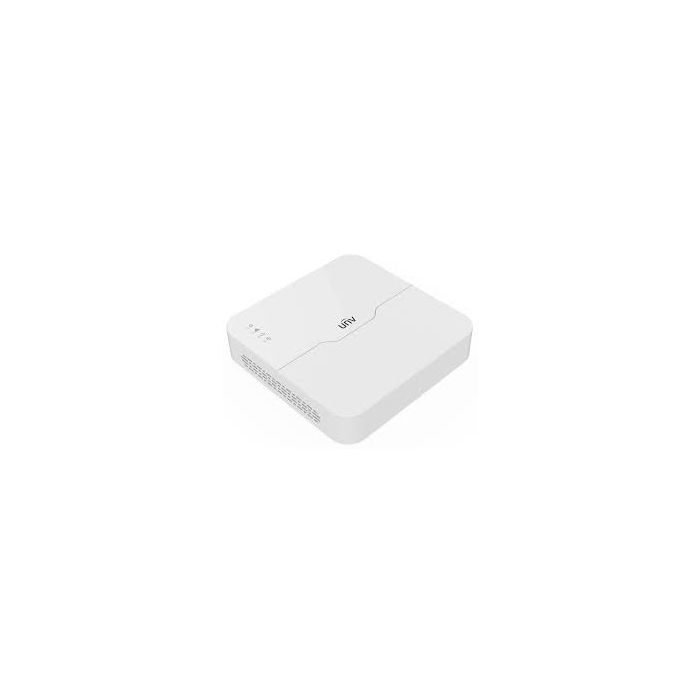

UNIVIEW NVR301-04LB-P4 4CH PoE 4K NVR
Features and Key points :
• Model: NVR301-04LB-P4
• H.264/H.265 dual-stream video compression
• Plug & Play with 4 independent PoE network interfaces
• Internal 1 HDD SATA: Up to 6TB
• 4-channel input
• Installation with expert Technician
• Best price in Bangladesh
• Call for Discount / Price Match policy
Buy UNIVIEW NVR301-04LB-P4 4CH PoE 4K NVR with best Price in Bangladesh
Introducing The New 4-CH PoE NVR Which has Ultra 265/H.265/H.264 video formats, 4-channel input. The device is Plug & Play with 4 independent PoE network interfaces. It supports Third-party IP cameras with ONVIF conformance: Profile S, Profile G, Profile T. Support 1-ch HDMI, 1-ch VGA with HDMI and VGA simultaneous output. Device supports up to 2MP resolution of recording. Up to 10 TB capacity in a single SATA HDD Slot. The device Firmware can be upgraded by cloud.
Key Features of UNIVIEW NVR301-04LB-P4
■ 4-channel input
■ Plug & Play with 4 independent PoE network interfaces
■ ONVIF conformance
■ Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution
■ 1 SATA HDD up to 6 TB
■ Support for P2P, UPnP, NTP, DHCP, PPPoE
■ Support for mobile client access
UNIVIEW NVR301-04LB-P4 Specification
|
IP Video Input |
4-ch |
|
Incoming Bandwidth |
40Mbps |
|
Outgoing Bandwidth |
40Mbps |
|
Remote Users |
128 |
|
Protocols |
P2P, UPnP, NTP, DHCP, PPPoE |
|
HDMI/VGA Output |
HDMI: |
|
Recording Resolution |
1080p/960p/720p/D1/2CIF/CIF |
|
Synchronous Playback |
4-ch |
|
Decoding format |
Ultra 265/H.265/H.264 |
|
Liveview/ Playback |
1080p/960p/720p/D1/2CIF/CIF |
|
Capability |
4 x 1080p@20, 4 x 720p@30 |
|
SATA |
1 SATA interface |
|
Capacity |
up to 10TB for each disk |
|
Interface |
4 independent 100 Mbps PoE network interfaces |
|
Max Power |
Max 30W for single port |
|
Supported Standard |
IEEE 802.3at, IEEE 802.3af |
|
Power Supply |
48V DC |
|
Working Environment |
-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
|
Dimensions(W×D×H) |
205mm × 205mm × 42mm(8.1" × 8.1" × 1.7") |

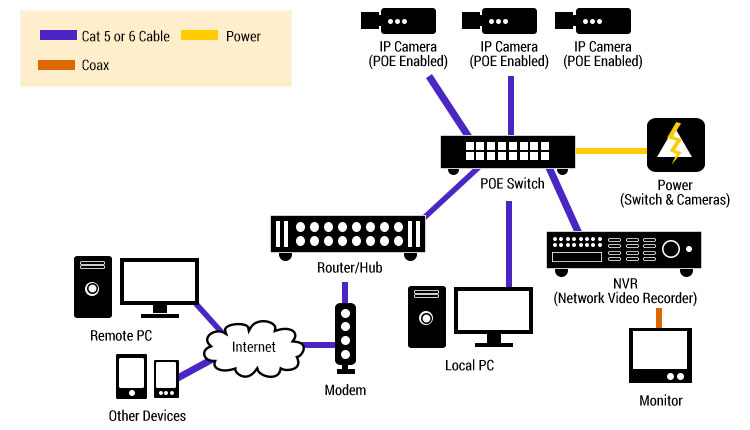

NVR Connection Diagram
A network video recorder (NVR) is a specialized computer system that includes a software program that records video in a digital format to a disk drive, USB flash drive, SD memory card or other mass storage device. ... An NVR is typically deployed in an IP video surveillance system.
What is our after-sale service System?
We offer 100% guarantee on our product after sales service. We provide one year service warranty free and we provide life time service just for service fee.
What is the price of UNIVIEW NVR301-04LB-P4 in Bangladesh?
The latest price of UNIVIEW NVR301-04LB-P4 in Bangladesh is 6,500৳. You can buy the UNIVIEW NVR301-04LB-P4 at best price from our website or visit any of our showrooms.
We Provide Solution of Surveillance System in BD. |
|
|
|
We successfully installed Survillance System to Many Banks and corporate in Bangladesh, some of the projects are: |
||
Banks |
Corporates |
|
…Other many more Projects |
…Other many more Projects |
|
| Call for Price | No |
|---|---|
| Alarm in/out | Yes |
| Brand | UNIVIEW |
| esata | N/A |
| HDD | 1 SATA |
| Support_resolution | 4k |
| poe_ports | N/A |
| power_supply_nvr | DC12V/5A |
| raid | N/A |
| video_chanel | 4 Port |
