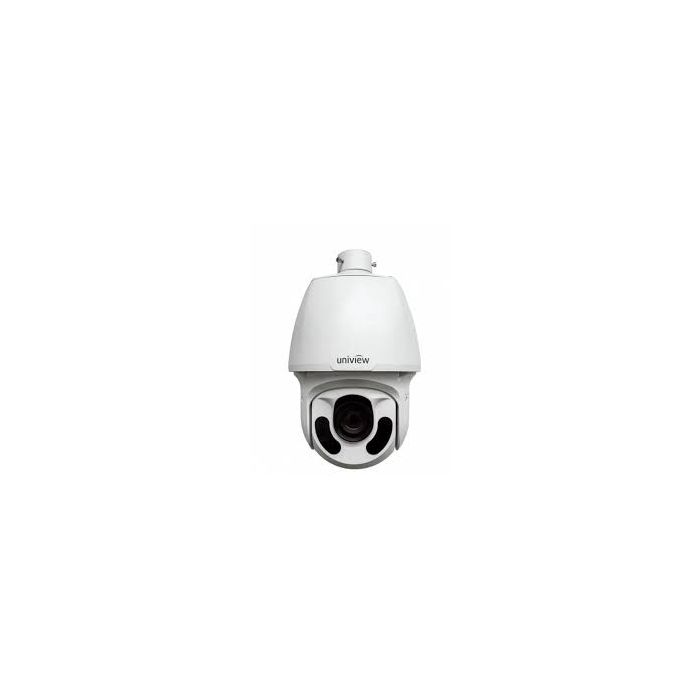

Uniview IPC6222ER-X30-B 2MP 30x IR Network PTZ Dome Camera
Features and Key points :
• Model: Uniview IPC6222ER-X30-B
• 2 Megapixel 1/2.8? Progressive scan CMOS
• IR distance 200m, IP67
• H.264/MJPEG
• motorizedl Lens : 4.5 mm
• Metal Housing
• Micro SD, up to 64 GB
• Installation with expert Technician
• Best price in Bangladesh
• Call for Discount / Price Match policy
Buy Uniview IPC6222ER-X30-B 2MP 30x IR Network PTZ Dome Camera with best Price in Bangladesh
30X Optical Zoom, Accurate and fast focusing, Smart IR, up to 150 m (492ft) IR distance. Optical glass window with higher light transmittance, IR anti-reflection window to increase the infrared transmittance. 120dB true WDR
Compression : Ultra 265,H.265, H.264, MJPEG, Embedded smart algorithm. Triple streams, Customized OSD, ONVIF Conformance, Structure: Innovative snow-removing functionality. More effective heat dissipation system
Intelligent temperature control technology. 6 KV surge protection designed for network interface
Key Features Of Uniview IPC6222ER-X30-B
■ 1/2.8″ Progressive scan CMOS
■ 2 MP
■ 4.5 ~ 135 mm (30x optical zoom)
■ Smart IR, up to 100 m (328 ft) IR distance
■ H.264/MJPEG
■ The third-generation infrared technology
■ Edge Storage : Micro SD, up to 64 GB
■ Accurate and fast focusing
■ Angle of View (H): 62.9° (wide) ~ 2.3° (tele)
■ Two way audio supported
■ IR anti-reflection window
■ Intelligent temperature control technology
■ Up to 16 patrols
■ ONVIF, IMOS,API
■ Support PoE & DC 24V power supply
Uniview IPC6222ER-X30-B Spicifications:-
|
Sensor |
1/2.8″, 2.0 megapixel, progressive scan, CMOS |
|
Lens |
4.5 ~ 135 mm , AF automatic focusing and motorized zoom lens |
|
Digital Zoom |
16 |
|
Optical Zoom |
30 |
|
Angle of View(H) |
71.7°~ 2.4° |
|
Angle of View (V) |
43.4°~1.3° |
|
Angle of View (O) |
88.2°~2.8° |
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
|
Minimum Illumination |
Colour: 0.01 lux (F1.5, AGC ON) 0 lux with IR |
|
Iris |
Auto/Manual; F1.5 ~ F4.0 |
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|
Digital noise reduction |
2D/3D |
|
S/N |
>52dB |
|
IR Range |
Up to 150 m (492 ft) |
|
Defog |
Digital Defog |
|
WDR |
120dB |
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
|
H.264 code profile |
Baseline profile, Main Profile, High Profile |
|
Frame Rate |
Main Stream: 2MP (1920*1080), Max 60fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps |
|
HLC |
Supported |
|
BLC |
Supported |
|
EIS |
Supported |
|
OSD |
Up to 8 OSDs |
|
Privacy Mask |
Up to 24 areas |
|
ROI |
Up to 8 areas |
|
Motion Detection |
Up to 4 areas |
|
Audio Compression |
G.711 |
|
Two-way audio |
Supported |
|
Suppression |
Supported |
|
Sampling Rate |
8 KHZ |
|
Edge Storage |
Micro SD, up to 128 GB |
|
Network Storage |
ANR |
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
|
Compatible Integration |
ONVIF(Profile S, Profile G), API |
|
Pan Range |
360° (endless) |
|
Pan Speed |
0.1°/s ~ 240°/s |
|
Tilt Range |
–15° ~ +90° (auto reverse) |
|
Tilt Speed |
0.1° ~ 160°/s |
|
Number of Presets |
1024 |
|
Patrol |
Up to 16 patrols, up to 32 presets per patrol |
|
Network Interface |
1 RJ45 10M/100M Base-TX Ethernet |
|
Power Supply |
24 V AC±25%, 24 V DC±25%,PoE (PSE Required) |
|
Dimensions(W×D×H) |
Ø227×359.4 mm (Ø8.9” x 14.2”) |
|
Weight |
5.28 kg (11.6lb) |
|
Working Environment |
-40°C ~ +60°C (-40°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
|
Ingress Protection |
IP66 |
|
Resolution |
2MP |
PIR Detection camera in different premises
PIR Detection camera fits in different premises like, Office area, Apartment, Small Business, Factory, Warehouse etc. Instant alert and notification system make it more effective to secure your premises.
Brands of CCTV Surveillance Camera that's we Provide:
Our diverse Team of IT professionals will Allow You to extend your Service and Installation services for all the Significant vendors and manufacturers of CCTV Surveillance Camera So in the Event That You have assigned the task to Set up the Intruder Alarm System, Then you'll be no compromising on the kind of hardware you want but Will Soon be free to choose. Some of the vendors that we have the proficiency in installing gear from include.
| • Hikvision | • AVtech | • Varito | • Dahua |
| • Mepesen | • Axis | • Bosch | • Jovision |
Choosing the right CCTV Lens
Comparison of CCTV Camera Resolution
Security camera resolution is the total number of pixels that make up an image, which is measured by the image width and height. For example, the width and height of a 2MP image are 1920 and 1080 respectively. By multiplying these two figures together, you will get 2,073,600, which is the total number of pixels contained in the image. Also, the height of an image is used to symbolize the resolution and thus, you can say 1080p resolution when talking about an image with 2 million pixels.
The most common resolution for home security camera in the market includes 2MP (1080p), 4MP (1440p), 5MP (1920p) and 8MP (4K/2160p).
Take the following security camera resolution comparison chart into account:
IP CCTV Camera Connection Diagram
An Internet Protocol camera, or IP camera, is a type of digital video camera that receives control data and sends image data via the Internet. They are commonly used for surveillance but unlike analog closed-circuit television (CCTV) cameras, they require no local recording device, only a local area network.
What is our after-sale service System?
We offer 100% guarantee on our product after sales service. We provide one year service warranty free and we provide life time service just for service fee.
What is the price of Uniview IPC6222ER-X30-B 2MP 30x IR Network PTZ Dome Camera in Bangladesh?
The latest price of Uniview IPC6222ER-X30-B 2MP 30x IR Network PTZ Dome Camera in Bangladesh is 45,000৳. You can buy the Uniview IPC6222ER-X30-B 2MP 30x IR Network PTZ Dome Camera at best price from our website or visit any of our showrooms.
We Provide Solution of Surveillance System in BD. |
|
|
|
We successfully installed Survillance System to Many Banks and corporate in Bangladesh, some of the projects are: |
||
Banks |
Corporates |
|
…Other many more Projects |
…Other many more Projects |
|
| Call for Price | No |
|---|---|
| Brand | UNIVIEW |
| case_type | PTZ |
| Extra Facility | Memory Card Slot |
| image_sensor | CMOS |
| ir_distance | >100 Meter |
| Lens Type | Motorized Lens |
| local_storage | Micro SD |
| power_supply | POE |
| resolution | 2 Mega Pixel |
| weather_protection | Both Indoor & Outdoor |
| wifi | Yes |
