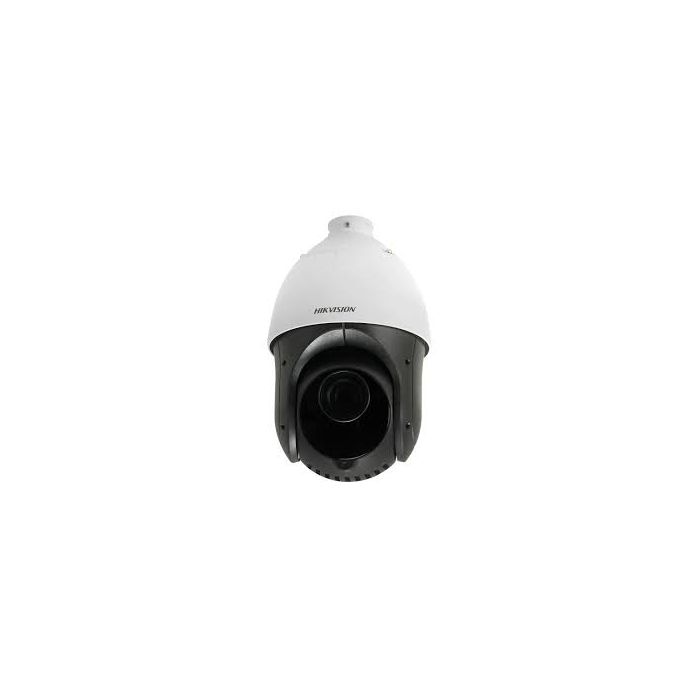

HIKVISION DS-2AE4225TI-D HD1080P Turbo IR PTZ Dome Camera

Camera

Image Sensor:

1/2.8″ Progressive Scan CMOS

Effective Pixels:

1920(H)x1080(V)

Signal System:

PAL/NTSC

Minimum Illumination:

Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 lux with IR

AGC:

Auto/Manual

BLC:

ON/OFF

WDR:

≥ 120 dB

Anti-shake:

On / Off

Shutter Time:

PAL: 1-1/10,000s
NTSC: 1-1/10,000s

Day& Night:

ICR

Digital Zoom:

16x

Privacy Mask:

8 programmable privacy masks

Auto Focus:

Auto / Semi-automatic / Manual

Lens

Focal Length:

4.8 mm to 120 mm, 25× Optical

Zoom Speed:

Approx. 3.2 s (optical, wide to tele)

Field of View:

57.6° to 2.5° (wide-tele)

Minimum Working Distance:

10 mm to 1500 mm (wide to tele)

Aperture Range:

F 1.6 to F 3.5

Pan & Tilt

Pan Range:

360°endless

Pan Speed:

Pan manual speed: 0.1° to 80°/s
Pan preset speed: 80°/s

Tilt Range:

-15°-90° (Auto Flip )

Tilt Speed:

Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s

Proportional Zoom:

Rotation speed can be adjusted automatically according to zoom multiples

Number of Preset:

256

Patrol:

10 patrols, up to 32 presets per patrol

Pattern:

5 patterns, with the total recording time no less than 10 minutes

Power-off Memory:

Support

Park Action:

Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None

PTZ Position Display:

ON/OFF

Input & Output

Video Output:

Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)

UTC function:

UTC protocol (or HIKVISION-C protocol in the previous DVR)

General

RS-485 Protocols:

HIKVISION, Pelco-P, Pelco-D, self-adaptive

Language:

English

Power Supply:

12V DC

Power Consumption:

Max.20 W (IR:7 W)

Working Temperature/Humidity:

-30 °C-65°C(-22°F-149°F)
90% or less

Protection Level:

IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection

4 Signals over 1 Coaxial Cable

HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility.* Audio input is available for some models of HDCVI cameras.

Simplicity

HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional ana-log system without replacing  existing  coaxial  cabling.  The  plug  and play approach enables full HD video surveillance without the hassle of configuring a network.

Multi-formats

The camera supports multiple video formats including HDCVI, CVBS and other two common HD analog formats in the market. The four formats can be switched over through OSD menu or by PFM820 (UTC controller). This feature makes the camera to be compatible with not only HCVRs but also most end users’ existing HD/SD DVRs.

Long Distance Transmission

HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 800m(1080P)/1200m(720P) trans-mission via coaxial cable, and up to 300m(1080P)/450m(720P) via UTP cable.**Actual results verified by real-scene testing in Dahua's test laboratory.

Smart IR

The camera is designed with microcrystalline LED IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua’s unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera.

Multi-language OSD

OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes. The OSD menu includes configurations such as backlight mode, day/night, white balance, privacy mask and motion detect. The camera supports 11 languages for OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polis
